Sharp AL-2030 Service Manual

AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 11

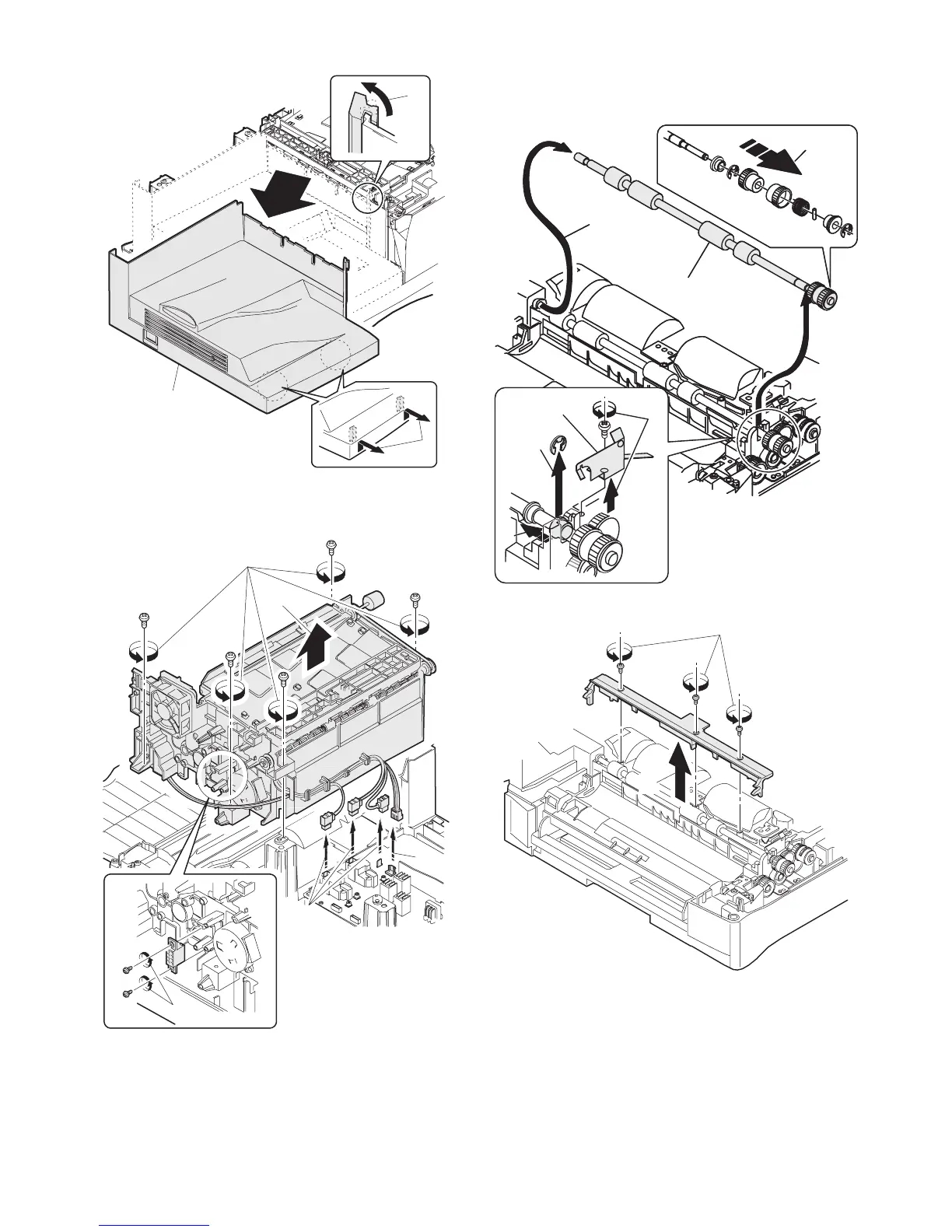

18) Remove each pawl, and remove the paper exit tray.
19) Remove two screws and remove the fusing connector.
20) Remove five screws and the connector, and lift the intermedi-
ate frame unit to remove.
21) Remove the screw and the E-ring, and remove the PS semi-
circular earth plate and the PS roller unit.
22) Remove the E-ring and remove the spring clutch from the PS
roller unit.
23) Remove three screws and remove the TC front paper guide.
2)
1)
3)
2)
2)
3)
4)
1)
5)
4)
4)
1)
2)
3)
PS roller unit
PS semi-circuler
earth plate
5)
4)
4)
1)
2)
3)
PS roller unit
PS semi-circular
earth plate
1)
2)

Sharp AL-2030 Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	16 ppm
Copy speed (black, normal quality, A4)	20 cpm
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Auto document feeder (ADF) input capacity	50 sheets
Power requirements	120 VAC +/- 10 %; 60 Hz +/- 2 %
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 98, Me, 2000, XP, Vista
Market positioning	Business
