AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 8

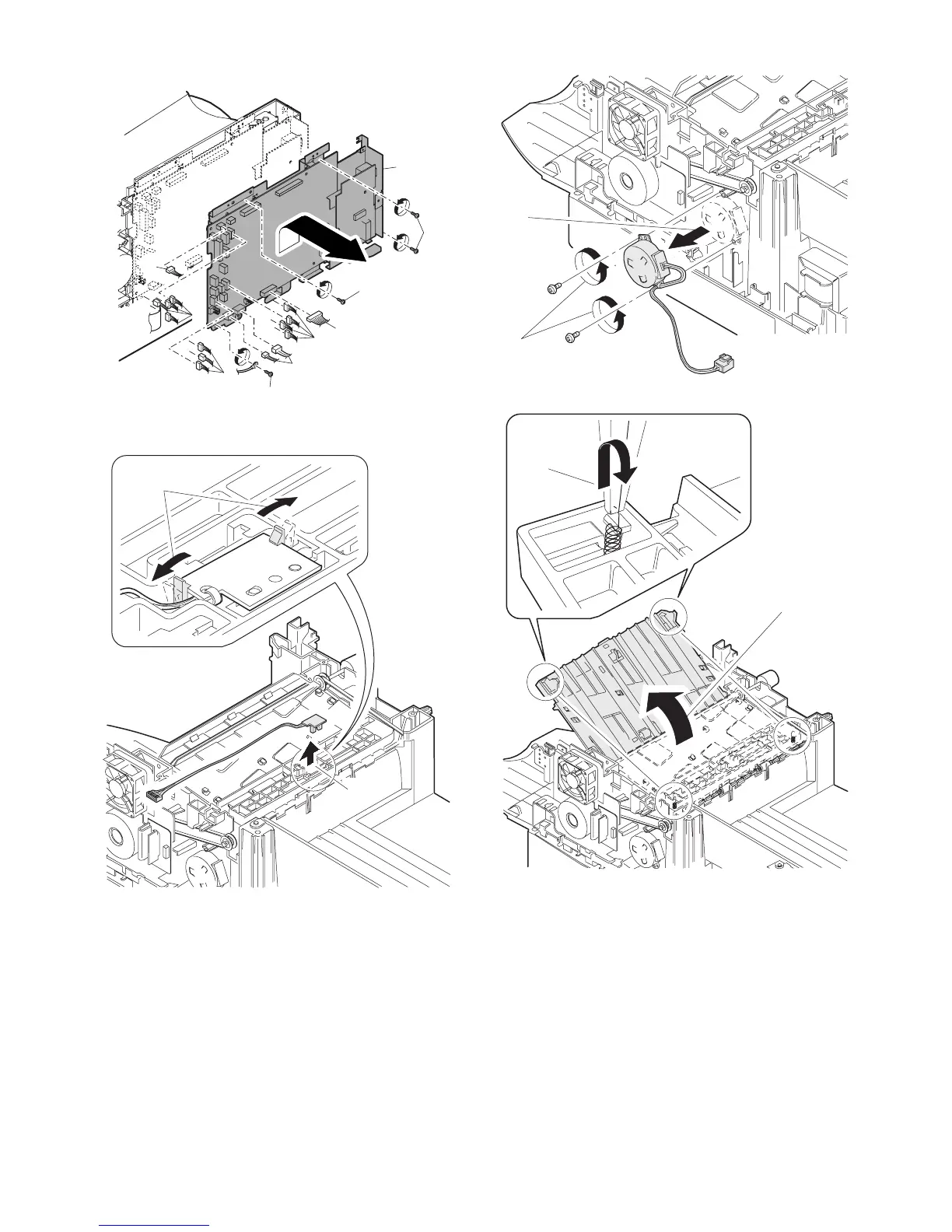

5) Remove each connector and four screws, and remove the
MCU PWB.
6) Remove the PWB insulation mylar and remove the paper
transport detection sensor (PPD2).
7) Remove two screws and remove the toner motor.
8) Remove two springs and open the intermediate frame unit.
1)
1)
1)
1)
2)
2)
3)
2)
1)
1)
2)
1)
1)
2)
1)
2)
