Sharp AL-2030 Service Manual

AL-2040CS OPERATIONAL DESCRIPTIONS 7 - 6

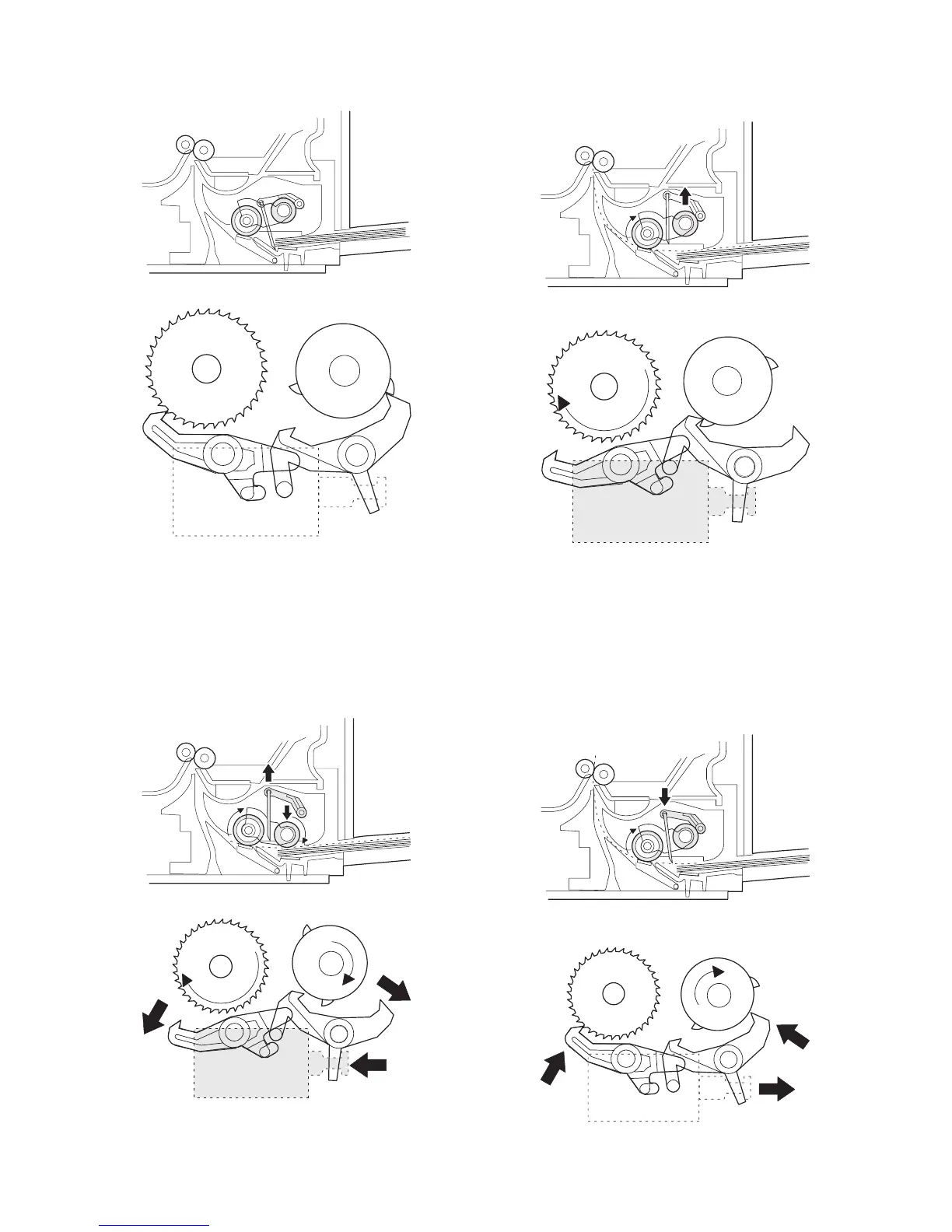

(2) Manual multi paper feed operation
1) Before paper feed operation, the manual paper feed solenoid
(MPFS) is turned OFF as shown in the figure below.
2) When the PRINT button is pressed, the manual paper feed
solenoid (MPFS) turns on to disengage the manual paper feed
latch.
A from the manual paper feed clutch sleeve A, rotating the
manual paper feed roller and the manual take-up roller. At the
same time, the manual paper feed stopper opens and the
manual take-up roller is pressed to the surface of the paper to
start paper feeding.
3) When pawl C of the manual paper feed clutch sleeve is
engaged with the manual feed latch, the manual feed stopper
falls and the manual take-up roller rises. At that time, the man-
ual paper feed roller is rotating.
4) The lead edge of the transported paper is pressed on the
resist roller by the transport roller. Then the paper is stopped
temporarily to allow synchronization with the lead edge of the
image on the OPC drum.
From this point, the operation is the same as the paper feed
operation from the tray. (Refer to 7-5 - 8.)
5) The solenoid turns off to close the gate and return to the initial
state.
OF
MPFS
F
C
A
ON
MPFS
A
C
ON
MPFS
A
C
OF
MPFS
F
A
C

Sharp AL-2030 Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	16 ppm
Copy speed (black, normal quality, A4)	20 cpm
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Auto document feeder (ADF) input capacity	50 sheets
Power requirements	120 VAC +/- 10 %; 60 Hz +/- 2 %
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 98, Me, 2000, XP, Vista
Market positioning	Business
