E-4

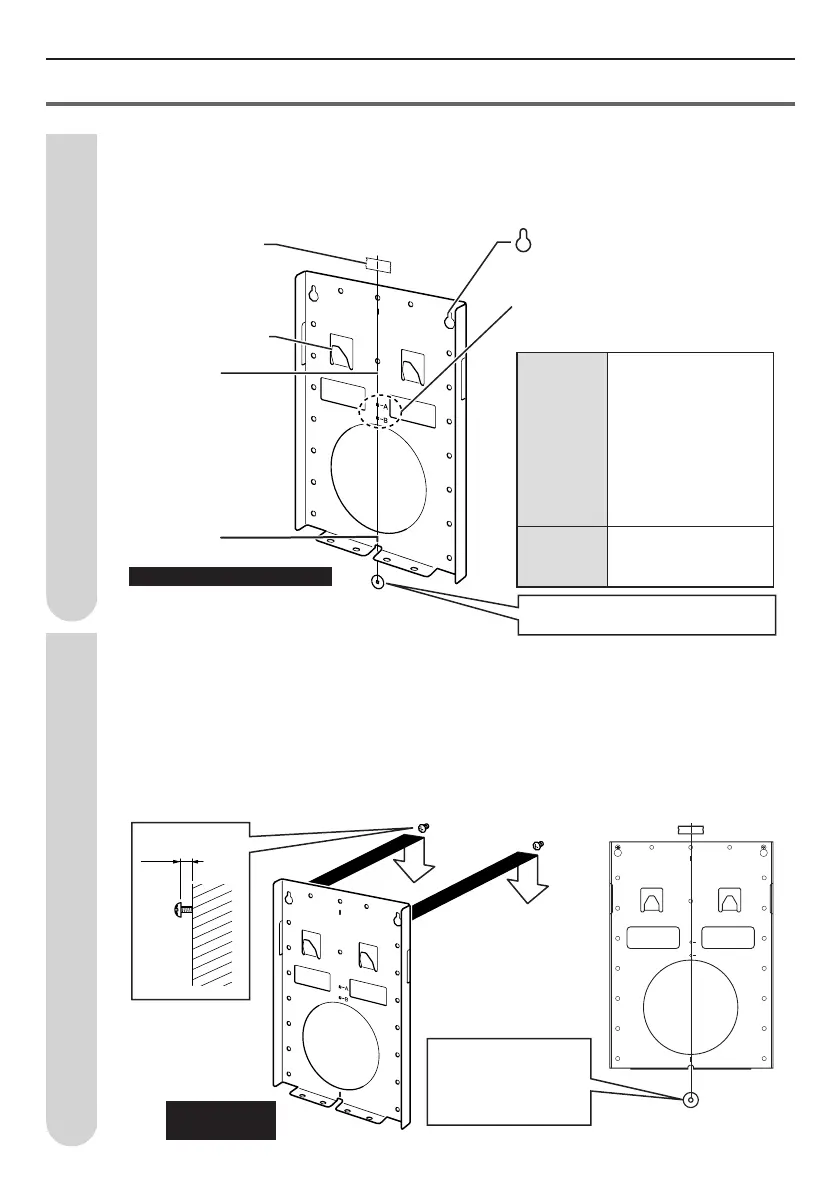

Use the weight with the
string used in Step 1 to
make sure the bracket
is perpendicular.
Min. 4mm
WallWall
Included part:
Based bracket
B
A
Cellophane tape, etc.
Wall-mount bracket
unit installation hooks
Perpendicular
reference line
Perpendicular
reference line
shaped screw holes
Use a pencil, etc., to mark the screw hole
position on the wall behind the bracket.
Display screen center position
Use this as a reference for the display
height position.
Included part: Based braclet
LC-37BD5, LC-37HV4
LC-37AD1, LC-37AD2
LC-37HV6, LC-37AA1
LC-37GD1, LC-37GD2
LC-32GD1, LC-32GD2
LC-37G4, LC-32G4
LC-37U5-B/-R, LC-37L5-B/-T
LC-37W5C/K, LC-45GD1
LC-37GD4, LC-32GD4
LC-37GD3, LC-32GD3
LC-45GX6, LC-37GD6
LC-32GD6
LC-30BV5, LC-30BV3
LC-30HV3, LC-30HV2/4
LC-30AD1, LC-30AD2
LC-30HV6, LC-30AA1
Marking A
Marking B
Align horizontally and vertically until the string
lies on top of the vertical reference line.
Determine the location where the based bracket will be installed.
Take the coin with the string and align it perpendicular to the based bracket.
Use a pencil, etc., to mark the two screw hole locations.
Wall-Mount Bracket Installation
1
2
Loosely screw in the screws.
Temporarily remove the based bracket from the wall and loosely screw in 2 off-the-shelf
screws in the screw hole positions marked on the wall. At this time, the screw heads should
extend several mm above the wall so that the based bracket can be hung on the screw
heads. Hang the based bracket on the installed screws, check to make sure the bracket is
not sagging to the left or right, and then firmly tighten the screws. Use off-the-shelf screws
to secure the remaining screw holes (14 to 18 screws).
