Installing the LCD color TV on the wall
Wall
Based bracket
Make sure the hooks are
engaged.
LCD TV
Tighten from the bottom.
Included part: M5 screws 8mm length (2 screws)
• Be sure to use 2 people when installing the LCD color TV to the based bracket.
• Be sure to perform Steps 1 and 2 below. Only performing Step 1 could result in
the display falling and injuring someone.
Caution
1
2

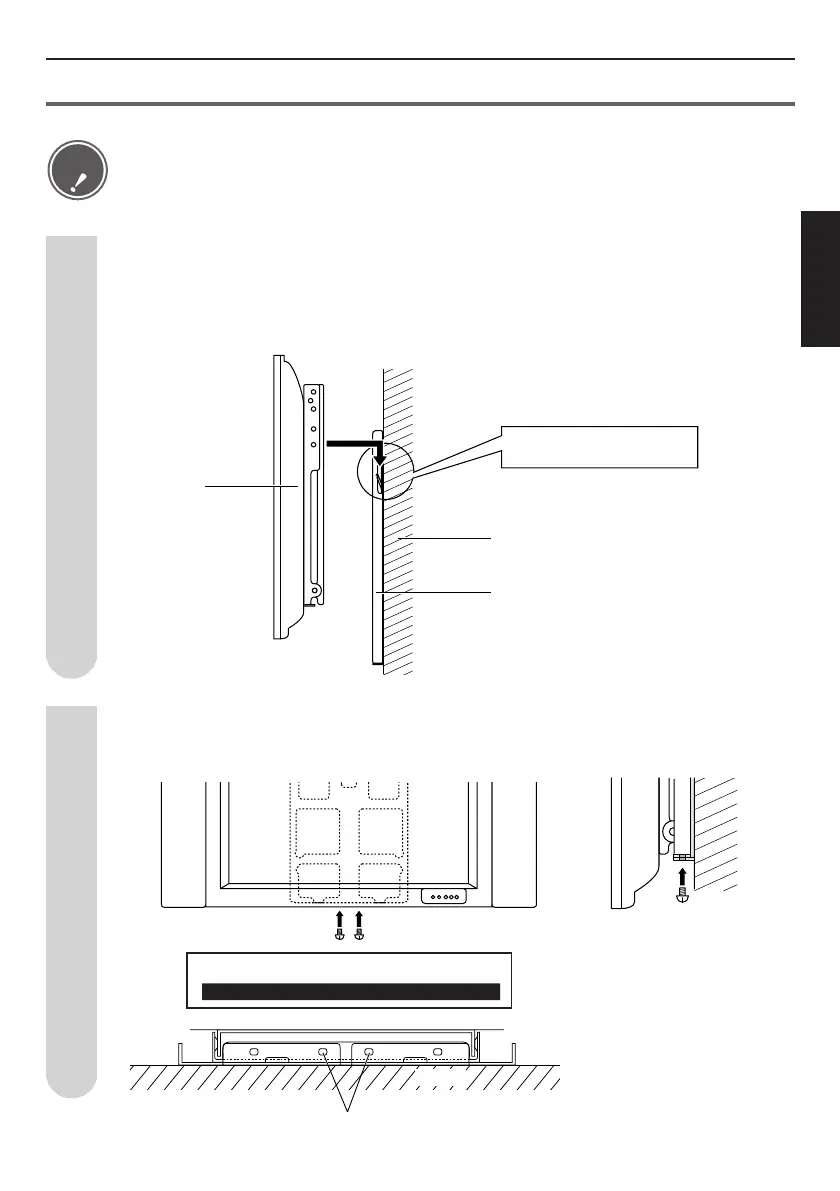

Install the wall-mount bracket attached to the LCD color TV to
the based bracket.
Hang the square holes of the wall-mount bracket on the hooks (page 4) of the based
bracket.
Tighten the wall-mount bracket and based bracket screws.
(Be sure to do this.)
These holes are used for LC-45GD1, LC-37GD1 and LC-32GD1.
