Installing the wall-mount bracket (For Model 30 inch Separate Type)
1

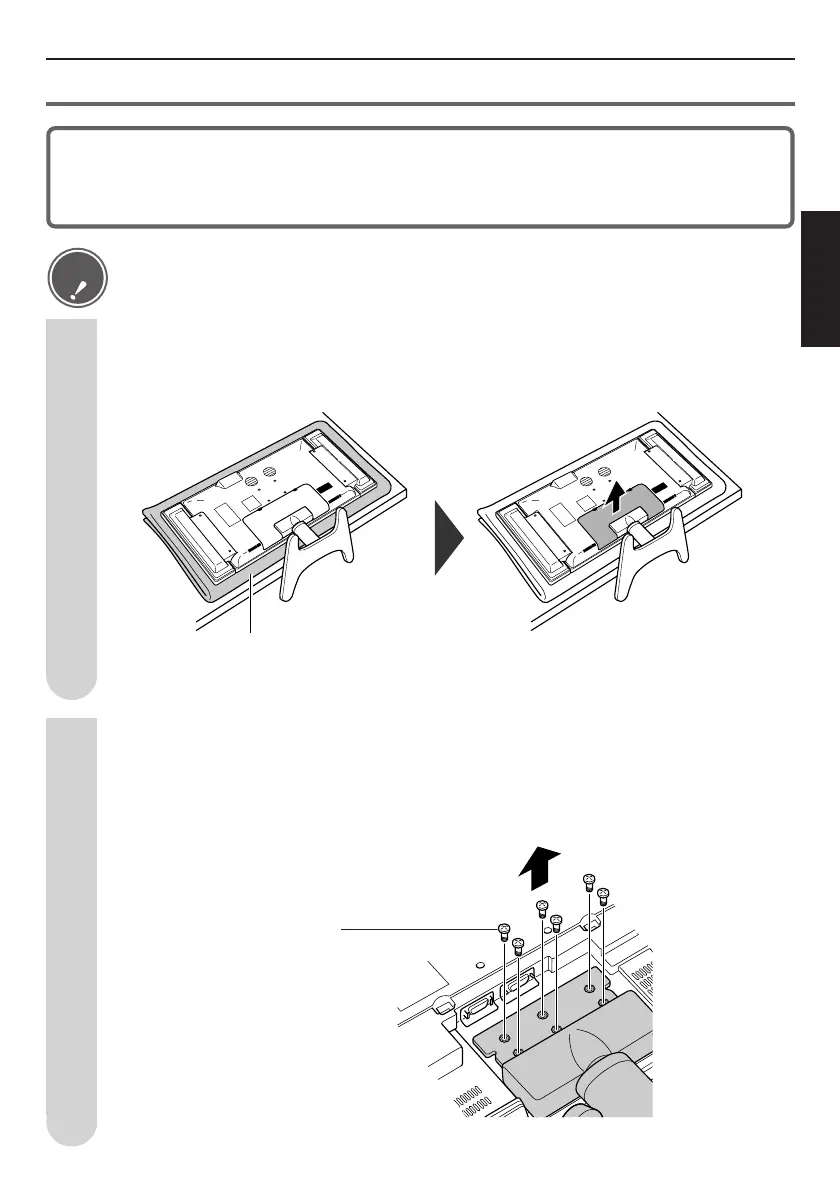

Remove the terminal cover on the back of the LCD color TV.
• When installing the wall-mount bracket to the LCD color TV, place the LCD color
TV face down on a soft cloth or cushion.
Caution
2
Remove the table stand.
Remove the screws (6 screws) fastening the table stand, and then remove the table stand.
(Remove after pulling in the direction shown by the arrow.)
The removed screws (6 screws) are used in Step 3 (Page 22).
Stand fastening
screws (6 screws)
Use the following procedures to install the Model 30 inch LCD color TV (LC-30AD1*(2),
LC-30HV2/4, LC-30HV6, LC-30AA1). The explanation is given using LC-30HV4 as an
example, but the installation procedure is also the same for LC-30AD1*(2), LC-30HV2, LC-
30HV6, LC-30AA1.
*(2) Models for which the destination market is other than Japan.
Soft cloth or cushion.
