E-26
• When using attachment
bracket BV, align it with
Mark C.
• When using attachment
bracket HV, align it with
Mark D.
Screws included in the back of
the LCD color TV.
Included part:
Wall-mount bracket
Included part:
M4 screws 12mm length (4 screws)
For attachment installation
Mark B
Mark D
Mark C
Mark B
Included part: Wall-mount bracket
(Attachment bracket HV)
(Attachment bracket BV)
(Attachment bracket HV)
(Attachment bracket BV)
Mark D
Mark C
6

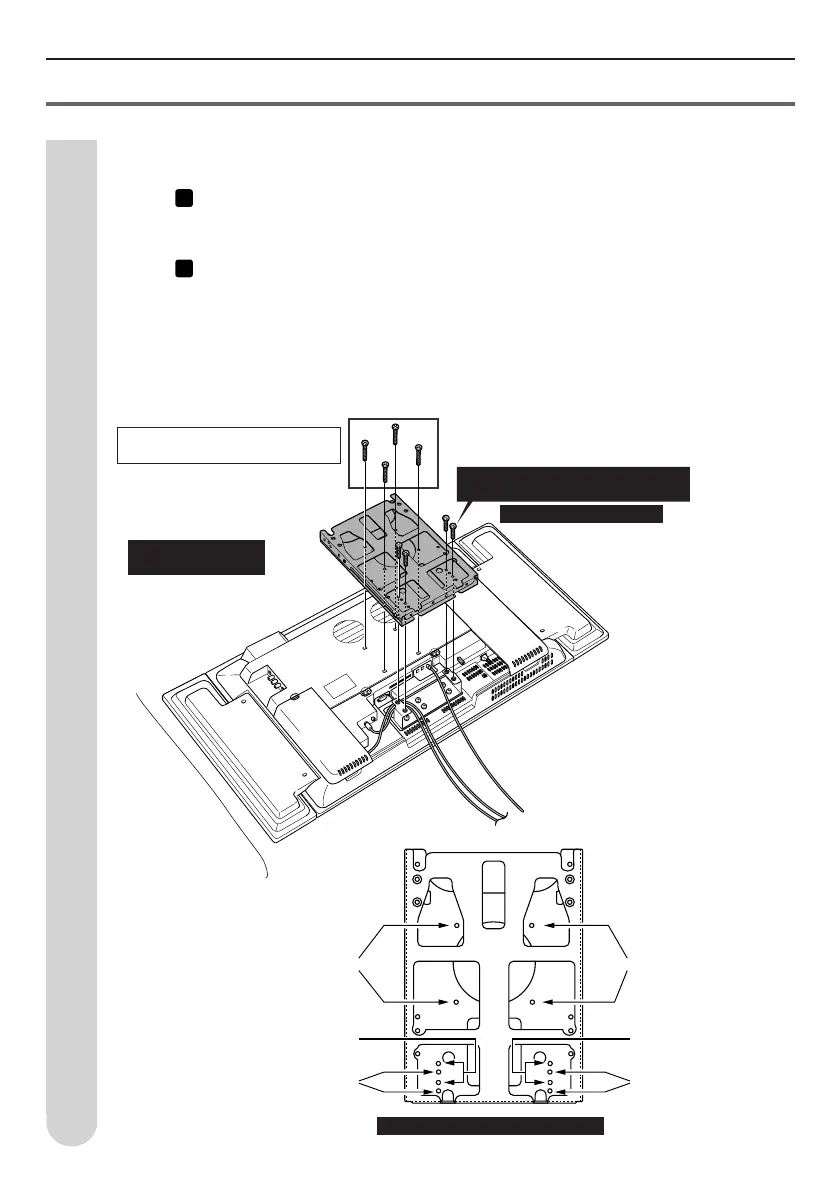

Installing the wall-mount bracket (For Model 30 inch Integrated Type) (Continued)
Installing the wall-mount bracket
Remove the 4 screws installed in the back of the unit and align the screw holes of
the wall-mount bracket (Mark B: 4 locations) with the locations from which the
screws were removed. Use the 4 removed screws to fasten the wall-mount bracket.
Align the wall-mount bracket unit screw holes (Marked “C” when using the attach-
ment bracket BV: 4 locations, marked “D” when using the attachment bracket HV: 4
locations) with the attachment bracket screws (4 locations) and fasten securely
using the 4 included attachment installation screws (M4 length: 12mm).
AN-37AG2E 04.8.10, 7:00 PMPage 26 AdobePageMaker6.5J/PPC
