12
GETTING STARTED

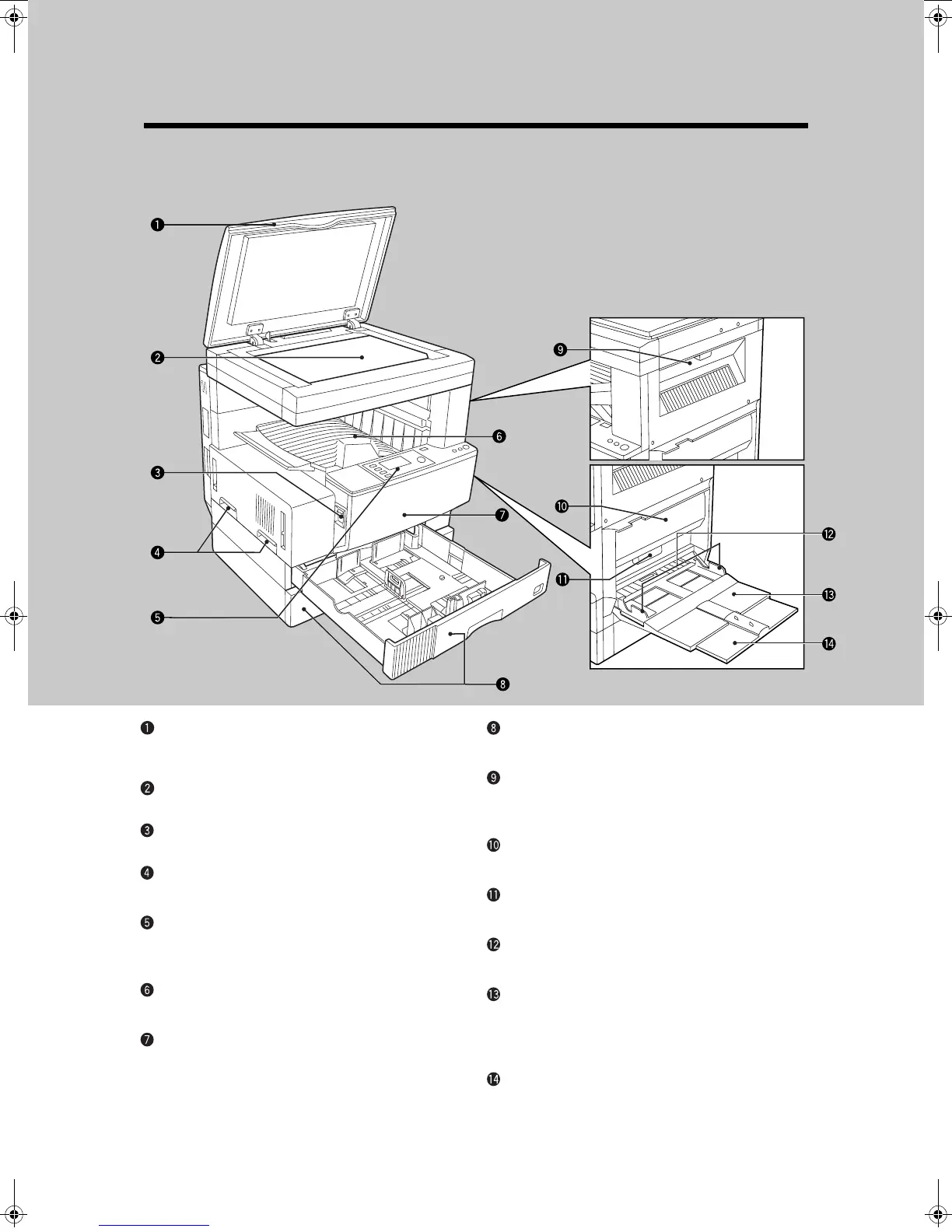

PART NAMES AND FUNCTIONS
Exterior
Platen cover (optional) (p. 24)
Place an original on the platen glass and close
the platen cover before copying starts.
Platen glass (p. 24)
Place an original to be copied here.
Power switch (p. 16)
Press to turn copier power on and off.
Handles
Use to move the copier.
Operation panel (p. 14)
All copier controls are located here for easy
operation.
Centre tray
Finished copies are deposited in the centre tray.
Front cover (p. 68)
Open to remove misfeeds and for copier
servicing.
Paper trays (p. 78)
Each tray holds 500 sheets of copy paper.
Upper exit area cover (p. 73)
Open to remove misfeeds when an optional job
separator tray kit or finisher is installed.
Side cover (p. 67)
Open to remove misfeeds.
Side cover handle (p. 67)
Pull to open the side cover.
Bypass tray paper guides (p. 37)
Adjust to the width of the copy paper.
Bypass tray (p. 36)
Paper including special paper (such as
transparency film) can be fed from the bypass
tray.
Bypass tray extension (p. 36)
Pull out when feeding large paper such as A4R,
B4 and A3 (8-1/2" x 11"R, 8-1/2" x 14" and 11"
x 17").
