Sharp AR-M550N - Paper Cooling Fan Motor 2; Fusing Cooling Fan Motor 2

: Feb. 6 2004
1
AR-M550/M620/M700 DETAILS OF EACH SECTION 6 - 154

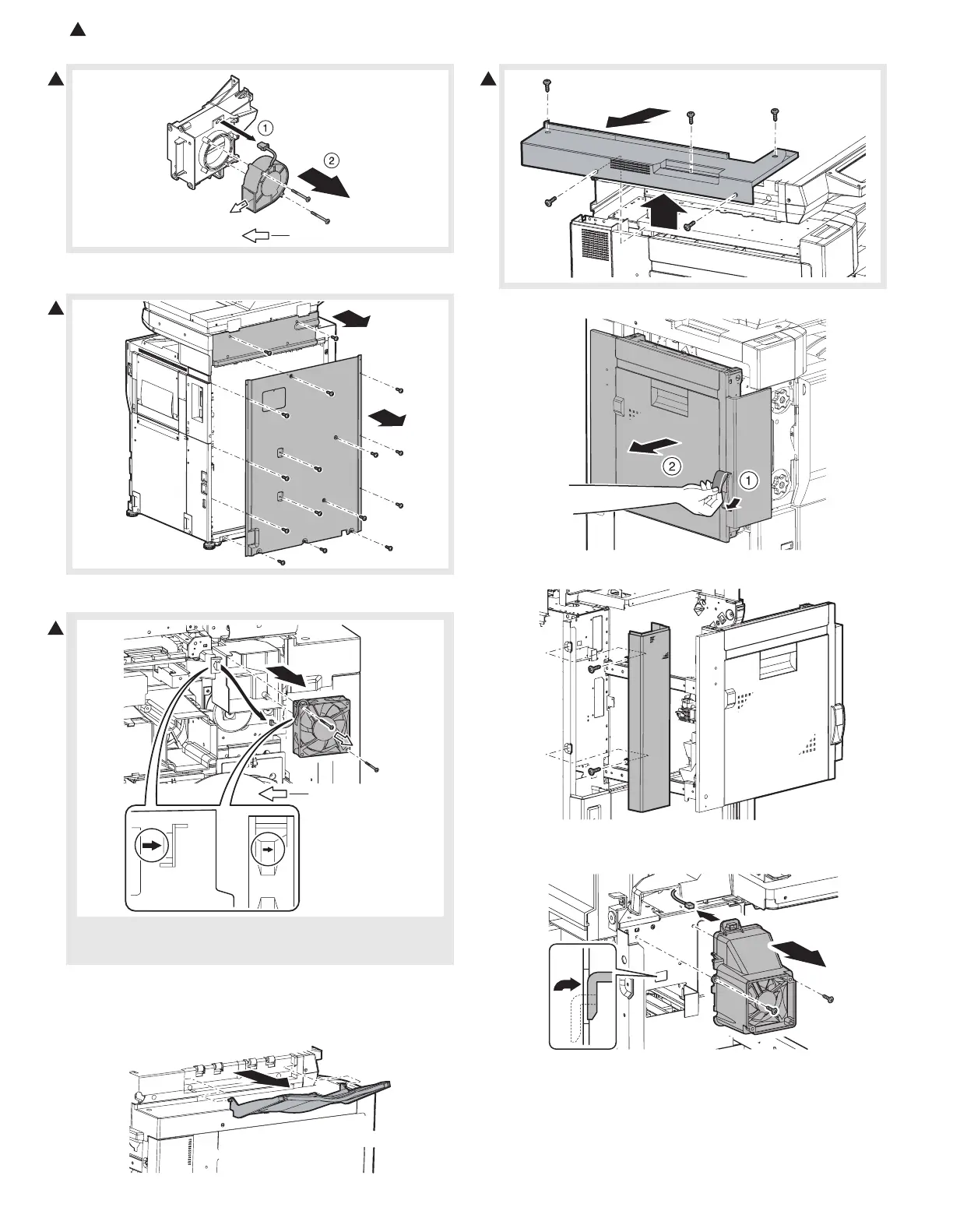

3) Disconnect the connector, and remove the DV fan.
a-2. Paper cooling fan motor 2
1) Remove the rear cabinet and the rear cabinet upper.
2) Disconnect the connector, and remove the paper cooling fan
motor.
a-3. Fusing cooling fan motor 2
1) Remove the rear cabinet. (See “a-1. Developing cooling fan motor”
in this section)
2) Remove the tray.
3) Remove the left cover cabinet.
4) Open the left door.
5) Remove the left cabinet upper.
6) Disconnect the connector, and remove the paper exit rear duct
unit.
NOTE: When installing, arrange so that the arrow mark on the side of
the duct faces in the same direction with the arrow mark on
the side of the fan.
1
Fan blowing direction
1
1
Fan blowing direction
1
