AR-M550/M620/M700 DETAILS OF EACH SECTION 6 - 9

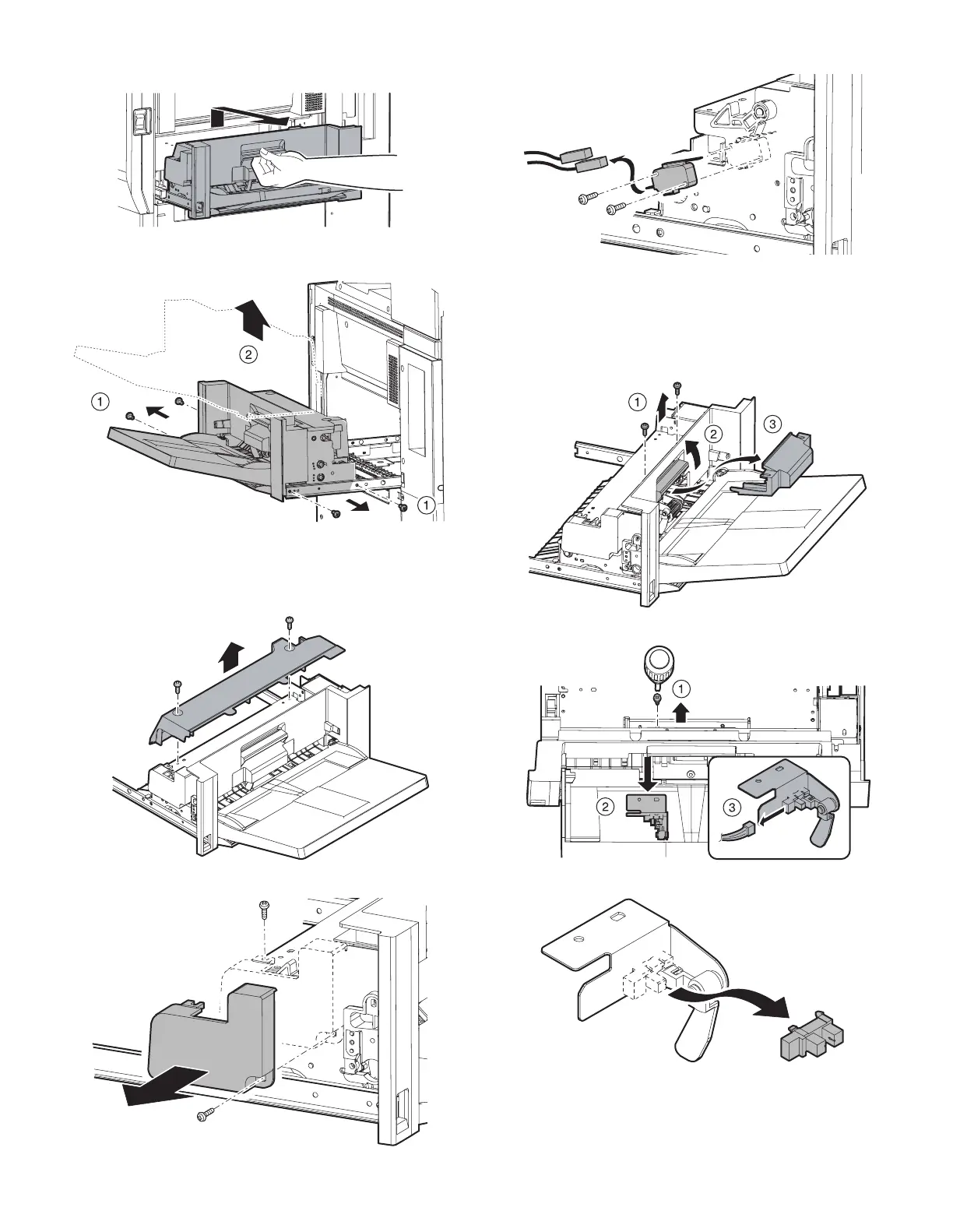

a. Multi manual paper feed tray unit
1) Pull out the multi manual paper feed tray unit.
2) Remove the multi manual paper feed tray unit from the right and
left accurides.
a-1. Manual paper feed unit open/close switch
1) Pull out the multi manual paper feed tray unit. (See “a. Multi man-
ual paper feed tray unit”)
2) Remove the manual feed upper cover.
3) Remove the manual feed front cover.
4) Remove the manual paper feed unit open/close switch.
a-2. Manual feed empty detector
1) Pull out the multi manual paper feed tray unit. (See “a. Multi man-
ual paper feed tray unit”)
2) Remove the manual feed upper cover. (See “a-1. Manual paper
feed unit open/close switch”)
3) Remove the pickup cover.
4) Remove the actuator unit.
5) Remove the manual feed empty detector.
To Next Page
