AR-M550/M620/M700 EXTERNAL VIEW AND INTERNAL STRUCTURE 5 - 14

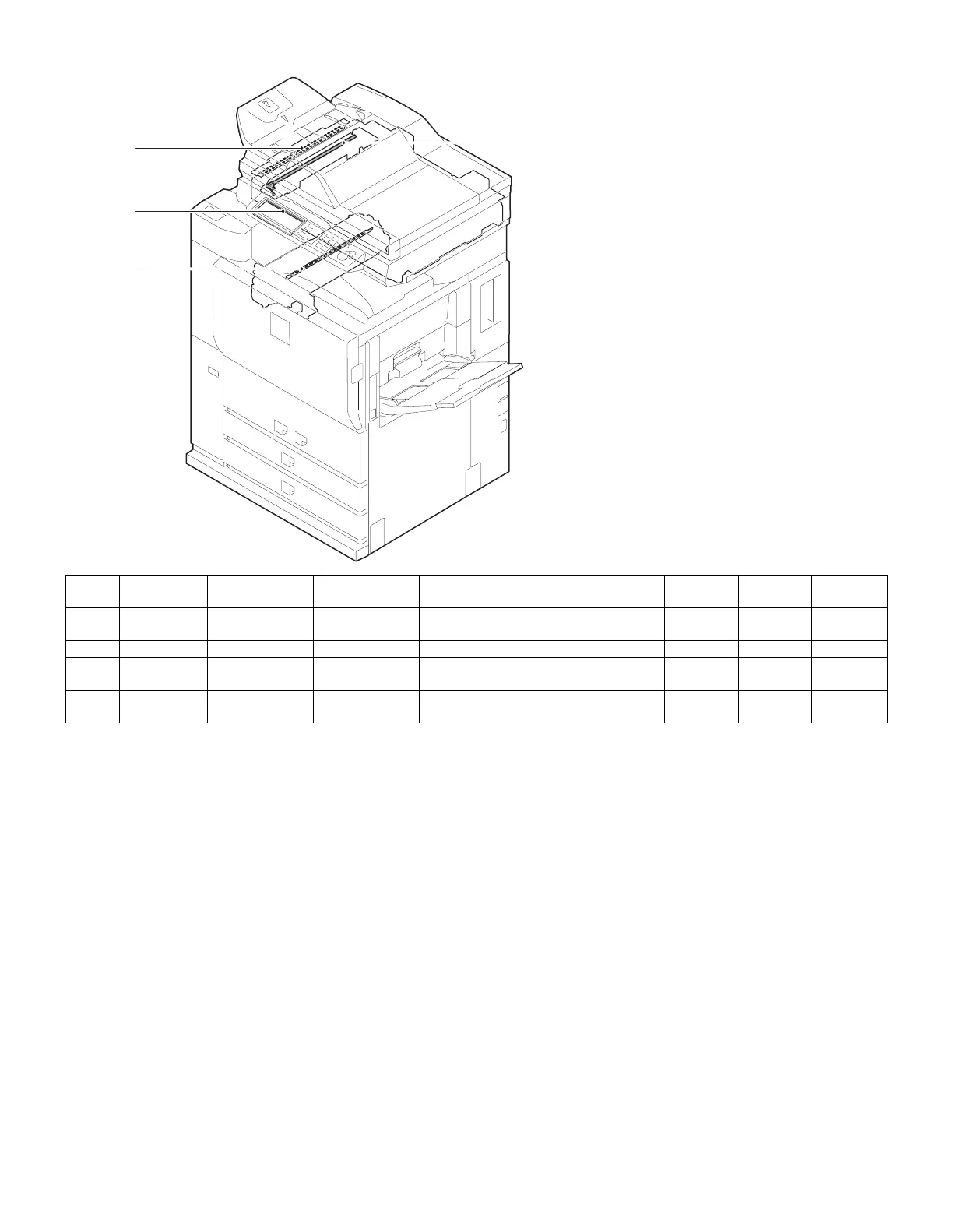

E. Lamp
Code Signal name Name Type Function/Operation
Active
condition
MODEL NOTE
CL1 CL1 Scanner lamp Xenon lamp Radiates lights onto a document for the
CCD to scan the document image.
CCFT CCFT LCD backlight CCFT cool CRT LCD backlight
DL DL Discharge lamp Lamp Discharges electric charges on the OPC
drum.
LEDCL LEDCL CIS lamp (LED) LED Radiates lights onto a document for the
CCD to scan the document image.
LEDCL
DL
CCFT
CL1
