AUTOMATIC DOCUMENT FEEDER AND DOCUMENT
GLASS
(1) Paper feed roller
This roller rotates to automatically feed the original.
(2) Document feeding area cover
Open this cover to remove an original misfeed or clean
the paper feed roller.
☞
8. TROUBLESHOOTING "REMOVING MISFEEDS"
(page 8-2)
☞
Maintenance & Safety Guide
(3) Original guides
These help ensure that the original is scanned correctly.
Adjust the guides to the width of the original.
☞ PLACING THE ORIGINAL (page 1-36)
(4) Document feeder tray
Place originals in this tray. 1-sided originals must be
placed face up.
☞ PLACING THE ORIGINAL (page 1-36)
(5) Original exit tray
Originals are delivered to this tray after scanning.
(6) Scanning area
Originals placed in the document feeder tray are scanned
here.
☞
Maintenance & Safety Guide
(7) Document glass
Use this to scan a book or other thick original that cannot
be fed through the automatic document feeder.
☞ PLACING THE ORIGINAL ON THE DOCUMENT
GLASS (page 1-38)

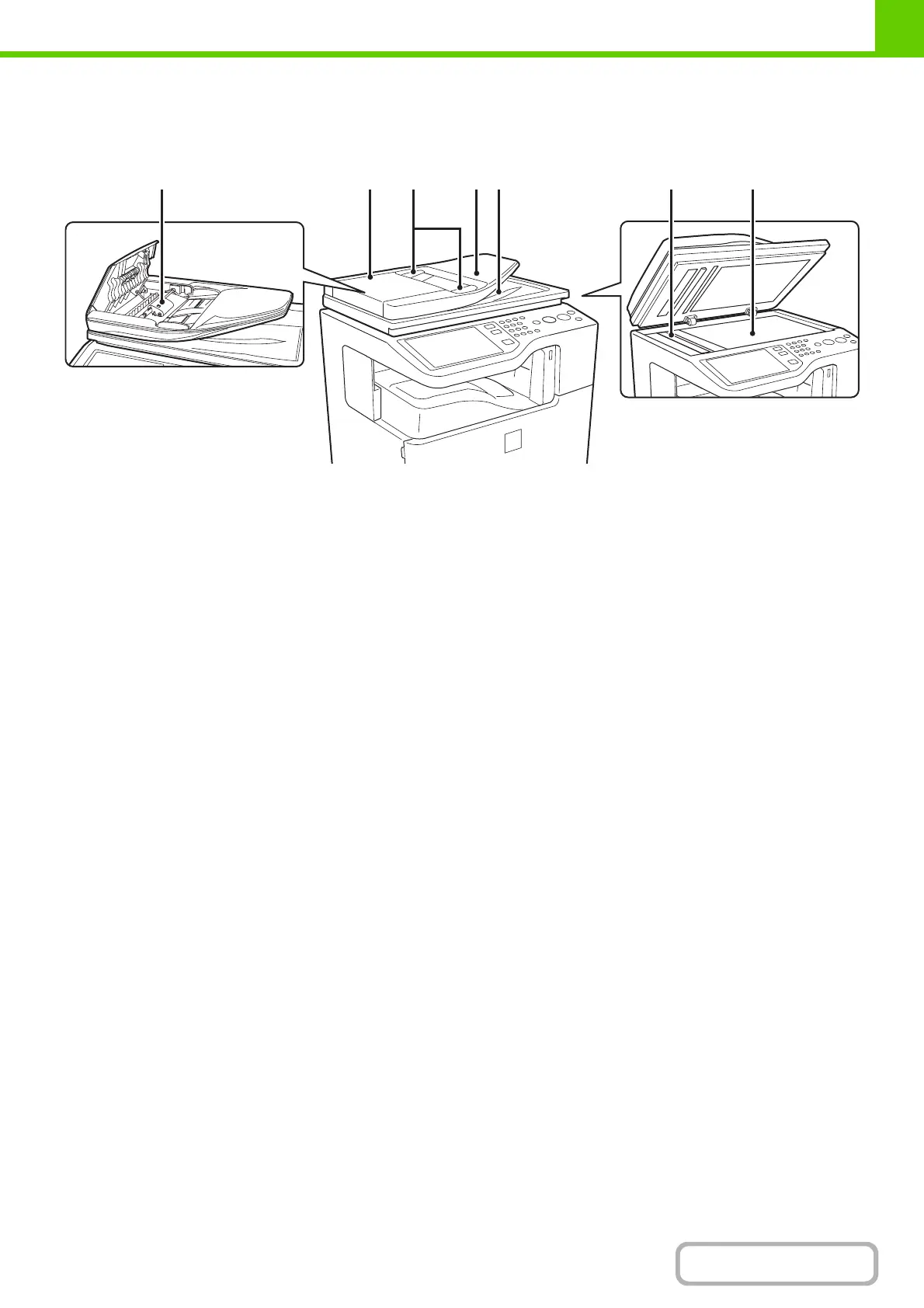

(2)(1) (3) (4) (5) (6) (7)
