MX-5111N Dehumidifying heater 3 – 5

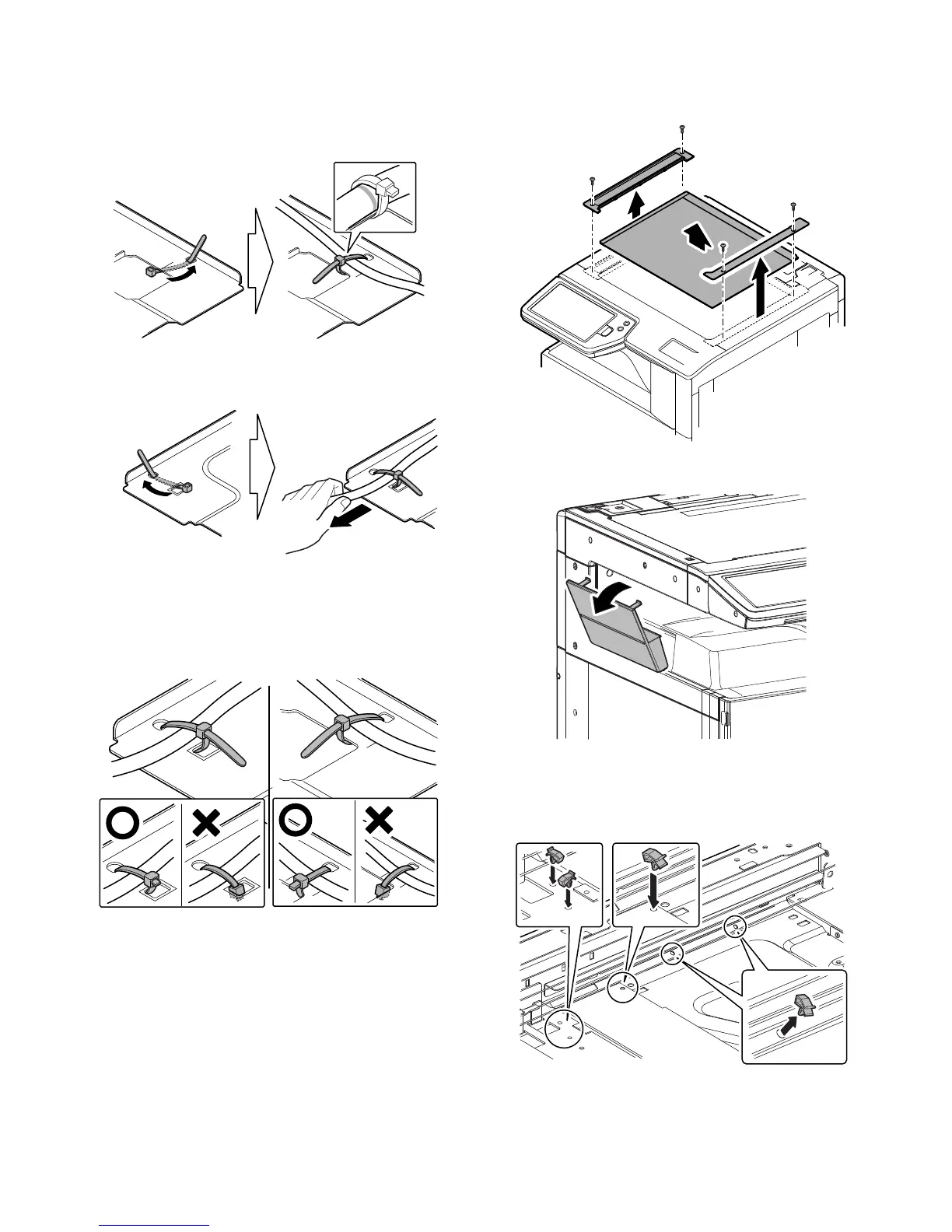

E. Installation of the scanner heater kit
(1) Assembling of the scanner heater unit
1) Secure the marking position on the harness of the scanner
heater (package part No.13) to the heater fixing plate (package
part No.14) with the banding band (package part No.15).
2) Extend the harness, and secure the other position of it with
banding band (packing part No.15).
3) Tighten the snap band and cut its tip to approx. 5 mm or less.
Slide the banding band head to the square hole (Part that is
enclosed by the mark).
NOTE: The banding band head and cut tip must not protrude
behind the heater fixing plate.
(2) Removal of the table glass, the paper exit cover
1) Remove the screw, and remove the SPF glass and the glass
holder. Remove the table glass.
2) Remove the paper exit cover.
(3) Installation of the scanner heater unit
1) Attach the clamp (package part No. 16) to the scanner frame.
NOTE: When installing, be careful to prevent damage of the wire.
To Next Page
