MX-5111N MX-FN11 (FINISHER) 14 – 9
19) Attach the front lower cover with the fixing screw.

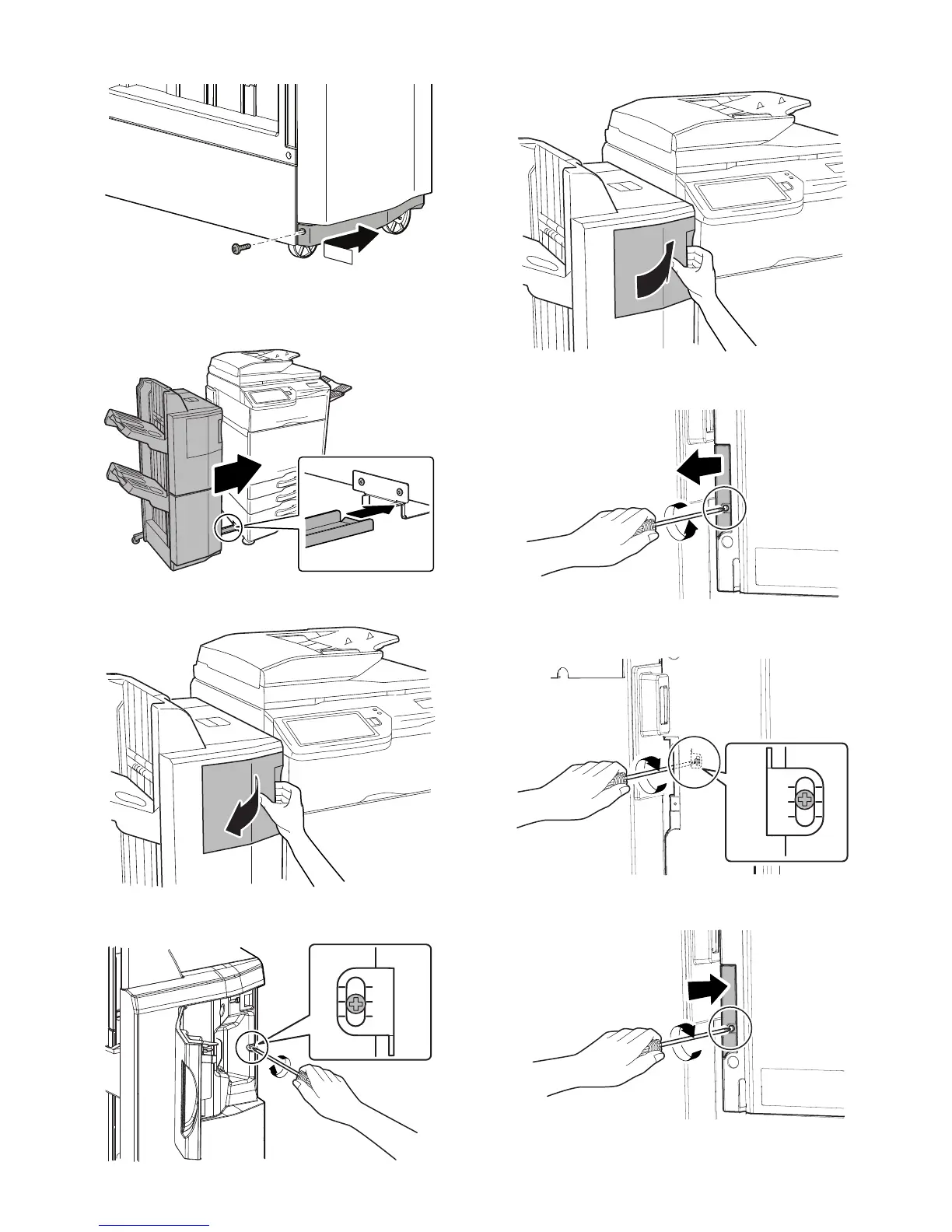

J. Connection of the finisher
1) Engage the finisher to the main unit.
2) Open the front cover of finisher.
3) Fix the finisher to the main unit with the step screw B (Packed
items).
4) Close the front cover.
5) Remove the screw, and remove the connector cover on rear
side of the finisher.
6) Install the Step screw B (Packed items).
7) Attach the connector cover on rear side of the finisher.
To Next Page
