Sharp MX-M623U Installation Manual

MX-M753N MX-LCX3N 3 – 9
[When shifted to the front side]
When the print line is shifted from the center of paper in the direc-
tion A:
Increase the value.
Then make a copy to check that the center is not shifted.
[When shifted to the rear side]
When the print line is shifted from the center of paper in the direc-
tion B:
Decrease the value.
Then make a copy again to check that the center is not shifted.
Repeat this procedure as required.
* For details of the adjustment and check procedures, refer to the
“[7] SETTING AND ADJUSTMENTS” in the Service Manual of
the main unit.

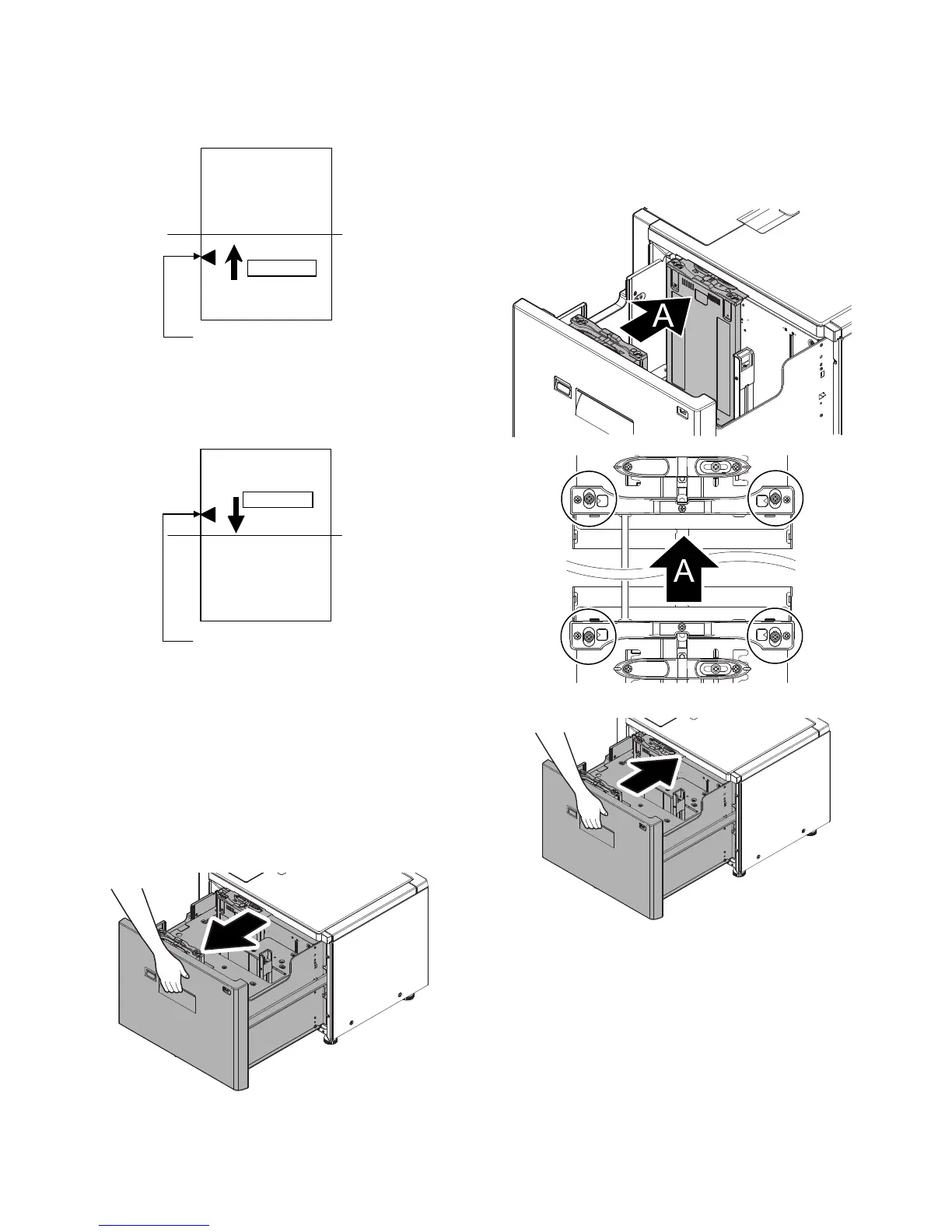

(2) Mechanical adjustment-1
Since the off-center adjustment has been made at shipping, there
is normally no need to adjust. If the center is shifted, however,
adjust with the simulation. If the shift is not recovered, perform the
following steps to adjust.
1) Slowly pull out the paper feed base tray until it stops.
[When shifted to the front side]
When shifting the print line from the paper center in the arrow direc-
tion as shown below:
2) Loosen the blue off-center adjustment screws (each 2 pcs.), and
move the side plate by the dimension shifted in the direction A
(R side), and tighten the blue screws.
NOTE: Move the side plates by the same dimension on the front
side and the rear side.
3) Push the large capacity tray slowly into the original position.
Then make a copy again to check to insure that there is no more
shifet. Repeat this procedure as required.
R side
F side
Direction A
Center line of image (first image)
(Fig. 1)
R side
F side
Direction B
Center line of image (first image)
(Fig. 2)
