MX-M753N MX-LCX3N 3 – 8

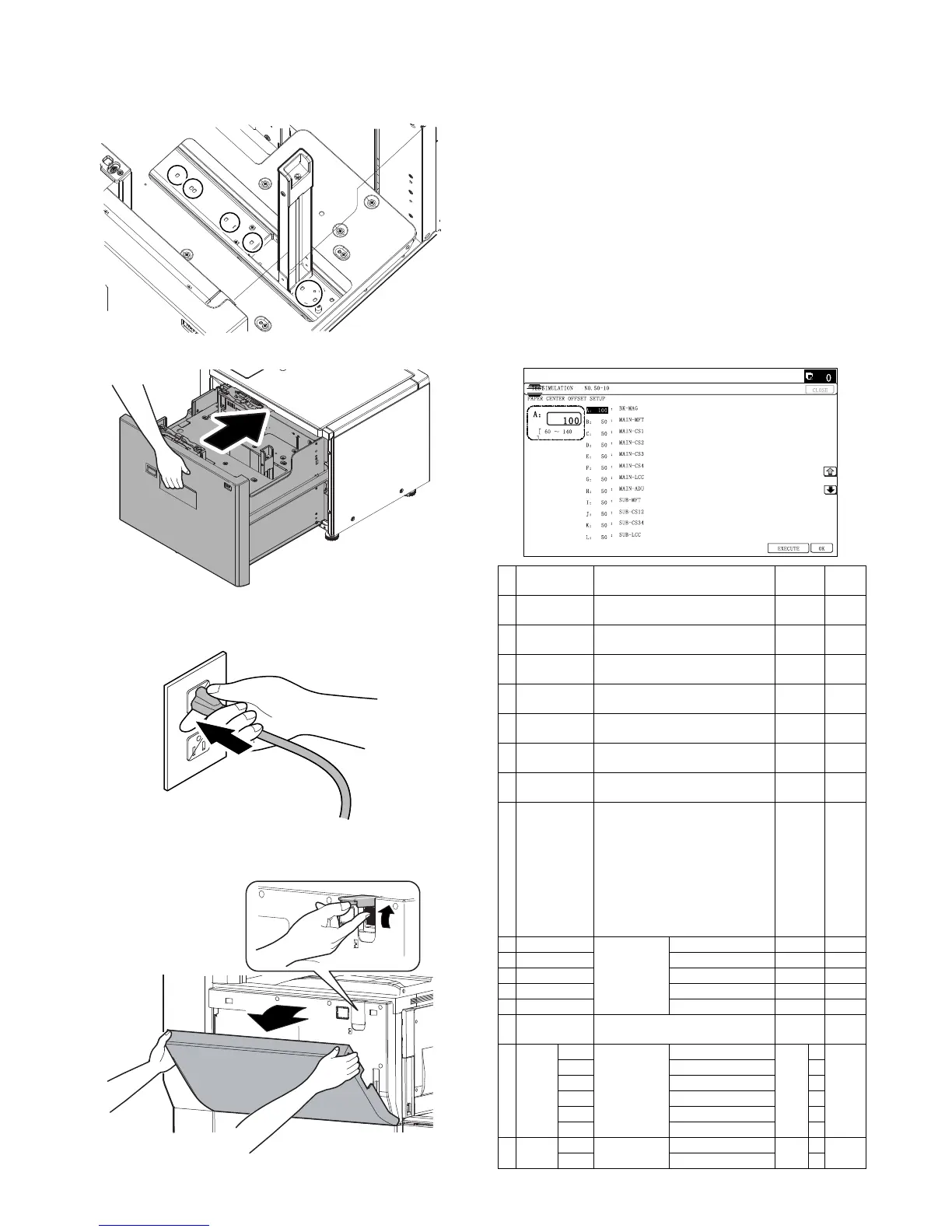

<3> Insert the lead edge of the movable shaft into the hole in
the lower section of the rear edge plate with the upper
lever, and lock the rear edge plate to the desired paper
size position.
4) Push the large capacity tray slowly into the original position.
G. Turn on the power of the main unit
1) Insert the power plug of the main unit into the power outlet.
2) Open the front cabinet.
Turn ON the power switch in the front cabinet of the main unit.
3) Turn ON the power switch on the operation panel.
H. Set the size.
1) Check to insure that the main body is standby state, and press
the [System setting] key on the operation panel.
2) Menu screen is displayed on the touch panel. Select the
[Paper Tray Settings].
3) Select the paper size of LCC from contents of [Paper Tray Set-
tings].
I. Carry out the print off center adjustment
(1) Adjustments with simulations
Since the off-center adjustment has been made at shipping, there
is normally no need to adjust. If, however, the center is shifted,
carry out the following steps to adjust.
1) Set a test chart (document) on the document table properly.
2) Execute SIM 50-10 (Print off center) by the key operation of
the main unit.
3) In SIM 50-10, the display is shown as follows to allow setting of
the print off center adjustment value for each paper feed tray.
ON
Display/Item Content
Setting
range
De-
fault
A BK-MAG Main scan print magnification ratio
BK
60 -
140
100
B MAIN-MFT Print off center adjustment value
(Manual paper feed)
1 - 99 50
C MAIN-CS1 Print off center adjustment value
(Tray 1)
1 - 99 50
D MAIN-CS2 Print off center adjustment value
(Tray 2)
1 - 99 50
E MAIN-CS3 Print off center adjustment value
(Tray 3)
1 - 99 50
F MAIN-CS4 Print off center adjustment value
(Tray 4)
1 - 99 50
G MAIN-LCC Print off center adjustment value
(LCC)
1 - 99 50
H MAIN-ADU Print off center adjustment value
(ADU)
NOTE: Before execution of this
adjustment, check to
insure that the adjustment
items A - G have been
properly adjusted. If not,
this adjustment cannot be
made properly.
1 - 99 50
I SUB-MFT Registration
motor ON
Timing
adjustment
Manual paper feed 1 - 99 50
J SUB-CS12 Standard tray 1 - 99 50
K SUB-CS34 DESK 1 - 99 50
L SUB-LCC LCC 1 - 99 50
M SUB-ADU ADU 1 - 99 50
NMULTI
COUNT
Number of print 1 - 999 1
OPA-
PER
MFT Tray
selection
Manual paper feed 1 - 6 1 2
(CS1)
CS1 Tray 1 2
CS2 Tray 2 3
CS3 Tray 3 4
CS4 Tray 4 5
LCC LCC 6
P DUP-
LEX
YES Duplex print
selection
Yes 0 - 1 0 1
(NO)
NO No 1
