MX-M753N MX-FN14 7 – 3

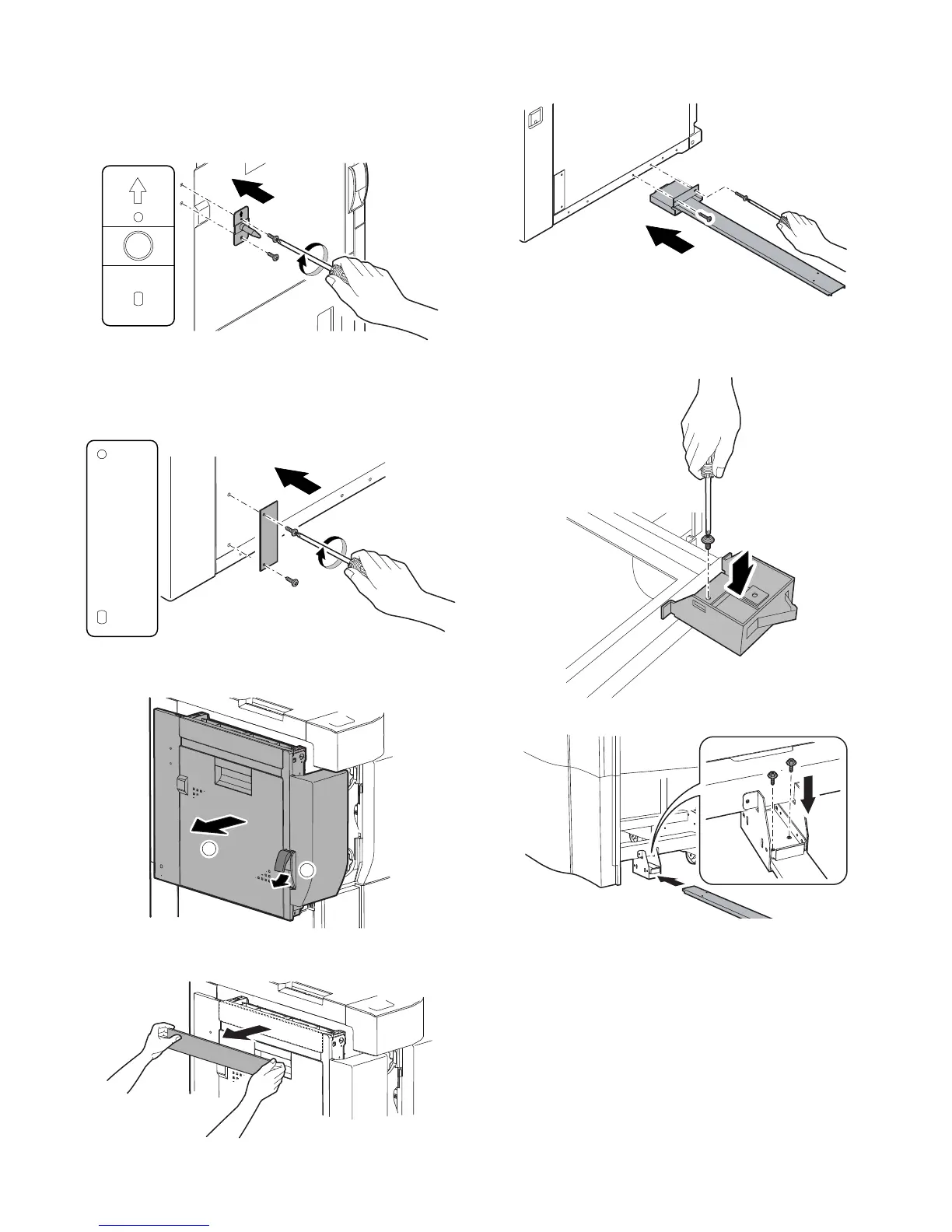

B. Attach the positioning pin and the earth plate
to the main unit
1) Attach the positioning pin with two fixing screws I to the left
upper section of the main unit. Be careful to the attachment
direction of the positioning pin.
2) Attach the earth plate with the fixing screws H (2 pcs.) to the
left lower section of the main unit.
In this case, attach so that the R mark on the earth plate faces
up.
3) Pull out the lock release lever on the left side of the main unit,
and open the left door.
4) Remove the paper exit cover on the upper side of the left door.
5) Close the left door.
6) Install the connection plate to the main unit with the fixing
screws I (2 pcs.).
C. Plate and connection plate installation
1) Install the plate to the finisher as shown in the figure, and fix it
with the fixing screw G (1 pc).
2) Install the rail and the finisher with two screws G (M4 x 6).
To Next Page
