Sharp MX-M623U Installation Manual

MX-M753N MX-PN10 8 – 3

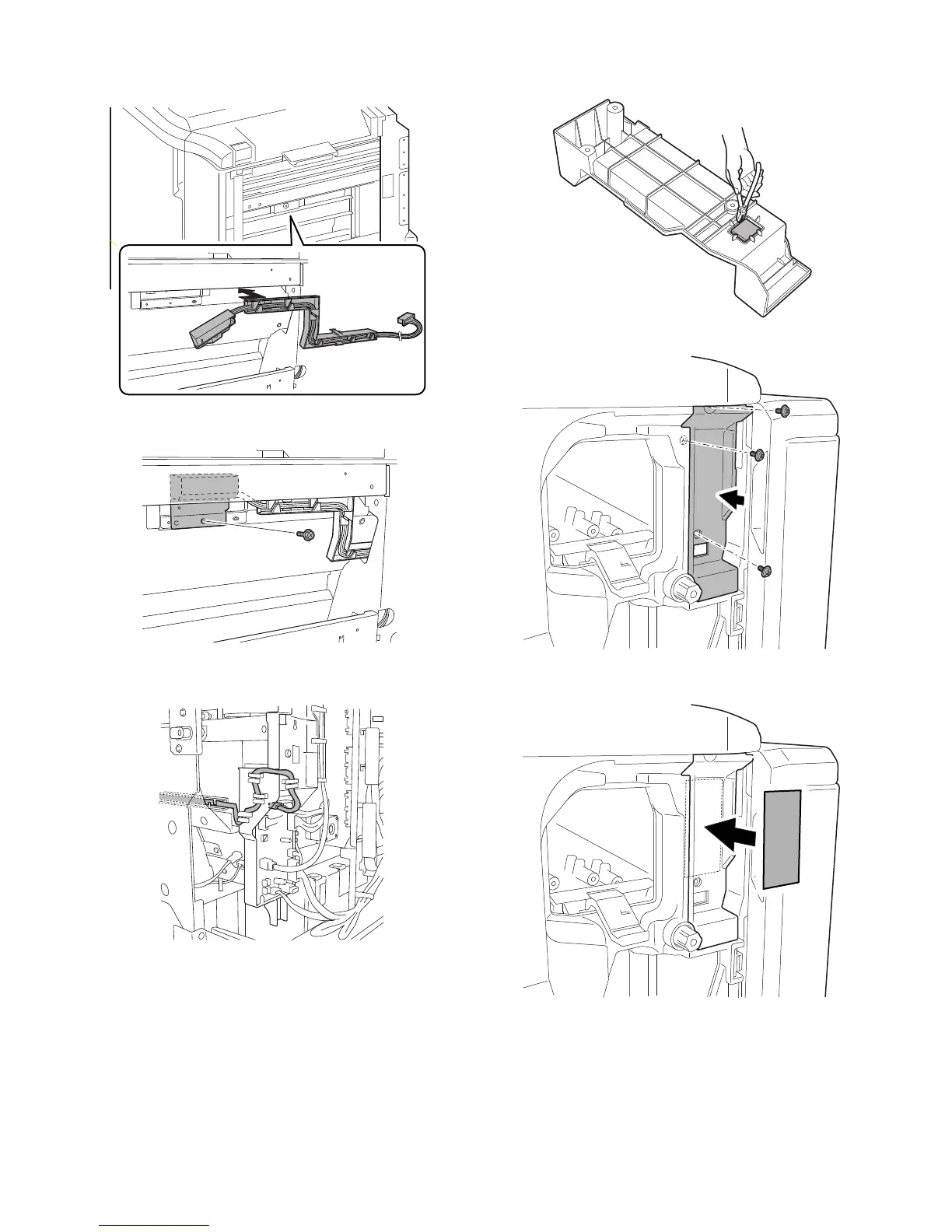

E. Installation of the punch dust sensor unit
1) Install the harness guide of the punch dust sensor unit.
2) Fix the punch dust sensor unit with the screw A.
3) Connect the connector of the punch dust sensor harness to
the punch control PWB.
F. Installation of the external outfit
1) Cut out the punch cover by using a pair of diagonal cutters.
2) Install the punch cover, and fix it with the screw.
3) Attach the punch jam process guidance label to the punch
cover.
