9
Space requirement (Top/Bottom/Left/Right)
Top 20 cm
Bottom 10 cm
Left/Right 10 cm
Behind Clearance space and surrounding
temperature should be controlled.
(refer to the next page)
Surface Consult us.
Temperature control and clearance space
Main unit, PN-ZR02(Remote-control signal receiving kit)
- Usable temperature range
0 ℃ to 40 ℃*
* Maximum temperature when video wall system is operating
- Clearance space
1. Space should be secured between front/back/
above/below/right/left of the display
2. The operating temperature must be carefully
controlled depending on the configurations of video
wall and clearance space at the back.
- Temperature of LCD surface
Under 60 ℃
Follow the requirements above when installing video wall
display.
Refer to the countermeasures and follow the installation
conditions when installing video wall. (Follow the installation
conditions for peripheral devices as well.)
Secure the space at the top/bottom/left/right/front/rear of
display regardless of wall-hanging or stand type installation.

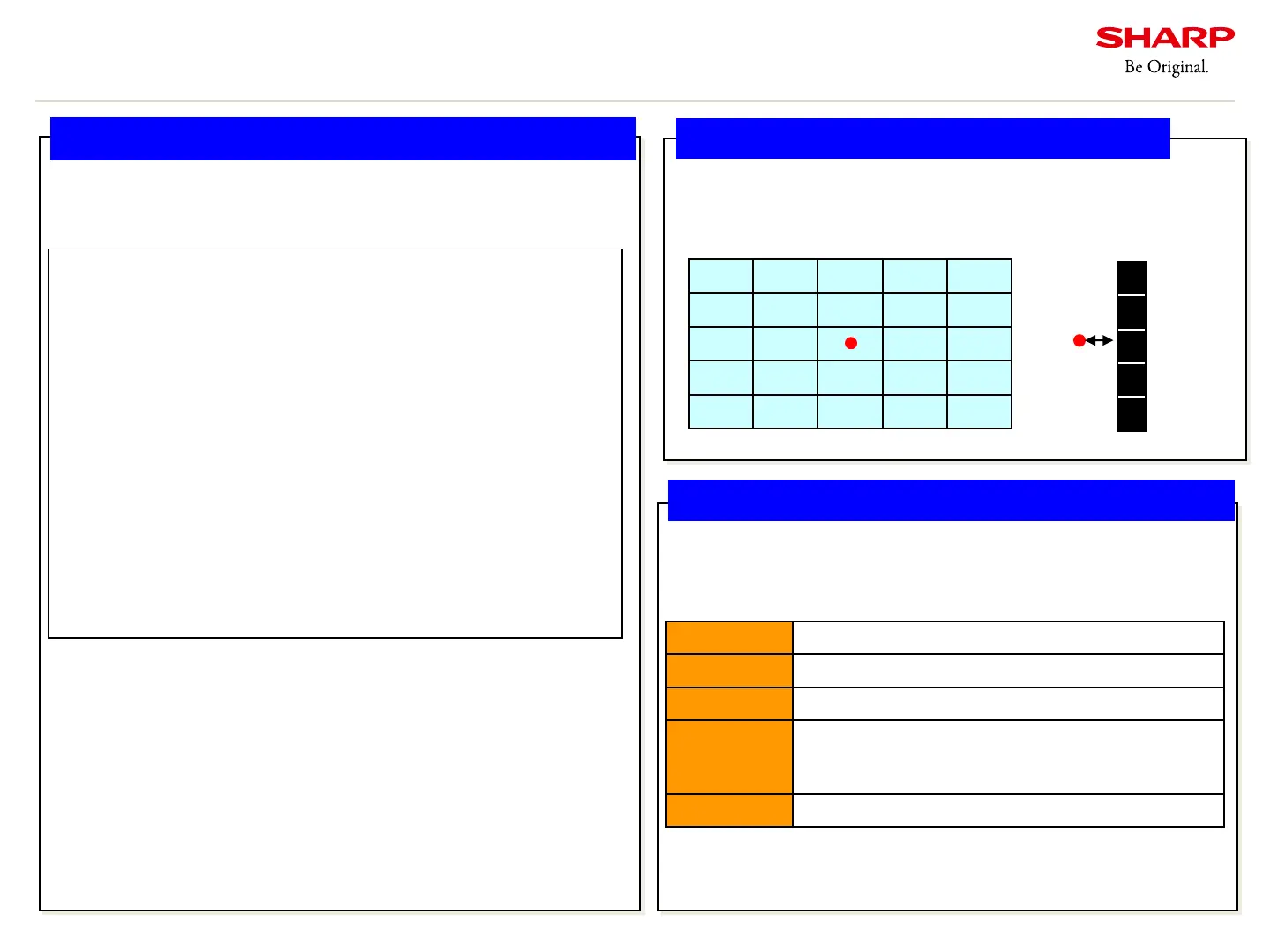

A point for measuring temperature
Measure the temperature at 1 meter away from the
center of LCD surface.
Surface of LCD video wall
1m
view
Note: Inquire us when you install displays in an environment
where surroundings are not opened such as in-wall installation.
.
2.1.Precautions for temperature and clearance space 2
