Sharp UX-41 Service Manual

FO-71RA
FO-51RA

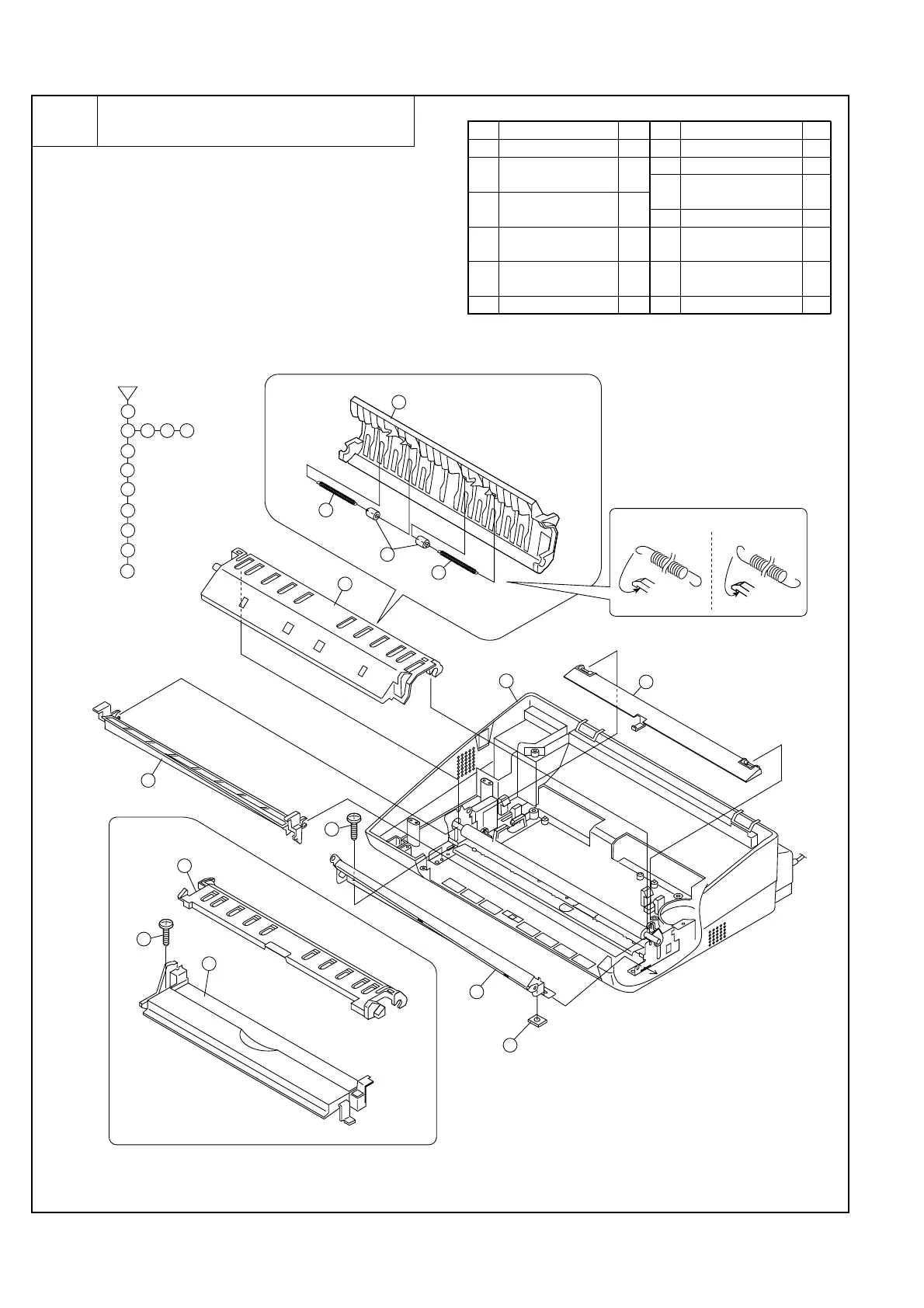

Head guide, PO guide, cutter guide
upper and cutter
Fig. 7
3 – 9
Parts list (Fig. 7)
7
1
2
3
4
4
5
1
10
11
13
6
8
9
7
2
3 4 5
7
8
9
6
Fix position
OK
NG
10
11
12
RELEA
SE
12
13
No. Part name Q’ty No. Part name Q’ty
1 Mechanism unit 1
2 Cutter guide upper 1
(FO-71 only)
3 PO guide unit 1
(FO-71 only)
4 Pinch roller spring 2
(FO-71 only)
5 Pinch roller 2
(FO-71 only)
6 PO guide (FO-71 only) 1
7 Screw (3×8) (FO-51 only) 1
8 PO guide (FO-51 only) 1
9 Release lever 1
(FO-51 only)
10 Head guide 1
11 Screw (3×6) 1
(FO-71 only)
12 Cutter cushion 1
(FO-71 only)
13 Cutter (FO-71 only) 1

Sharp UX-41 Specifications

General

Brand	Sharp
Model	UX-41
Category	Fax Machine
Language	English
