Sharp UX-41 Service Manual

FO-71RA
FO-51RA
8 – 1
CHAPTER 8. OTHERS
[1] Service tools
1. List
Extension board unit
NO. PARTS CODE DESCRIPTION Q’TY
PRICE
RANK
1 DKiT-216CSC02 Control PWB and Extension cable unit 1BP
2 PSHEZ3579SCZZ Shading wave memory standard paper 1AD
R145
(BOTTOM
SIDE)
C17
PESNS
PI2
DG1
PI1
PSNS
E
C
A
K
A
K
E
C

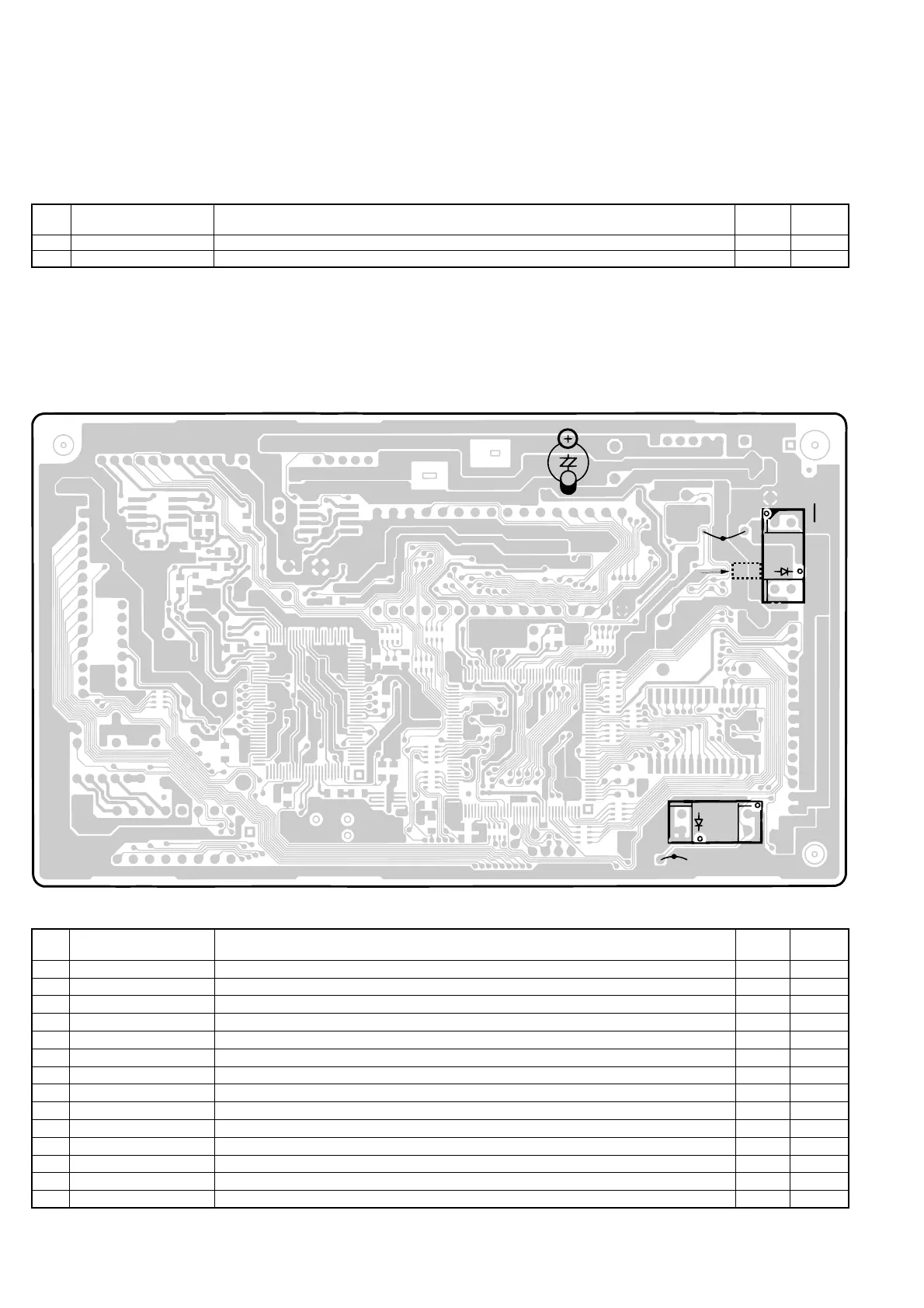

EXTENSION CONTROL PWB
1 CCNW–4756SC01 SPEAKER RELAY CABLE 1AK
2 CCNW–4758SC01 CIS RELAY CABLE 1AQ
3 QCNWG205BSCZZ HEAD RELAY CABLE 1AS
4 CCNW–4760SC01 CAM SWITCH RELAY CABLE 1AK
5 CCNW–4761SC01 FRONT SENSOR RELAY CABLE 1AK
6 CCNW–4763SC01 MOTOR RELAY CABLE 1AP
7 QCNW–4969SCZZ SENSOR RELAY CABLE 1BF
8 CCNW–274ASC01 PANEL RELAY CABLE 1AU
9 CCNW–276ASC01 DOOR SWITCH RELAY CABLE 1AH
10 CCNW–275ASC01 CUTTER RELAY CABLE 1AL
11 CPWBS3045SCS1 Extension Control PWB unit [R145 / PI1 / PI2] 1 AR
12 VRS–TS2AD102J RESISTOR
(
1/10W 1KΩ ±5%
)[
R145
]
1AA
13 VHPSG206S//–1 PHOTO TRANSISTOR
[
PI1
]
1AG
14 VHPSG206S//–1 PHOTO TRANSISTOR
[
PI2
]
1AG
NO. PARTS CODE DESCRIPTION Q’TY
PRICE
RANK
