Sharp UX-41 Service Manual

1 – 2
FO-71RA
FO-51RA

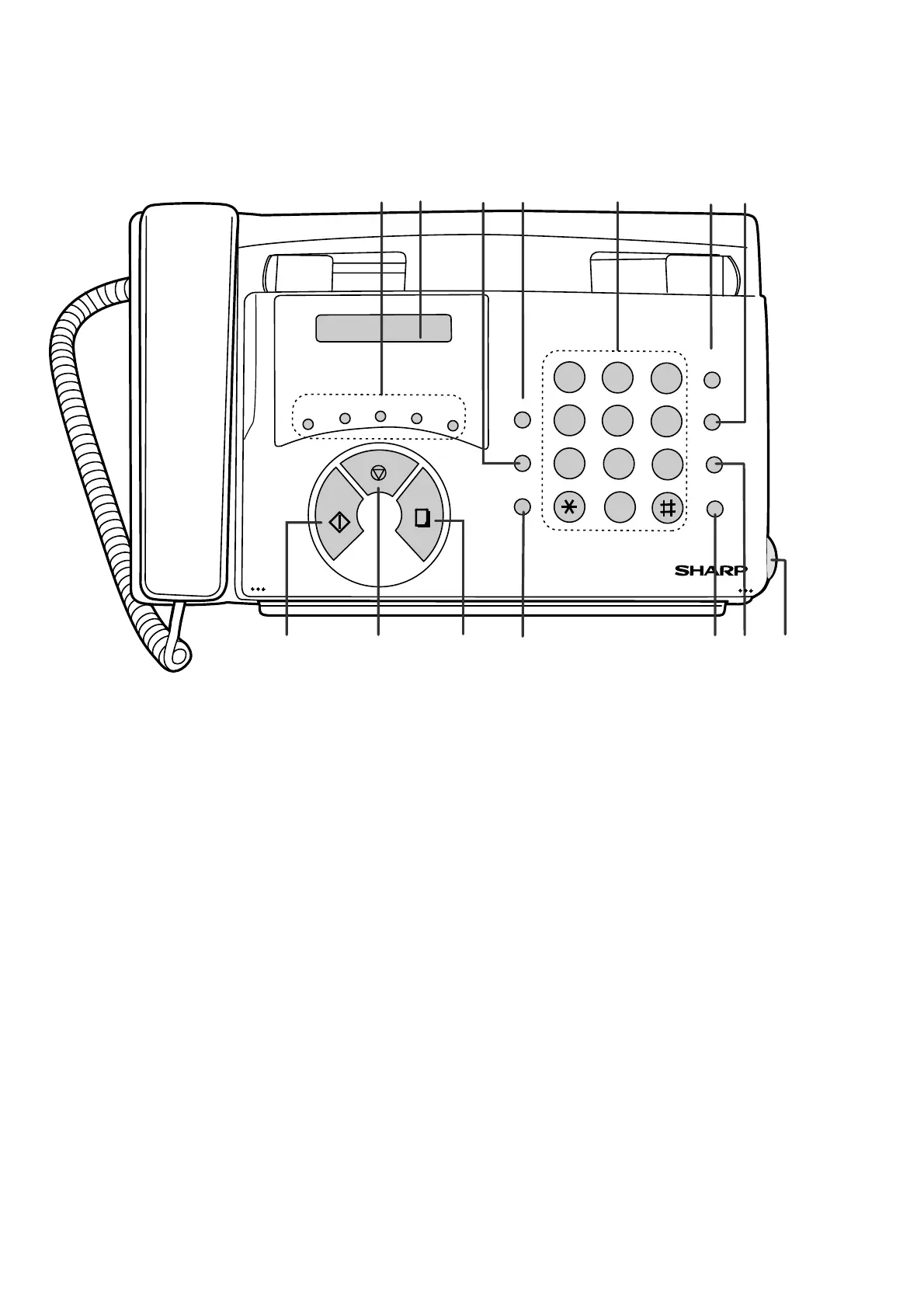

[2] Operation panel
1. Rapid Dial keys
Press one of these keys to dial a fax number automatically.
2. Display
This displays messages to help you operate the machine.
3. FUNCTION key
Press this key to select various special functions.
4. VOLUME keys
Press this keys to adjust the volume of the speaker when
the SPEAKER key has been pressed, the volume of the
ringer at all other times.
5. Number keys
Use these keys to dial numbers, and enter numbers and
letters when storing auto-dial numbers.
6. SPEED DIAL key
Press this key to dial a fax or voice number using an
abbreviated 2-digit Speed Dial number.
7. REDIAL key
Press this key to automatically redial the last number
dialed.
8
. START key
Press this key to begin transmission when using Speed
Dialing, Direct Keypad Dialing, or Normal Dialing.
9. STOP key
Press this key to cancel operation before it is completed.
10. COPY/HELP key
When a document is in the feeder, press this key to make
a copy. At any other time, press this key to print out the
Help List, a quick reference guide to the operation of your
fax machine.
11. RESOLUTION/RECEPTION MODE key
When a document is in the feeder, press this key to adjust
the resolution for faxing or copying. At any other time,
press this key to select the reception mode (an arrow in the
display will point to the currently selected reception mode).
12. SPEAKER key
Press this key to listen to the line and fax tones through the
speaker when faxing a document.
Note: This is not a speakerphone. You must pick up the
handset to talk with the other party.
13. HOLD/SEARCH key
Press this key to search for an auto-dial number, or, during a
phone conversation, press this key to put the other party on
hold.
14. Panel release
Grasp this finger hold and pull toward you to open the
operation panel.
8
1 4 5 62 3
7
11109
12
13 14
TEL FAX
RECEPTION
MODE
RESOLUTION FUNCTION
DOWN VOLUME UP
A.M.
SPEED DIAL
REDIAL
SPEAKER
01
02
03
04
05
06
07
08
09
10/POLL
ABC
DEF
JKL
MNO
GHI
TUV
WXYZ
PQRS
START
STOP
COPY/HELP
HOLD/SEARCH
TEL FAX
GHI
PQRS
JKL
ABC
DEF
MNO
WXYZ
TUV
A
B
C
D
E/
STOP
COPY/
HELP
START
FUNCTION
VOLUME
SPEED
DIAL
REDIAL
HOLD/
SEARCH
SPEAKER
RESOLUTION/
RECEPTION MODE
1
2 3
65
4
7
8
9
0
2
TEL/FAX A.M.
POLL
