1 4
FO-71RA
FO-51RA

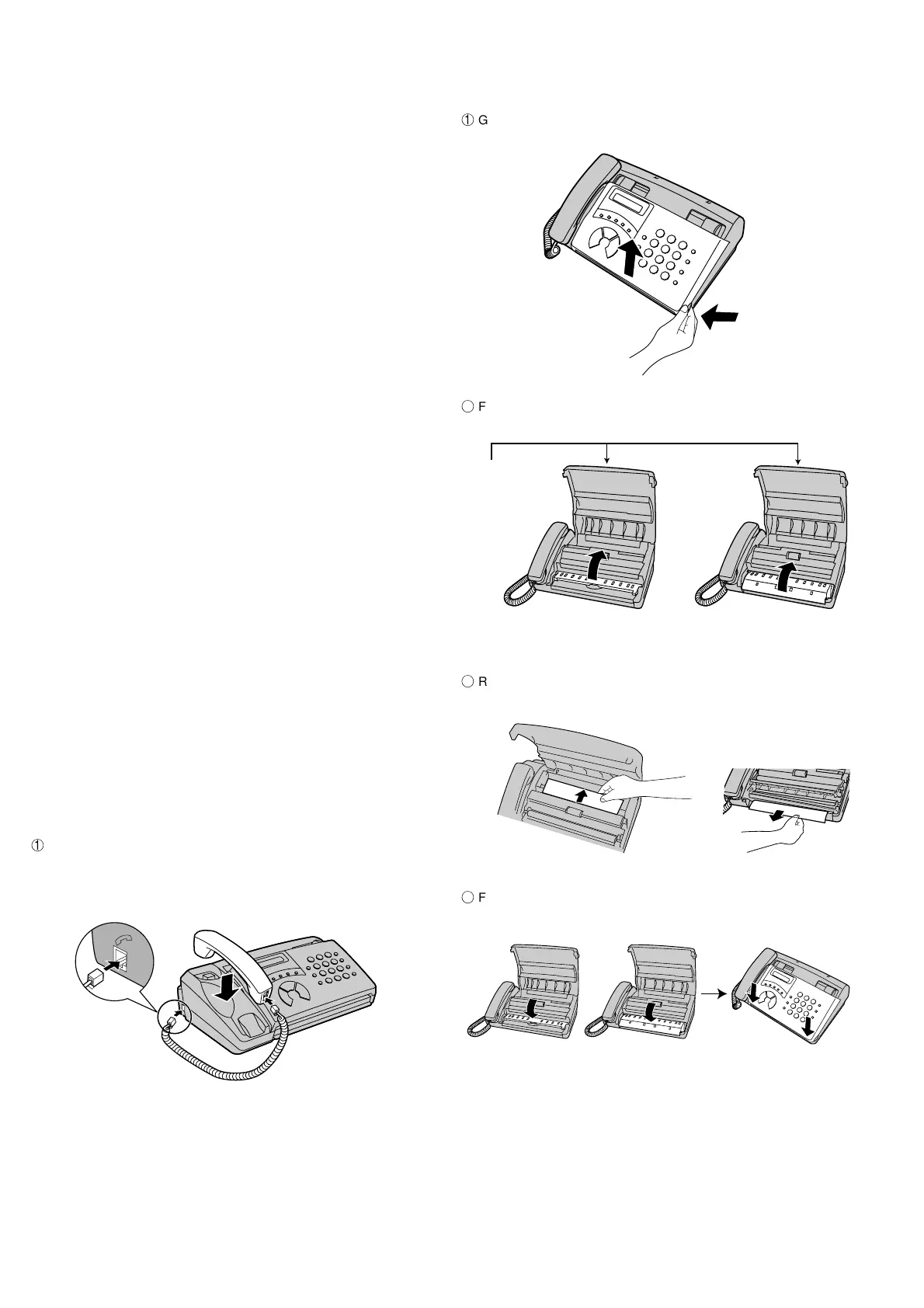

2. Connections
1. Connecting the handset
1
Connect the handset as shown and place it on the handset rest.
The ends of the handset cord are identical, so they will go into
either socket.
[4] Installation
1. Site selection
Take the following points into consideration when selecting a site for this
model.
ENVIRONMENT
The machine must be installed on a level surface.
Keep the machine away from air conditioners, heaters, direct sun-
light, and dust.
Provide easy access to the front, back, and sides of the machine. In
particular, keep the area in front of the machine clear, or the original
document may jam as it comes out after scanning.
The temperature should be between 5° and 35°C.
The humidity should be between 30% and 85% (without conden-
sation).
ELECTRICITY
220-240 V, 50/60 Hz, earthed AC (2-prong) outlet.
Caution!
Connection to a power source other than that specified will cause
damage to the equipment and is not covered under the warranty.
If your area experiences a high incidence of lightning or power surges,
we recommend that you install a surge protector for the power and
telephone lines. Surge protectors can be purchased at most telephone
specialty stores.
If the machine is moved from a cold to a warm place...
Condensation may from on the reading glass if machine is moved from
a cold to a warm place, this will prevent proper scanning of documents
for transmission. Turn on the power and wait approximately 2 hours be-
fore using machine.
TELEPHONE JACK
A standard telephone jack must be located near the machine.
This is the telephone jack commonly used in most homes and offices.
Plugging the fax machine into a jack which is not an jack may result
in damage to the machine or your telephone system. If you do not
know what kind of jack you have, or need to have one installed, con-
tact the telephone company.
Make sure the handset cord
goes into the socket marked
with a handset symbol on the
side of the machine!
Use the handset to make ordinary
phone calls, or to transmit and receive
faxes manually.
2. Removing the packing paper
1
Grasp the finger hold and open the operation panel.
Note: Do not
peel off or
bend this
strip of film.
FO-51
FO-71
2
Flip up the front paper guide.
3
Remove the packing paper.
FO-51
FO-71
FO-51
FO-71
4
Flip down the front paper guide and then close the operation panel.
