Sharp UX-41 Service Manual

FO-71RA
FO-51RA

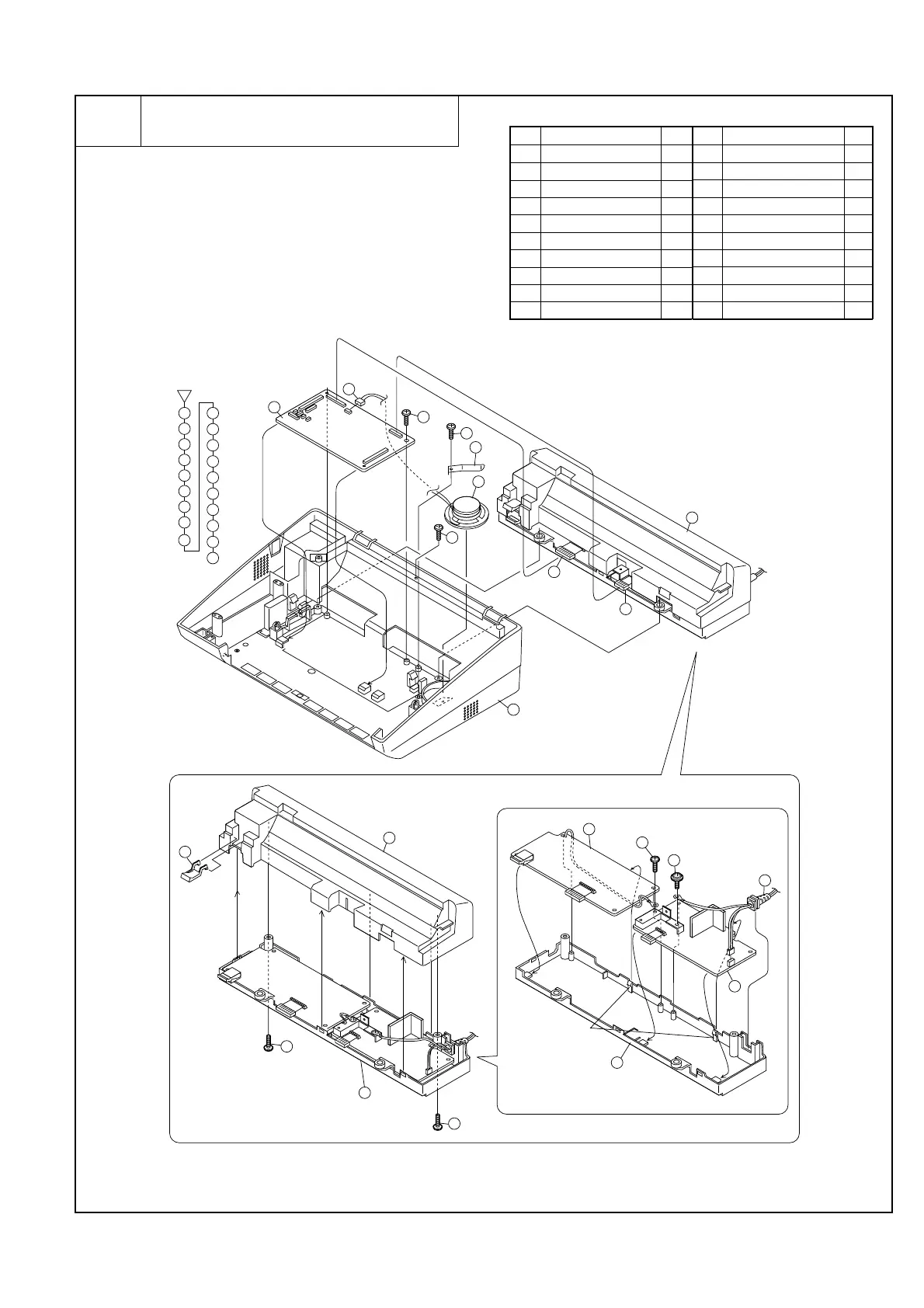

Fig. 10
3 – 12
Parts list (Fig. 10)
PWB case top, bottom, PWB and
speaker
10
Hook
2
4
4
5
7
8
9
6
12
13
14
15
11
17
18
19
10
16
20
12
13
14
15
11
11
17
18
19
16
20
3
1
2
3
4
5
1
7
8
9
6
10
1 Mechanism unit 1
2 Screw (3×10) 1
3 Connector 1
4 Connector 2
5 PWB case unit 1
6 Screw (3×8) 1
7 Control PWB unit 1
8 Screw (3×8) 1
9 Speaker holder lever spring 1
10 Speaker ass’y1
11 Screw (3×10) 2
12 Hook switch joint lever 1
13 PWB case, top 1
14 PWB case, bottom unit 1
15 Screw (3×6) 1
16 TEL/LIU PWB unit 1
17 Screw (4×6) 1
18 AC cord ass’y1
19 Power supply PWB unit 1
20 PWB case, bottom 1
No. Part name Q’ty No. Part name Q’ty
