UX-P100U
UX-P200U

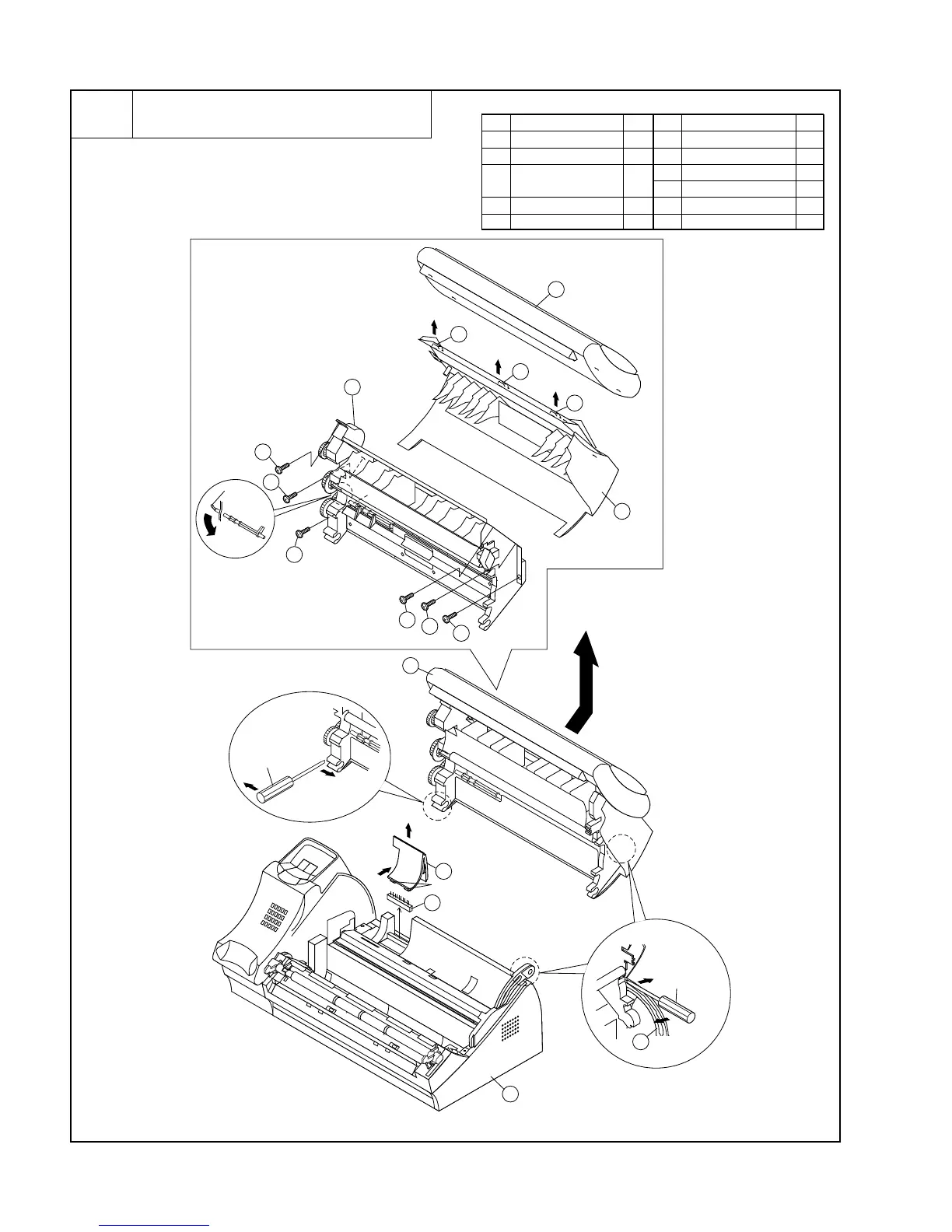

Fig. 2
Operation panel unit, top cover unit
and sub frame unit
2
Parts list (Fig. 2)
3 – 4
Hook
7
9
9
9
10
6
6
8
6
6
8
11
5
4
3
1
2
P-IN
lever
Screwdriver
Screwdriver
Operation
panel unit
Top cover
unit
Sub frame
unit
6 Screw (3×12) 4
7 Operation panel unit 1
8 Screw (3×10) 2
9 Hook 3
10 Top cover unit 1
11 Sub frame unit 1
No. Part name Q’ty No. Part name Q’ty
1 Mechanism unit 1
2 Stopper plate 1
3 Operation panel unit/
top cover unit/ sub frame unit
1
4 Interface PWB cover 1
5 Connector 1
NOTE: For disassembly of the inside of the unit,
refer to the exploded view in the parts
guide.
NOTE: When removing the operation
panel unit, detach the stopper
plate at first.
To Next Page
