Sharp UX-P200 Service Manual

UX-P100U
UX-P200U
CIS unit and thermal head unit
3

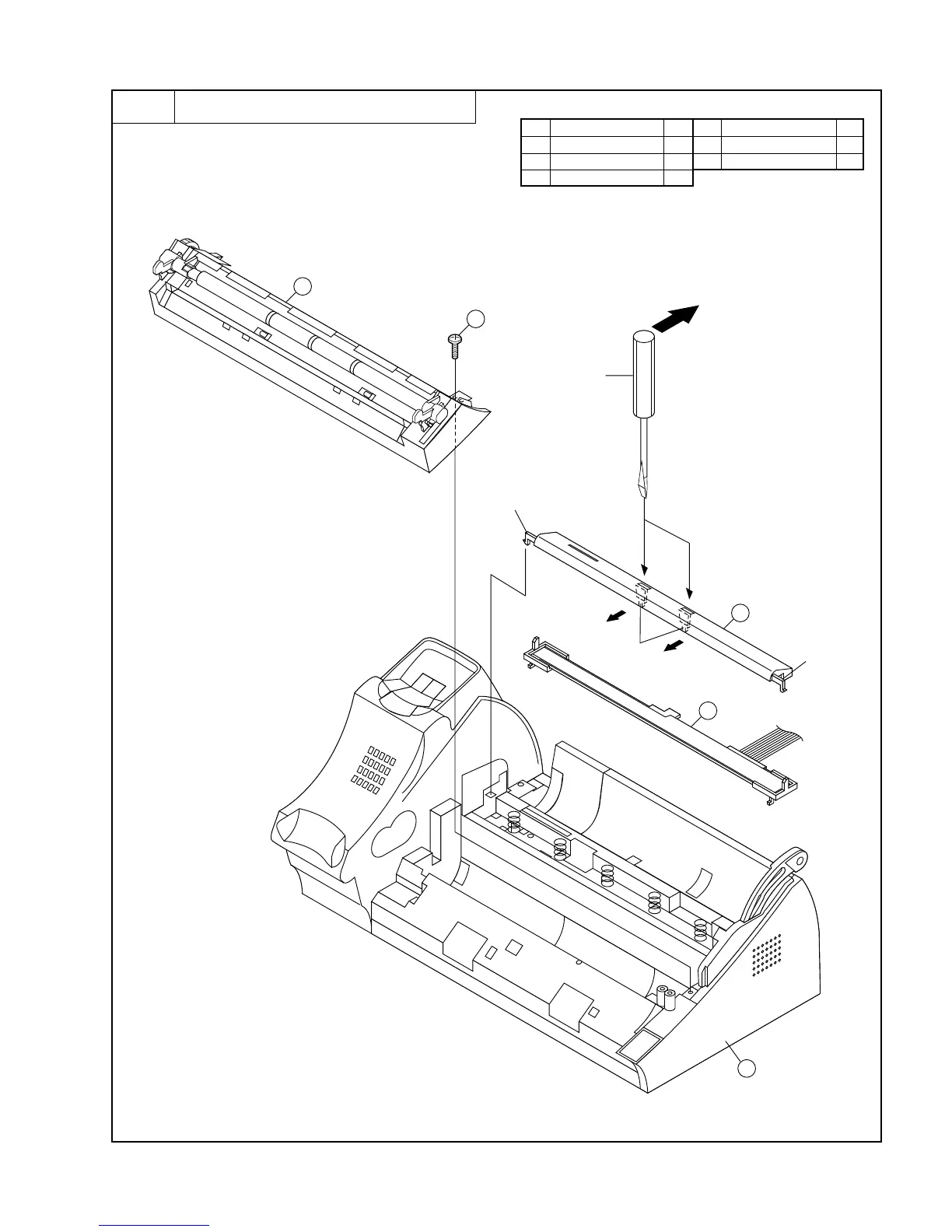

Fig. 3
3 – 5
Parts list (Fig. 3)
Hook
Hook
Hook
Screwdriver
1
2
3
4
5
CIS unit
Thermal head unit
No. Part name Q’ty No. Part name Q’ty
1 Mechanism unit 1
2 Screw (3×10) 1
3 CIS unit 1
4 Head cover 1
5 Thermal head unit 1
NOTE: For disassembly of the inside of the unit,
refer to the exploded view in the parts
guide.
