Sharp XV-Z12000 Service Manual

16
XV-Z12000

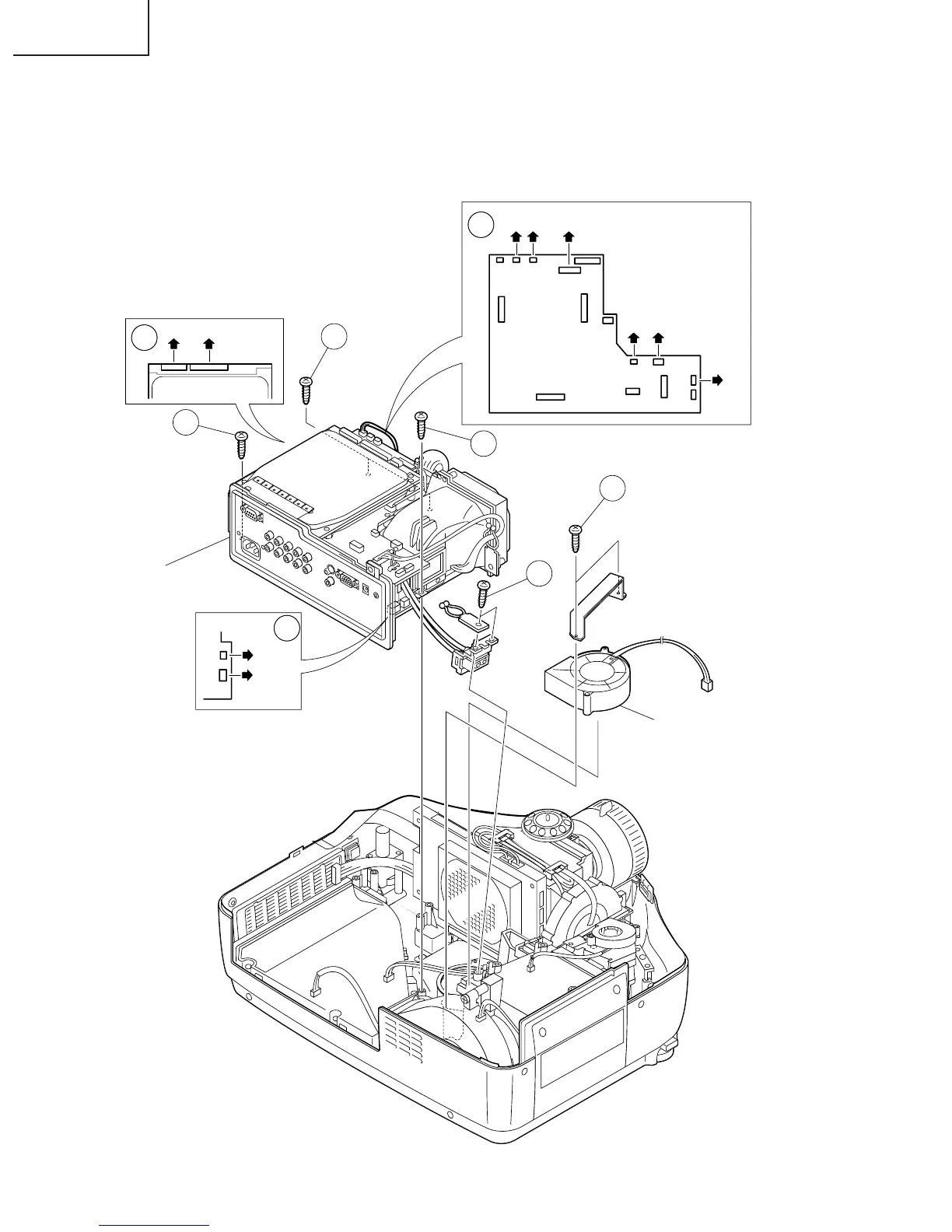

2. Removing the cooling fan and PWB unit assembly.
3-1. Disconnect the ten connectors.
3-2. Remove the two screws and detach the lamp socket.
3-3. Remove the two screws and detach the cooling fan.
3-4. Remove the four screws and detach the PWB unit assembly.
(J5) (J3)
(RC) (TA) (J2)
3-1
3-1
3-1
3-3
3-2
Cooling Fan
PWB unit assembly
3-4
3-4
3-4
Door SW
Bi-Metal
LAMP
(FD) (FB)
(FA)
