XV-Z12000

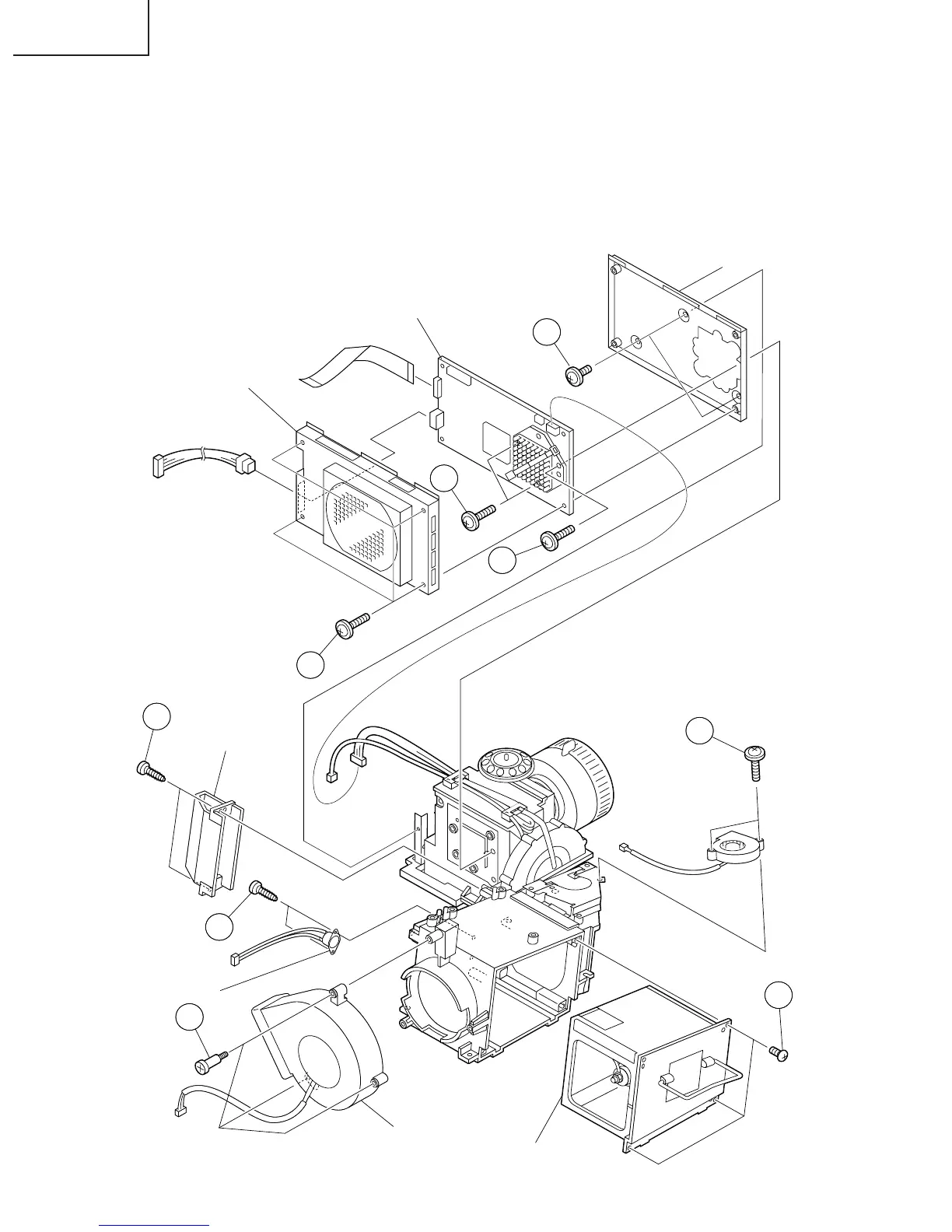

6. Removing the lamp unit, CW fan, outlet fan, bimetal, wind way duct, shield
plate and formater PWB.
16. Remove the three screws and detach the lamp unit.
17. Remove the two screws and detach the CW fan.
18. Remove the three screws and detach the outlet fan.
19-1. Remove the two screws and detach the bimetal.
19-2. Remove the two screws and detach wind way duct.
20-1. Remove the four screws and detach the shield plate(B).
20-2. Remove the three screws and detach the formater PWB.
20-3. Remove the three screws and detach the shield plate(A).
17
Outlet Fan
Bimetal
16
Lamp unit
18
20-1
19-1
19-2
Wind way Duct
20-2
20-2
Shield Plate(B)
Shield Plate(A)
Formater PWB
20-3
