Sharp XV-Z12000 Service Manual

19
XV-Z12000

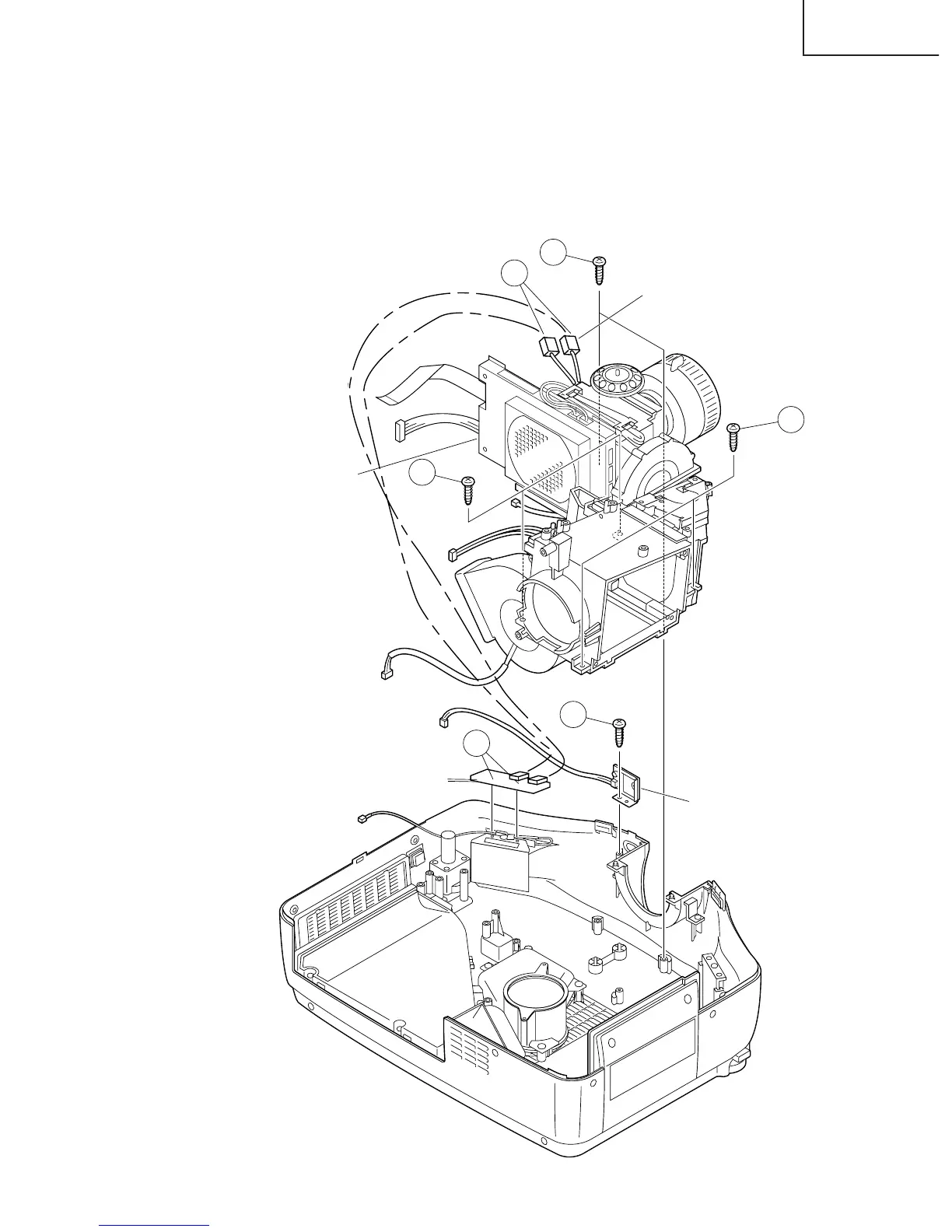

5. Removing the optical mechanism unit and R/C PWB unit.
12. Disconnect the lens connectors from the IRIS DRIVER PWB unit.
13. Remove the six screws and detach the optical mechanism unit.
14. Remove the one screw and detach the R/C PWB unit.
15. Remove the Two hooks and detach the IRIS DRIVER PWB unit.
14
13
13
Optical mechanism unit
R/C PWB unit
13
Lens connectors
IRIS DRIVE PWB Unit
15
12
