Connections and Setup
-17

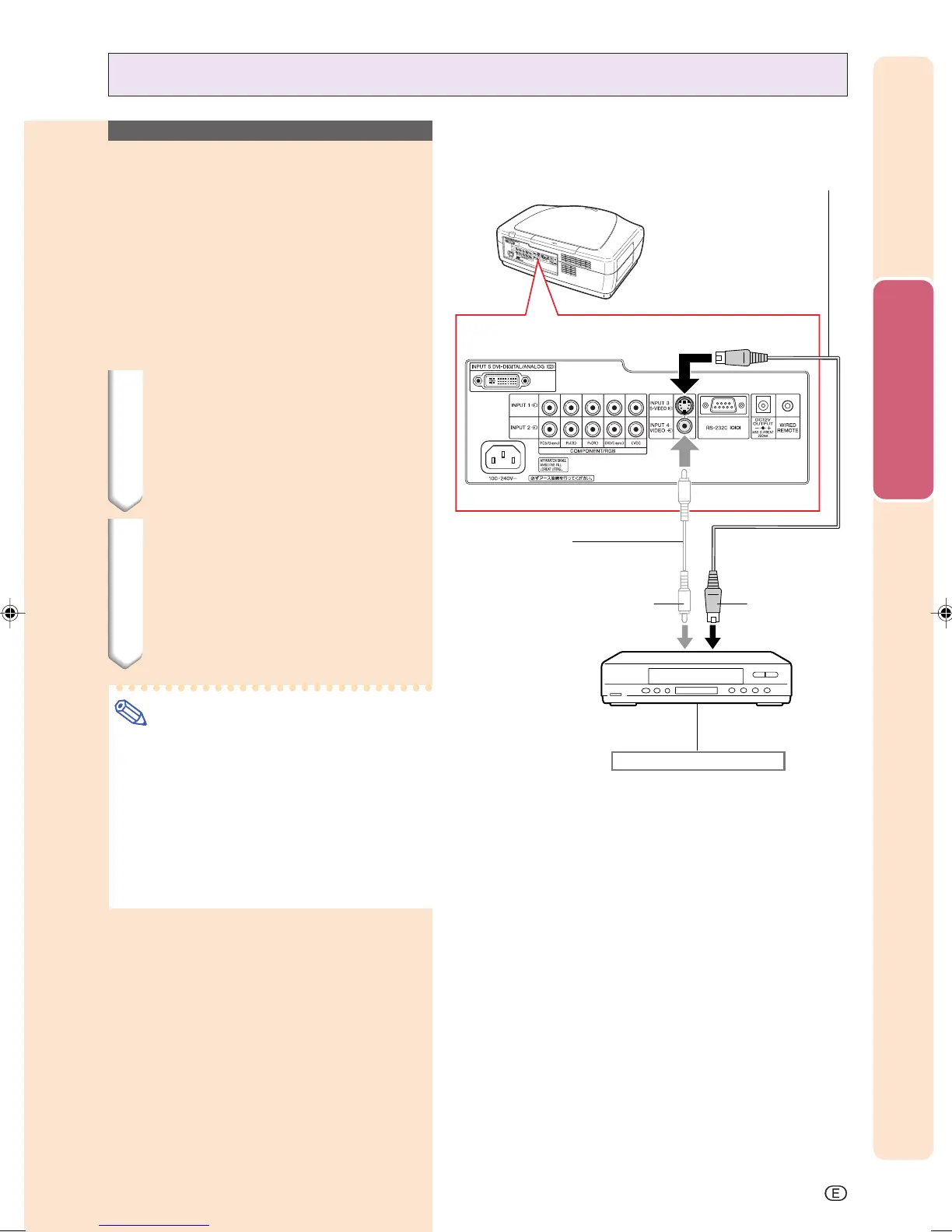

Connecting to Video Equipment
S-video cable (commercially available)
*Use when connecting to video
equipment with S-video output
terminal.
Connecting to Video
Equipment Using an
S-video or a Composite
Video Cable (INPUT 3
or 4)
Using an S-video or a composite video cable,
a VCR, DVD player or other video equipment
can be connected to INPUT 3 or INPUT 4 input
terminal.
1 Connect an S-video cable or a
composite video cable to the
projector.
• S-video cable: to INPUT 3 terminal
• Composite video cable: to INPUT 4
terminal
2 Connect the above cable to the
video equipment.
• S-video cable: to S-video output ter-
minal
• Composite video cable: to video out-
put terminal
Note
• The INPUT 3 (S-VIDEO) terminal uses a
video signal system in which the picture
is separated into color and luminance sig-
nals to realize a higher-quality image. To
view a higher-quality image, use a com-
mercially available S-video cable to con-
nect the INPUT 3 terminal on the projec-
tor and the S-video output terminal on the
video equipment.
To S-video output
terminal
To video output terminal
Composite video cable
(commercially available)
*Use when connecting to video equipment
without S-video output terminal.
VCR or other video equipment
To INPUT 3 terminal
To INPUT 4 terminal
