Connecting to Video
Equipment with the
HDMI Output Terminal
Using a DVI to HDMI
Cable (INPUT 5)
Use a DVI to HDMI cable when connecting
HDMI video equipment such as DVD players
to INPUT 5 terminal.
1 Connect a DVI to HDMI cable
to the projector.
• Secure the connectors by tightening
the thumbscrews.
2 Connect the above cable to the
video equipment.
Note
• Select the input signal type of the video
equipment. See page 69.
• Before connecting, be sure to unplug the
power cord of the projector from the AC
outlet and turn off the devices to be con-
nected. After making all connections, turn
on the projector and then the other devices.

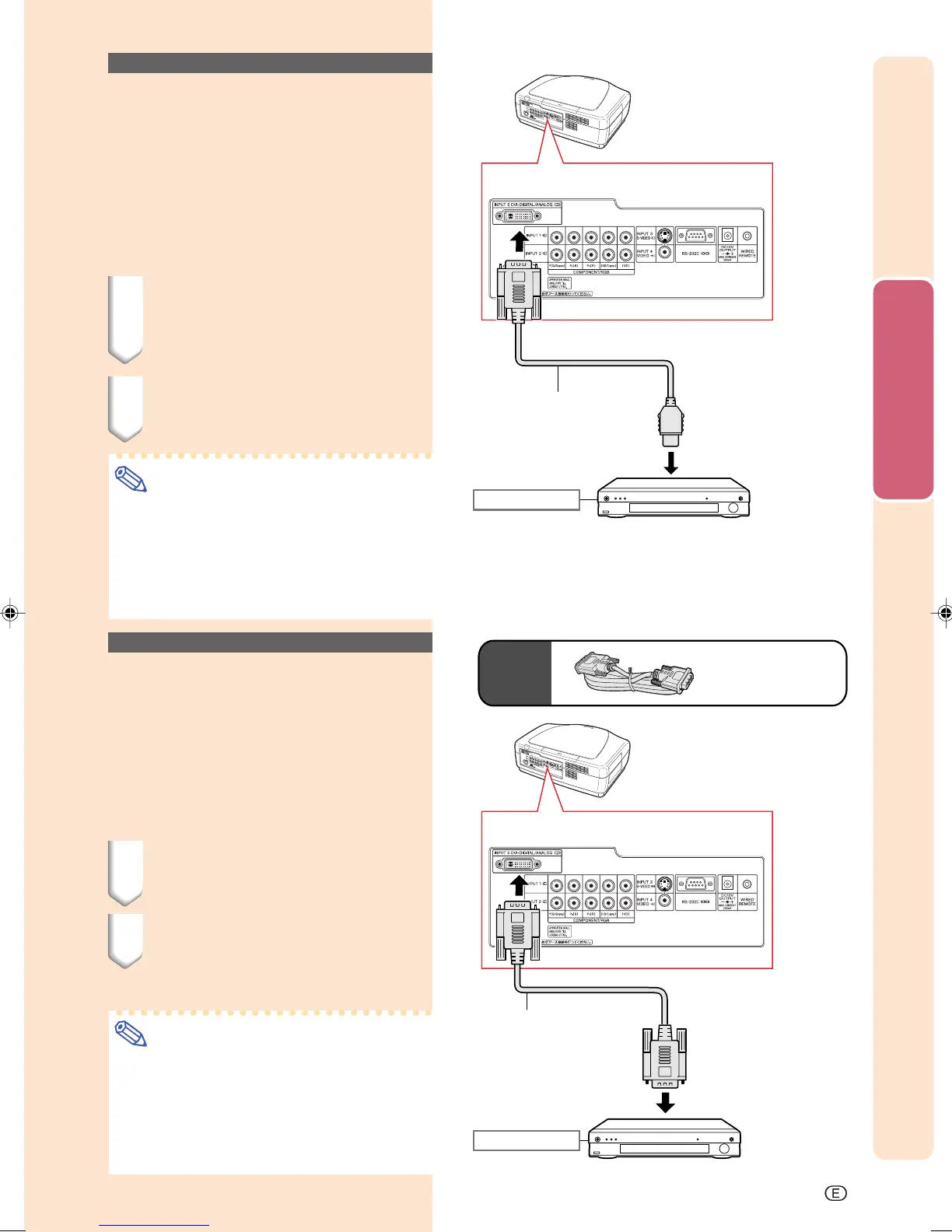

DVI to HDMI cable
(commercially available)
Video equipment
To INPUT 5 terminal
To HDMI output
terminal
Connecting to Video
Equipment with the DVI
Output Terminal Using
a DVI Cable (INPUT 5)
Use a DVI cable when connecting video equip-
ment with the DVI output terminal such as DVD
players to INPUT 5 terminal.
1 Connect a DVI cable to the pro-
jector.
2 Connect the above cable to the
video equipment.
• Secure the connectors by tightening the
thumbscrews.
Note
• Select the input signal type of the video
equipment. See page 69.
• Before connecting, be sure to unplug the
power cord of the projector from the AC
outlet and turn off the devices to be con-
nected. After making all connections, turn
on the projector and then the other devices.
Optional
accessory
DVI cable
Type:
AN-C3DV
(9'10'' (3.0 m))
To DVI Digital output terminal
DVI cable
(sold separately)
To INPUT 5 terminal
Video equipment
