Sharp XV-Z12000 User Manual

-20

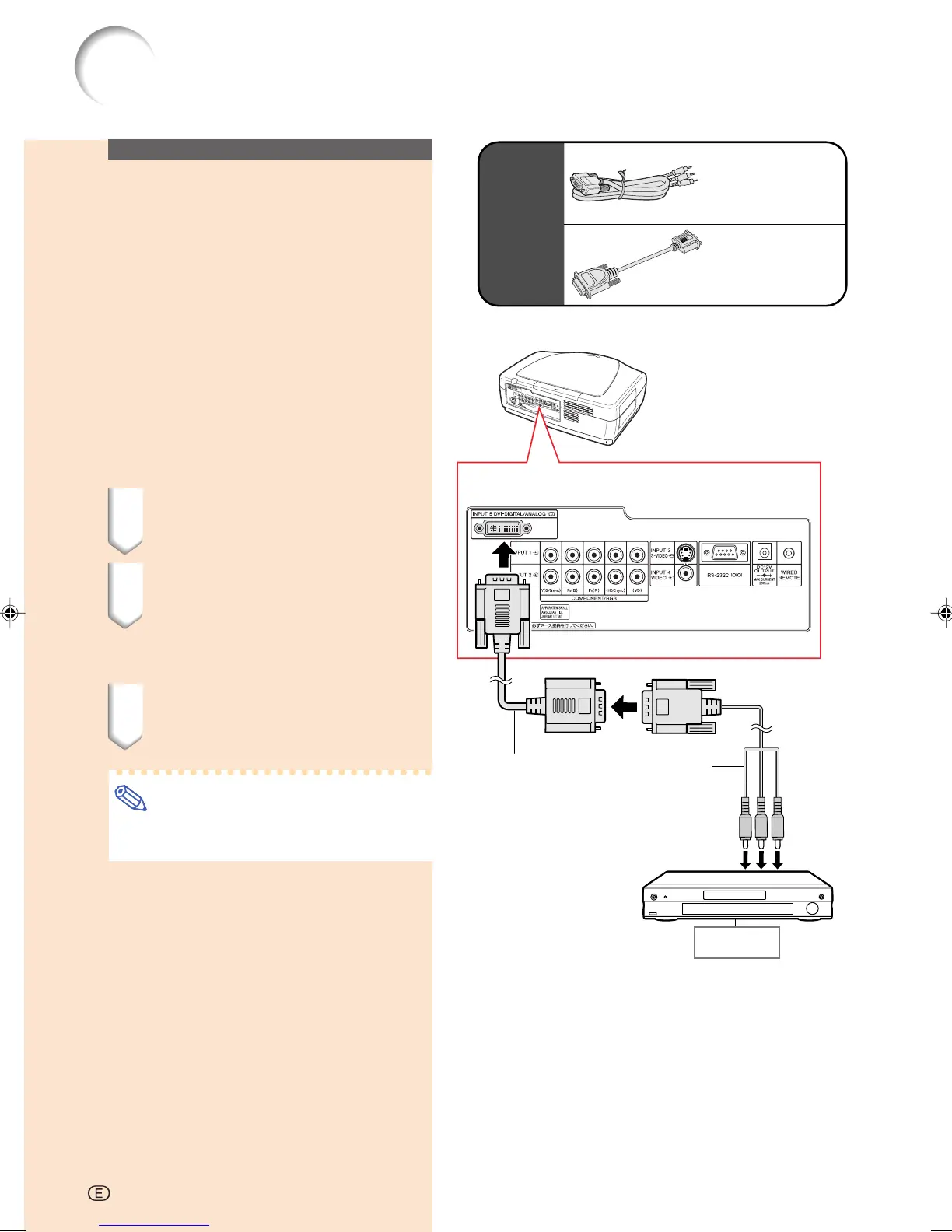

Connecting to Compo-
nent Video Equipment
Using a 3 RCA to 15-pin
D-sub Cable and the
DVI to 15-pin D-sub
Adaptor (INPUT 5)
Use a 3 RCA to 15-pin D-sub cable and the
DVI to 15-pin D-sub adaptor when connecting
component video equipment such as DVD
players and DTV* decoders to the INPUT 5 ter-
minal.
*
DTV is the umbrella term used to describe the
new digital television system in the United States.
1 Connect a DVI to 15-pin D-sub
adaptor to the projector.
2 Connect a 3 RCA to 15-pin D-
sub cable to the above adaptor.
• Secure the connectors by tightening the
thumbscrews.
3 Connect the above cable to the
video equipment.
Note
• Select the input signal type of the video
equipment. See page 69.
3 RCA to 15-pin
D-sub cable
Type: AN-C3CP
(9'10" (3.0 m))
DVI to 15-pin
D-sub adaptor
Type: AN-A1DV
(7.9" (20 cm))
Optional
accessories
To analog component
output terminal
DVD player or
DTV* decoder
DVI to 15-pin
D-sub adaptor
(sold separately)
3 RCA to 15-pin
D-sub cable
(sold separately)
-20
Connecting the Projector to Other Devices
To INPUT 5 terminal
XV_Z12000_E_US_p15_26.p65 03.9.26, 6:37 PM20
