Projection (PRJ) Mode

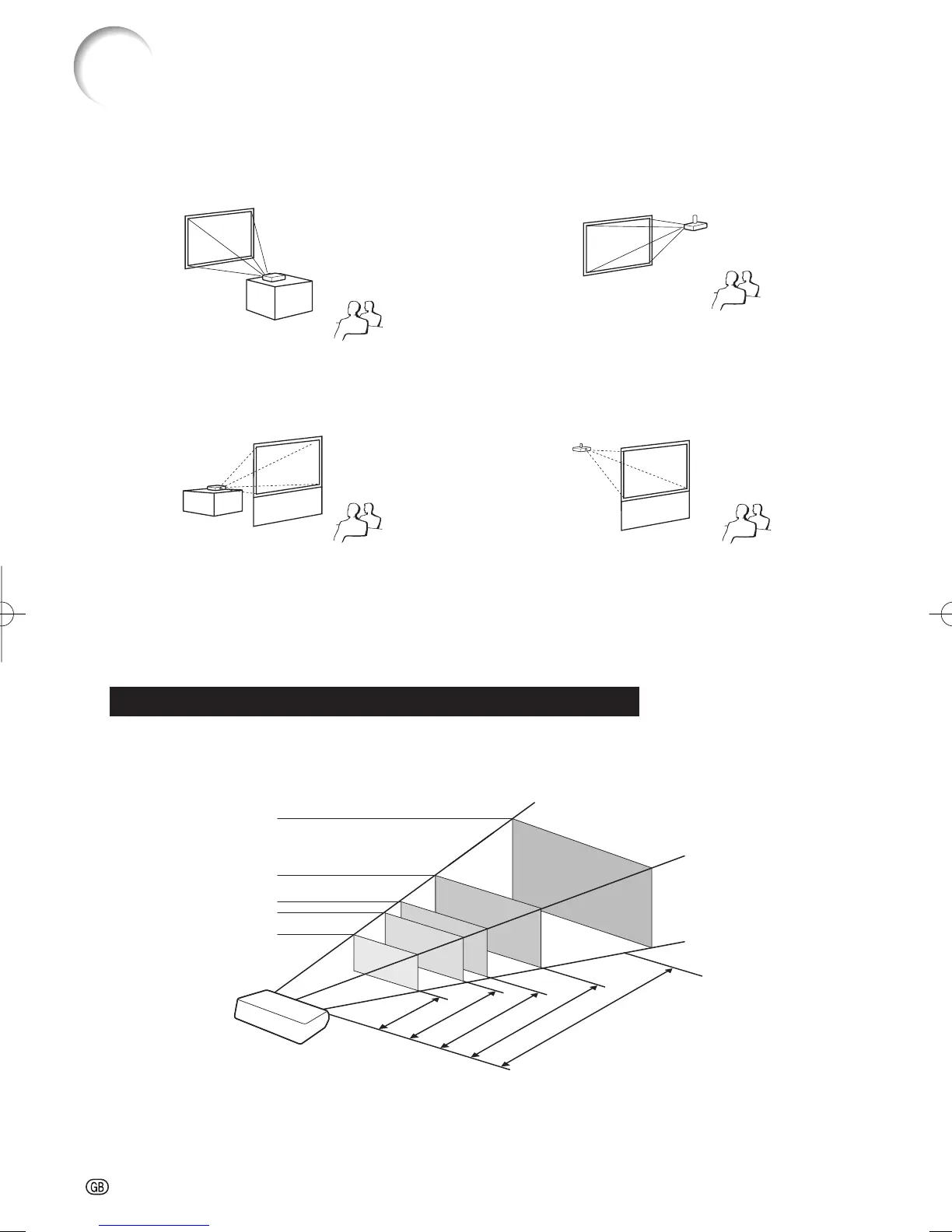

The projector can use any of the 4 projection modes, shown in the diagram below. Select the mode most ap-
propriate for the projection setting in use. (You can set the PRJ Mode in “SCR-ADJ” menu. See page 44.)
■ Table mounted, front projection
■ Ceiling mounted, front projection
Menu item ➞ “Front”
■ Table mounted, rear projection
(with a translucent screen)
Menu item ➞ “Rear”
Menu item ➞ “Ceiling + Front”
■ Ceiling mounted, rear projection
(with a translucent screen)
For details, refer to “Screen Size and Projection Distance” on page 17.
Example : When using a wide screen (16:9)
Indication of the Projection Image Size and Projection Distance
4'1" ~ 4'9"
(1.3 m ~ 1.4 m)
8'3" ~ 9'6"
(2.5 m ~ 2.9 m)
10'4" ~ 11'11"
(3.1 m ~ 3.6 m)
20'7" ~ 23'9"
(6.3 m ~ 7.2 m)
51'6"
(15.7 m)
500"
200"
100"
80"
40"
436
"
×245
"
174
"
×
98
"
87
"
×49
"
70
"
×39
"
35
"
×
20
"
Picture Size
Projection
Distance
Ceiling-mount Setup
■ It is recommended that you use the optional Sharp ceiling-mount adaptor and unit for this installation. Before
mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain
the recommended ceiling-mount adaptor and unit (sold separately).
Menu item ➞ “Ceiling + Rear”
