-24

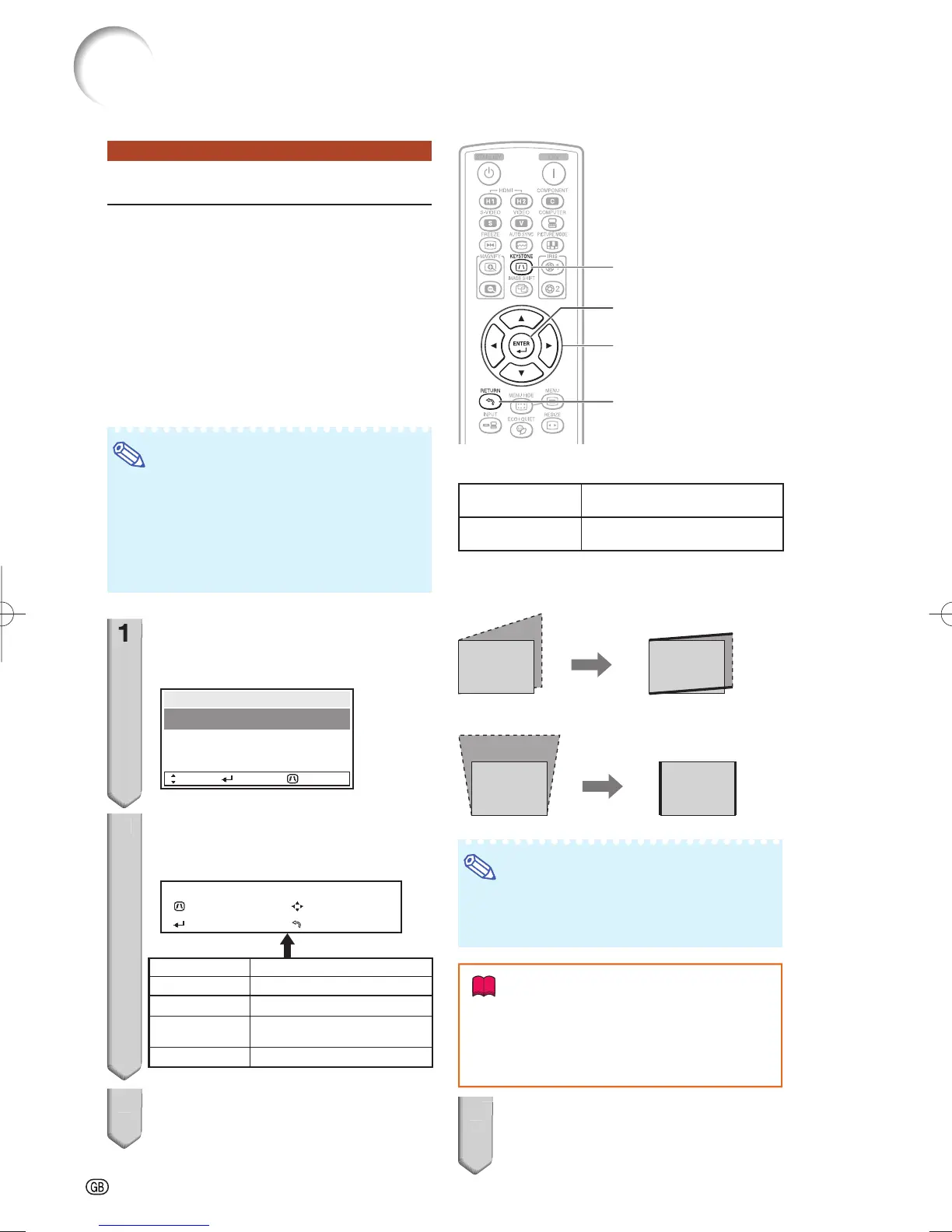

Keystone Correction
This function can correct distortion of an image
projected toward a spherical or cylindrical screen
as well as trapezoidal distortion of an image on a
fl at screen and rotate the image at your arbitrary
angle.
■ Keystone
When the image is projected either from the top or
from the bottom towards the screen at an angle, the
image becomes distorted trapezoidally. The
function for correcting trapezoidal distortion is
called Keystone Correction.
Note
The Keystone Correction can be adjusted up
to an angle of approximately ±12 degrees
with “Auto V-Keystone” and up to an angle
of approximately ±40 degrees with “V-Key-
stone” and approximately ±30 degrees with
“H-Keystone”.
1
Press KEYSTONE to enter the
keystone mode.
The keystone mode list appears.
SEL. ENTER
END
SPHERE
ROTATION
KEYSTONE MODE
KEYSTONE
2
Press P/R to select “KEYSTONE”,
and then press ENTER.
The keystone menu guide appears.
ADJUST
RESETTESTPATTERN
END
KEYSTONE
H: 0 V: 0
Selectable buttons
Description
END
➞
KEYSTONE
Exits the keystone mode.
ADJUST
➞
P/R/O/Q
Adjusts the keystone correction.
TESTPATTERN
➞ENTER
Displays the testpattern.
RESET
➞
RETURN
Returns to a default setting.
3
Press P/R/O/Q to adjust the
Keystone Correction.
•
•
•
3
KEYSTONE button
Adjustment buttons
(P/R/O/Q)
RETURN button
Image Projection (Continued)
Keystone Correction
H-Keystone Correction:
V-Keystone Correction:
O, Q button
For horizontal keystone correction
P, R button
For vertical keystone correction
Note
To return to the default setting, press RETURN
while the on-screen display of the Keystone
mode is on the screen.
Info
While adjusting the image using Keystone/
Sphere/Rotation Correction, straight lines
and the edges of the image may appear
jagged.
•
4
Press KEYSTONE.
The on-screen display of the Keystone
mode will disappear.
•
•
ENTER button
XV-Z15000EUS.indb24XV-Z15000EUS.indb24 2008/12/2514:25:282008/12/2514:25:28
