Sharp XV-Z15000 User Manual

Introduction
-9
Numbers in refer to the main pages in this operation manual where the topic is explained.
Projector
Part Names and Functions
47
25
22, 48
13, 22
22, 48
22, 27, 51
14, 23
14, 23
14, 23
34
26
34
48
34
34
29
27
12
47
23
23
STANDBY/ON button
For turning the power on
and putting the projector
into standby mode.
Lamp indicator
Temperature warning
indicator
Adjustment buttons (P/R/O/Q)
For selecting menu items.
ENTER button
For setting items selected or adjusted
on the menu.
MENU button
For displaying adjustment and setting
screens.
Focus ring
For adjusting the focus.
INPUT buttons (P/R)
For switching input mode.
Remote control sensor
HEIGHT ADJUST lever
PICTURE MODE button
For selecting the appropriate picture.
Intake vent
Zoom ring
For enlarging/
reducing the picture.
RESIZE button
For switching the picture
size (NORMAL, STRETCH, etc.).
Power indicator
Adjustment foot
Lens shutter
RETURN button
For returning to the previous menu
screen during menu operations.
Adjustment foot
AUTO V-KEYSTONE
button
Vertical keystone correction is
performed automatically.

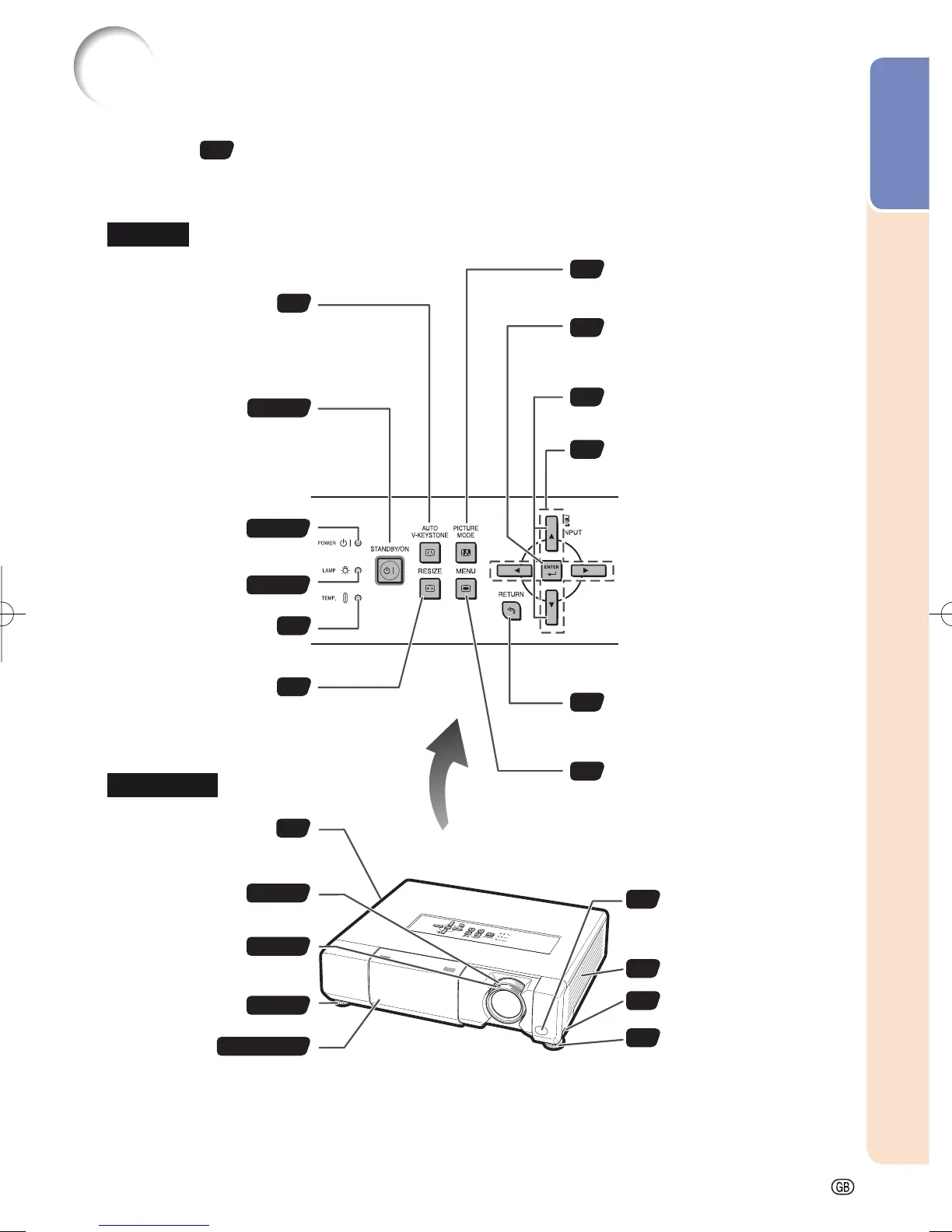

Top View
Front View
Exhaust vent
XV-Z15000EUS.indb9XV-Z15000EUS.indb9 2008/12/2514:25:162008/12/2514:25:16
