Sharp XV-Z15000 User Manual

-52
4

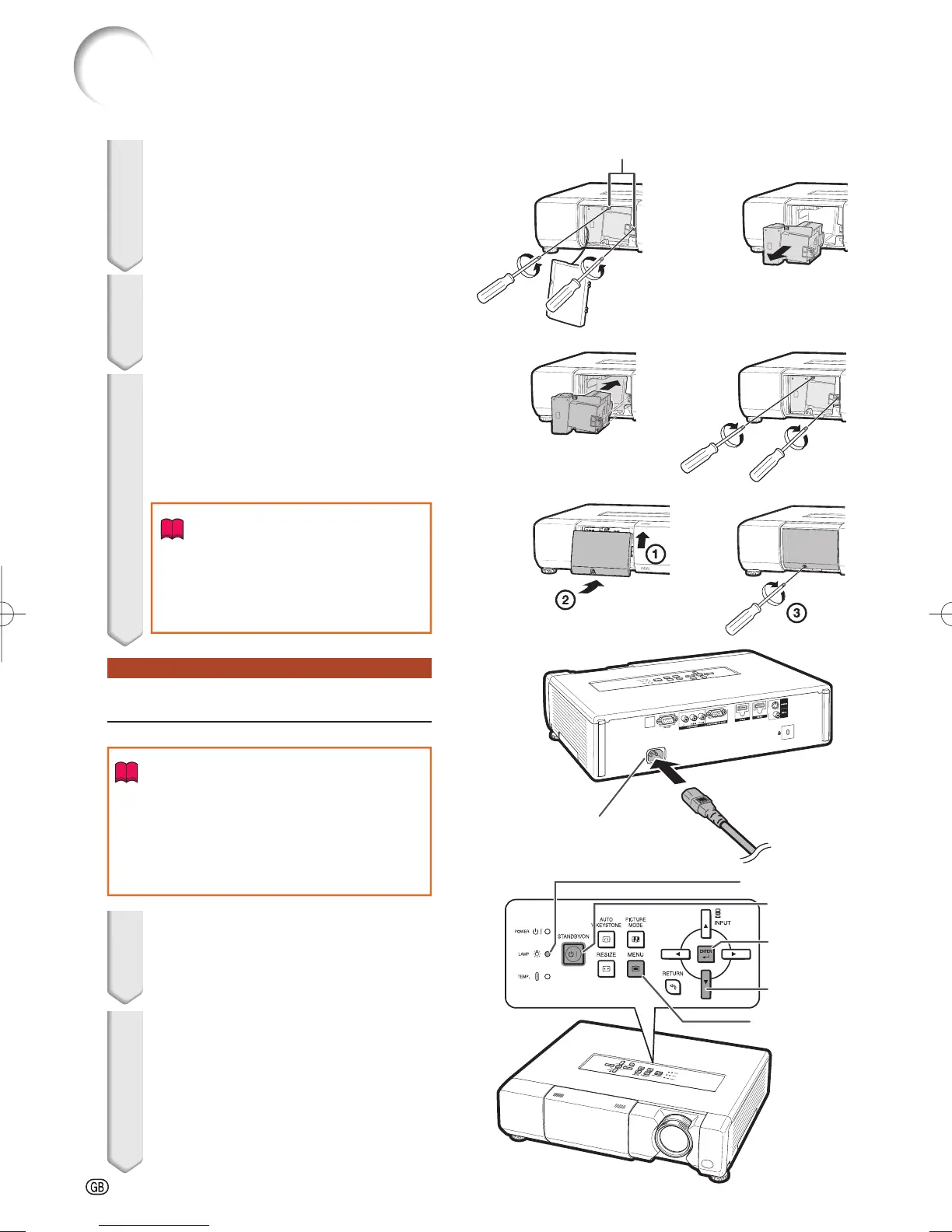

Remove the lamp unit.
• Loosen the securing screws from the
lamp unit. Hold the lamp unit and pull it
in the direction of the arrow. At this time,
keep the lamp unit horizontal and do not
tilt it.
5
Insert the new lamp unit.
• Press the lamp unit fi rmly into the lamp
unit compartment. Fasten the securing
screws.
6
Replace the lamp unit cover.
• Align the tab on the lamp unit cover
(1) and place it while pressing the cover
(2) to close it. Then tighten the user
service screw (3) to secure the lamp
unit cover.
Info
• If the lamp unit and lamp unit cover are
not correctly installed, the power will
not turn on, even if the power cord is
connected to the projector.
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
Info
• Make sure to reset the lamp timer only when
replacing the lamp. If you reset the lamp timer
and continue to use the same lamp, this
may cause the lamp to become damaged
or explode.
1 Connect the power cord and
open the lens shutter fully.
• Plug the power cord into the AC socket
of the projector.
2 Reset the lamp timer.
• While simultaneously holding down
MENU, ENTER and R on the projector,
press STANDBY/ON on the projector and
keep all four buttons pressed down until
the lamp indicator starts blinking green.
• “LAMP 0000 H” is displayed, indicating
that the lamp timer is reset.
S
ecuring screws
S
ecuring screws
1
1
2
2
3
3
AC socketAC socket
Regarding the Lamp (Continued)
Lamp indicator
STANDBY/
ON button
R button
ENTER
button
MENU button
XV-Z15000EUS.indb52XV-Z15000EUS.indb52 2008/12/2514:25:462008/12/2514:25:46

Sharp XV-Z15000 Specifications

General

Projection distance	3.14 - 3.63 m
Projection technology	DLP
Contrast ratio (typical)	-
Screen size compatibility	300 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	403 x 115 x 341 mm
Digital zoom	1.15 x
Focal length range	21 - 24.2 mm
Lamp type	SHP
Lamp power	250 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Audio (L/R) in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	No
Supported video modes	1035i, 1080i, 1080p, 480i, 480p, 576i, 576p, 720i, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL L, SECAM
Product color	Black
Market positioning	Home cinema
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	353 W
Noise level	23 dB

Weight and Dimensions

Weight	5800 g
