Connections
-19
Before connecting, be sure to unplug the power cord of the projector from the AC outlet and turn off the devices
to be connected. After making all connections, turn on the projector and then the other devices.

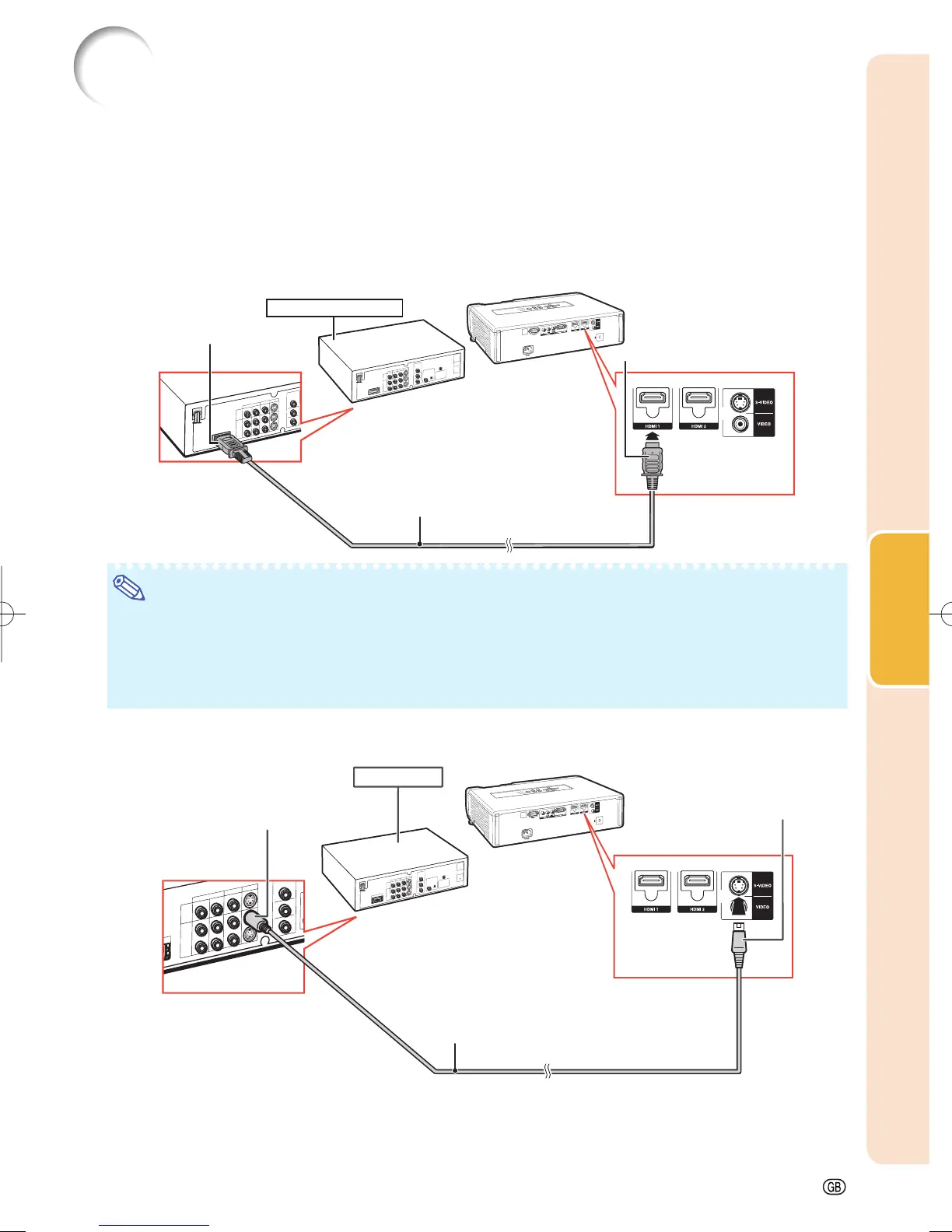

Connecting Equipment with HDMI Output Terminal to the HDMI Terminal on the Projector
HDMI is a new specialized interface capable of delivering a video and audio signal to the terminal using just one cable.
Since this projector does not support an audio signal by itself, use an amplifi er or other audio device.
For video connection, use a cable that conforms to HDMI standards. Using cables that do not conform to HDMI
standards may result in a malfunction.
Note
• HDMI (High-Defi nition Multimedia Interface) is a digital AV interface that can deliver a high-defi nition video
signal, multi-channel audio signal, and bi-directional control signal all in just one cable.
• Because it is compatible with the HDCP (High-bandwidth Digital Content Protection) system, the digital
video signal does not degrade when transmitted, and a high-quality image with a simple connection can
be enjoyed.
Connecting to Video Equipment
DVD Player, etc.
To S-video output terminal
S-video cable
(commercially available)
To S-VIDEO terminal
HDMI-compatible device
To HDMI output terminal
HDMI cable (type A)
(commercially available)
To HDMI1 or 2 terminal
Connecting to Equipment with S-video Output Terminal
Refer to “Samples of Cables for Connection” on page 18 for connecting other equipment.
XV-Z15000EUS.indb19XV-Z15000EUS.indb19 2008/12/2514:25:222008/12/2514:25:22
To Next Page
