Sharp XV-Z2000 Service Manual

21
XV-Z2000
DT-400

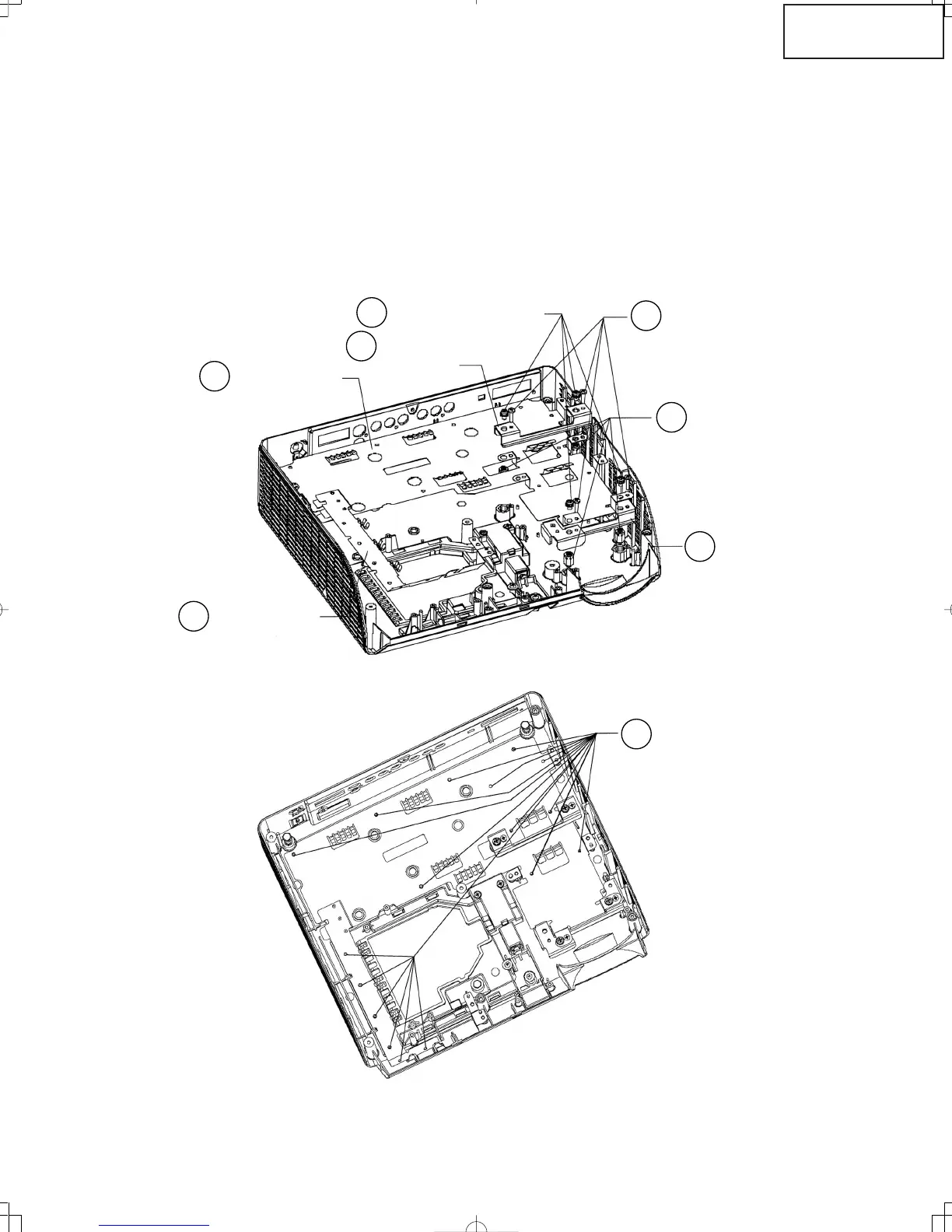

9. Fixing the earth shield
9-1. Install the four nuts.
9-2. Fit the reinforcement (bracket-A) in position.
9-3. Place the earth shield (L) as specified.
9-4. Fit the reinforcement (bracket-B) in position.
9-5. Tighten up the four M3 screws.
9-6. Tighten up the four M4 screws.
9-7. Place the earth shield (S) as specified.
9-8. Melt the 17 pins of the earth shield.
9-3
Earth Shield (L)
M4 screw (4 locations)
9-7
Earth Shield (S)
9-6
Reinforcement
(Bracket-B)
9-4
Reinforcement
(Bracket-A)
9-2
Melt the 17 pins.
Precaution
*Melt the pins with a soldering
iron to fix the earth shield.
Finally check for loosenes.
9-8
M3 screw (4 locations)
9-5
Nut (4 locations)
9-1

Sharp XV-Z2000 Specifications

General

Projection distance	2.6 - 3.9 m
Contrast ratio (typical)	2500:1
Screen size compatibility	40 - 200 \
Projector native resolution	SXGA (1280x1024)
Lamp type	SHP
Lamp power	275 W
Light source type	Lamp
Service life of light source	3000 h
Video in	XGA, Mac 19” (in intelligent compression), SVGA/VGA, Mac 16”/13”
I/O ports	2x component, 1x RCA video, 1x S-video, DVI-I (analogue component, digital & analogue RGB) x 1
Dimensions (WxDxH)	310 x 287 x 104 mm
Power requirements	100-240V AC, 50/60Hz
Power consumption (typical)	360 W
Market positioning	Home cinema

Weight and Dimensions

Weight	4300 g
