Shelly Wave Plug US User Manual

EN.
12
9. LED Signalization
9.1 General rules
• Switching between Normal and Settings mode is done by Single press on the S button
• Ones in settings mode, LED automatically turns off after 10s
• Press on the S button or device power cycle wakeup LED for 10s.
Normal mode LED status: Normal mode is defined by stable device function that can remain for
an infinite time.
9.2 LED type: Blue and Red dimmable
9.3 Normal mode
Removed/Excluded

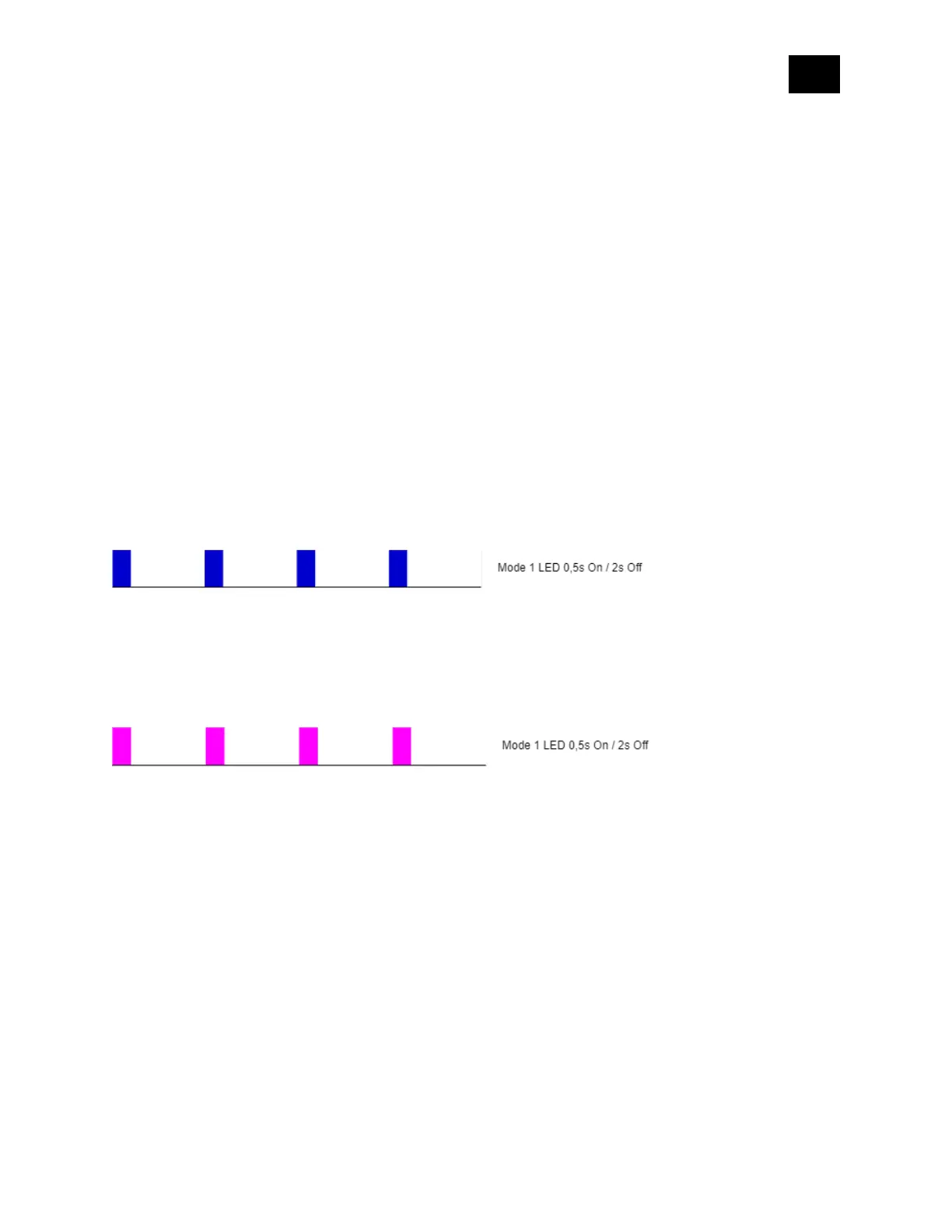

The LED will be blinking blue in Mode 1 for 10 sec after every power cycle.
Added/Included
The LED will be blinking violet in Mode 1 for 10 sec after every power cycle.
Relay is switched ON and power consumption is >85% of Max Power consumption
The LED will be red solid on all the time starting 11 sec after every power cycle.
Relay is switched ON and power consumption is between 0W and 85% of Max Power
consumption
The LED will be blue solid on all the time starting 11 sec after every power cycle.

Shelly Wave Plug US Specifications

General

Power supply	120 V ±10 %, 60 Hz
Power consumption	< 0.3 W
Power measurement [W]	Yes
Max switching voltage AC	140 V
Max switching current AC	15 A
Overheating protection	Yes
Overcurrent protection	Yes
Overvoltage protection	Yes
Distance	up to 40 m indoors (131 ft.) (Depends on local condition)
Shell material	Plastic
Color	White
Z-Wave repeater:	Yes
Z-Wave frequencies band(s)	908, 4
Maximum radio frequency power transmitted in frequency bend(s)	< 25 mW
CPU	Z-Wave S800
Compatible sockets	NEMA 5-15 (Type-B)
Compatible plugs	NEMA 1-15 (Type-A) and NEMA 5-15 (Type-B)
Ambient temperature	-20°C to 40°C / -5°F to 105°F
Humidity	30% to 70% RH
Max. altitude	2000 m / 6562 ft.

Weight and Dimensions

Size (H x W x D)	38x84x52 ±0.5 mm / 1.5x3.3x2.0 in ±0.02 in
Weight	70 ±1 g / 2.47 ±0.04 oz
