9.4 Settings in progress
Factory reset and reboot
During factory reset, the LED will turn solid blue+red for approx. 1s (undefined in SW), then the
blue and red LED will be blinking 0,1s On / 0,1s Off for about 2s.
Adding / Removing

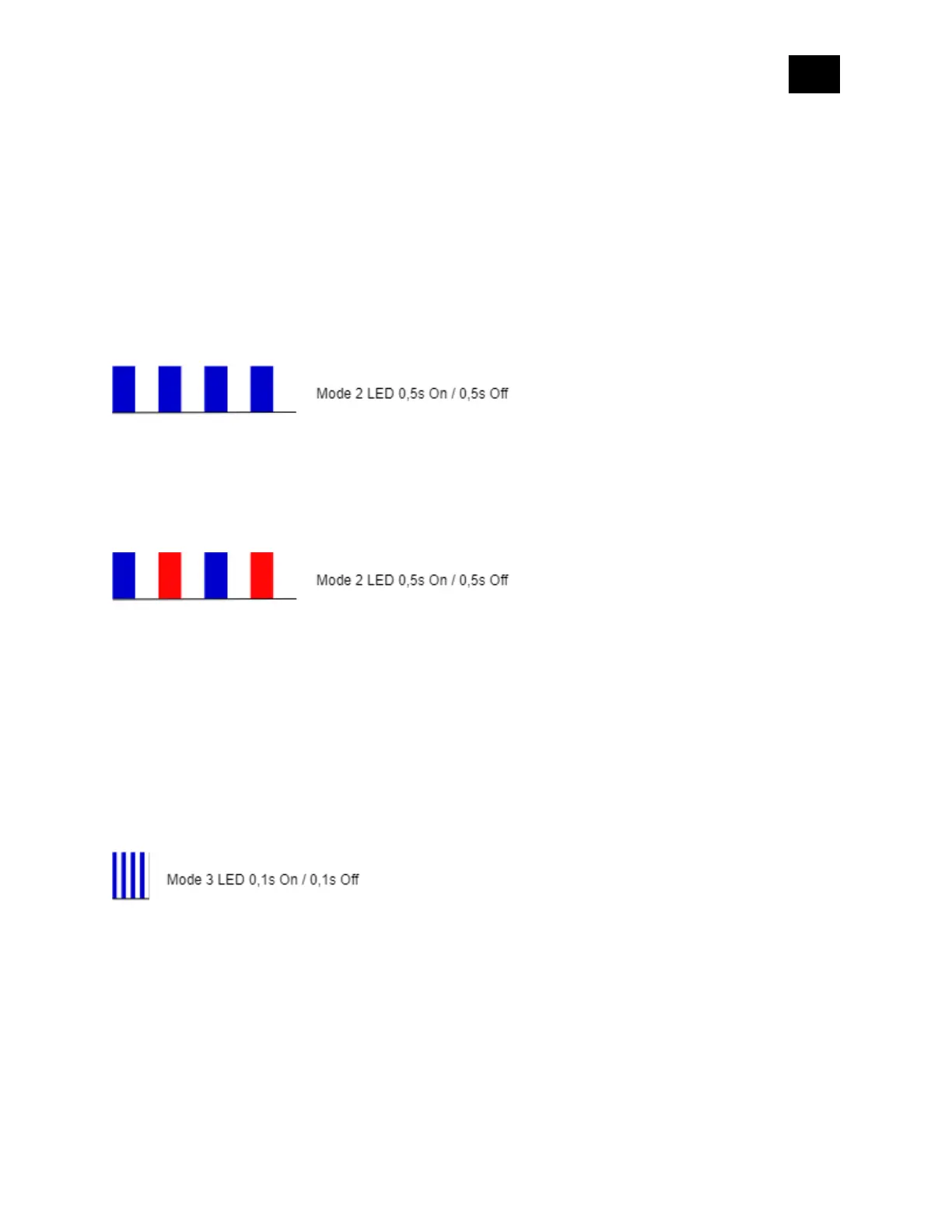

During adding or removing, the LED will be blinking blue in Mode 2.
Firmware updating OTA
During the OTA update, the LED will be blinking blue and red in Mode 2.
9.5 Settings mode with S button
Adding / Removing menu selected
When the menu is selected the LED will be on blue, for maximum of 10 seconds.
Adding / Removing menu - while pressing S- button - Add/Remove process selected
When the menu is executing the LED will be blinking blue in Mode 3.
Factory reset menu selected
When the menu is selected the LED will be on red, for maximum of 10 seconds.
Factory reset - while pressing S - button - Factory reset process selected
When the menu is executing the LED will be blinking red in Mode 3.

Shelly Wave Plug US Specifications

General

Power supply	120 V ±10 %, 60 Hz
Power consumption	< 0.3 W
Power measurement [W]	Yes
Max switching voltage AC	140 V
Max switching current AC	15 A
Overheating protection	Yes
Overcurrent protection	Yes
Overvoltage protection	Yes
Distance	up to 40 m indoors (131 ft.) (Depends on local condition)
Shell material	Plastic
Color	White
Z-Wave repeater:	Yes
Z-Wave frequencies band(s)	908, 4
Maximum radio frequency power transmitted in frequency bend(s)	< 25 mW
CPU	Z-Wave S800
Compatible sockets	NEMA 5-15 (Type-B)
Compatible plugs	NEMA 1-15 (Type-A) and NEMA 5-15 (Type-B)
Ambient temperature	-20°C to 40°C / -5°F to 105°F
Humidity	30% to 70% RH
Max. altitude	2000 m / 6562 ft.

Weight and Dimensions

Size (H x W x D)	38x84x52 ±0.5 mm / 1.5x3.3x2.0 in ±0.02 in
Weight	70 ±1 g / 2.47 ±0.04 oz
