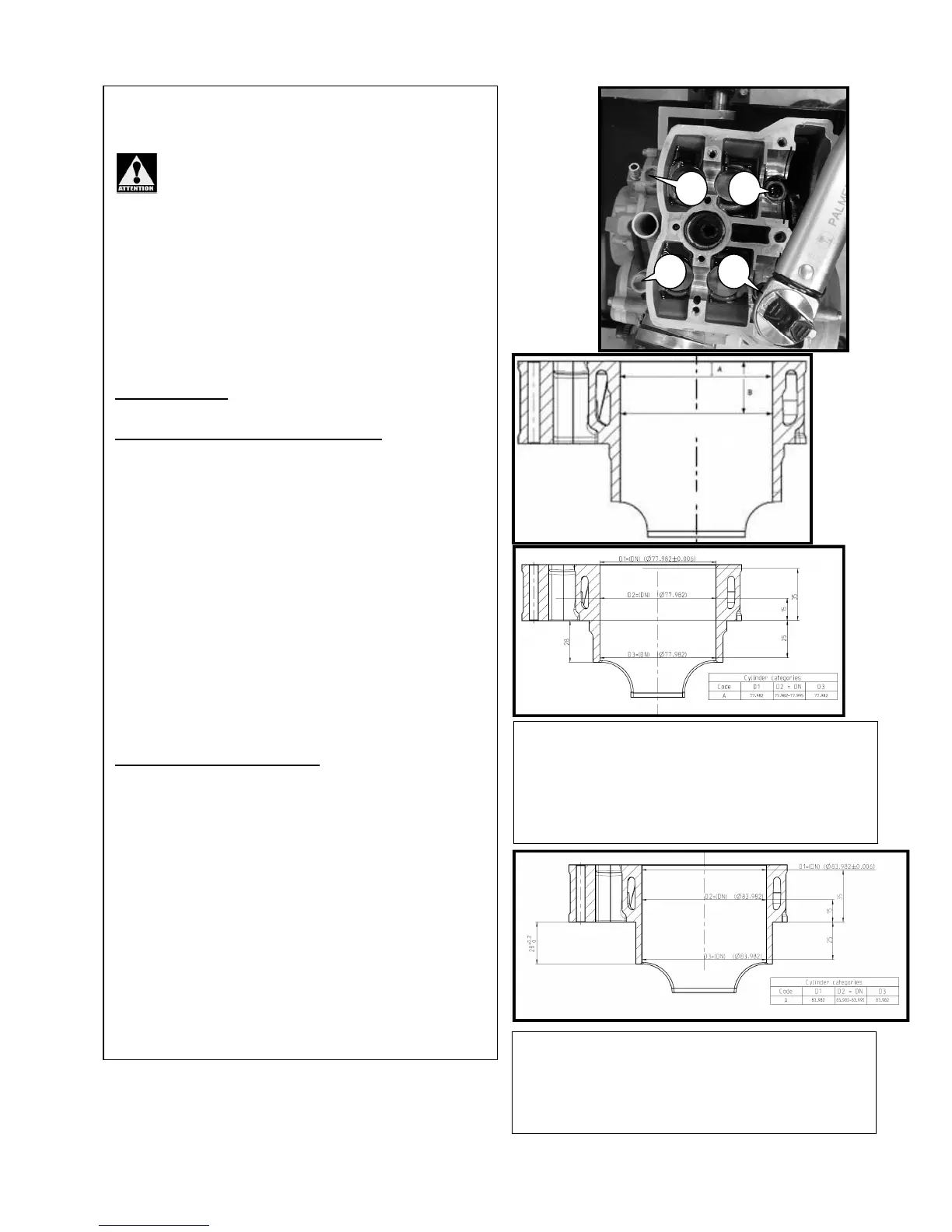

SHERCO 2013 SE 250i-R User Manual

13/54
Standard
SE 250i
-
R:
Cylinder diameter (A) = 77.982±0.01 mm
Cylinder diameter (B) = 77.982~77.995 mm
Taper limit 0.05 mm
Out of round limit 0.05 mm
Standard
SE 300i
-
R
:
Cylinder diameter (A) = 83.982±0.01 mm
Cylinder diameter (B) = 83.982~83.995 mm
Taper limit 0.05 mm
Out of round limit 0.05 mm
• Remove the cylinder head bolts (Be sure
to loosen them in the correct direction).
Black bolt N°1 on the picture is longer , 3
bolts are identical .
• Remove the cylinder head.
• Remove the head gasket and the
cylinder.
Motor top end:
Inspection of the cylinder for wear:
Measure the inside diameter of the cylinder
when it is cold.
• Inspect the inside of the cylinder for any
scratches or other evidence of abnormal wear.
If the cylinder is badly damaged or worn it
should be replaced.
• Since the cylinder does not wear in a
uniform manner measure in from side to side
and up and down as shown.
If the inside measurement of the cylinder
exceeds the tolerance limit it must be replaced.
(A)=10 mm
(B)=25 mm
Piston / cylinder clearance
To determine the piston / cylinder clearance as
accurately as possible it is sufficient to measure
the piston and the cylinder, and then calculate
the difference between the two values.
Measure the diameters as shown.
Piston / cylinder clearances
Standard 0.03 – 0.05 mm
Limit 0.10 mm
1
3
4
2
