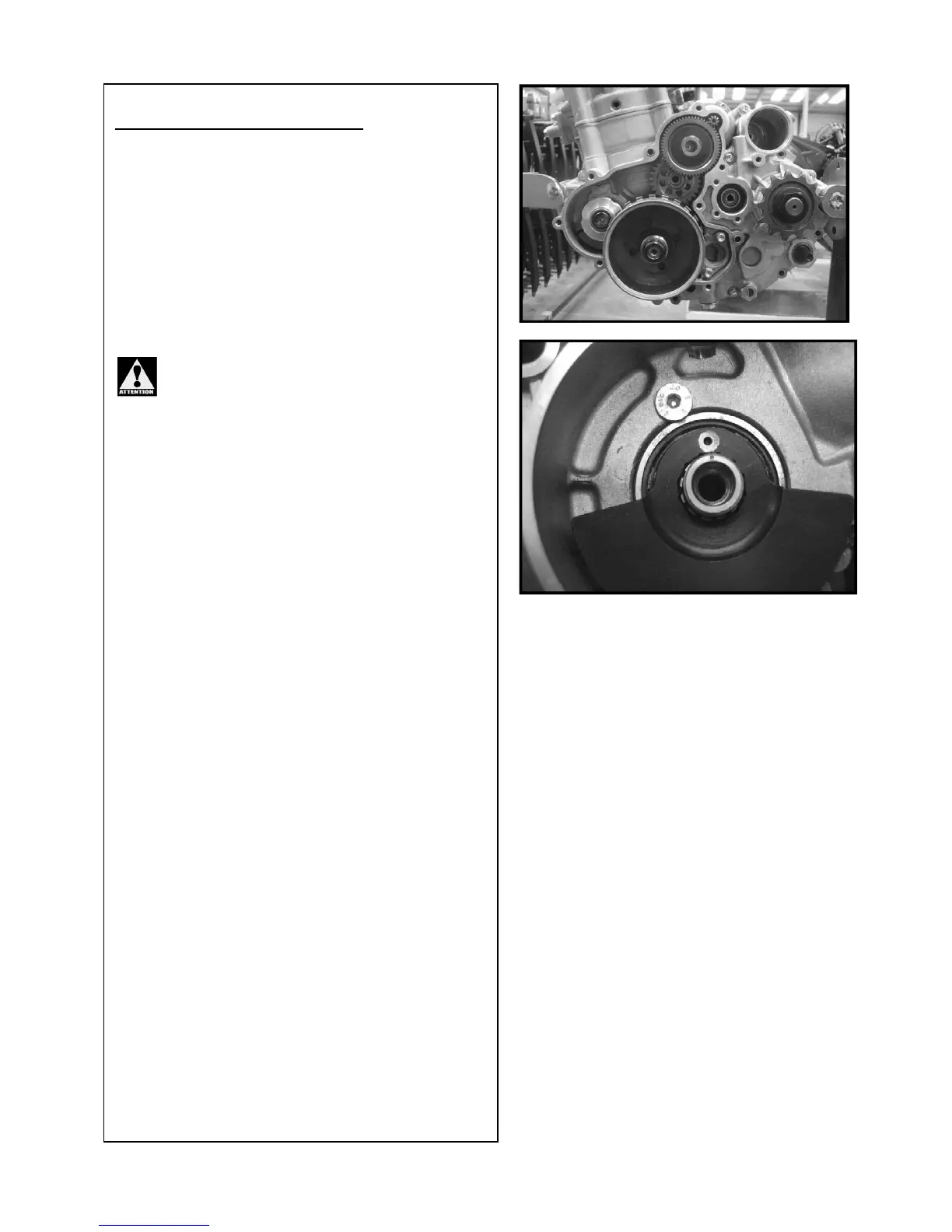

Reassembling the ignition case:
• Apply grease to the caged needle
bearing and reinstall it.
• Reinstall the two starter shafts and their
gears.
• Visually inspect the oil seal on the oil
centrifuge.
• Use special tool number 1818 to install
the oil centrifuge.
Tighten the oil centrifuge fixing screw to the
appropriate torque.
This screw thread is reversed, it is a LH
thread.
• Screw and tighten the centrifuge.
Torque the centrifuge fixing screw to: 8 Nm.
• Inspect the rotor key, change if
necessary.
• Install the rotor (turn the rotor counter
clockwise to help facilitate the installation of the
lighting rotor).
• Apply proper tightening torque to the nut
on the rotor with strong threadlocker.
• Install the conical washer.
• Using special tool number 1815 to hold
the rotor tighten the fixing nut.
Torque the fixing clutch nut to 80 Nm with
medium threadlocker.
• Install the remaining shafts and gears.
• Install the two case locating pins.
• Install a new gasket.
• Install the ignition crankcase cover and
tighten the 10 screws.
Torque the ignition crankcase cover screws
to: 10 Nm.
