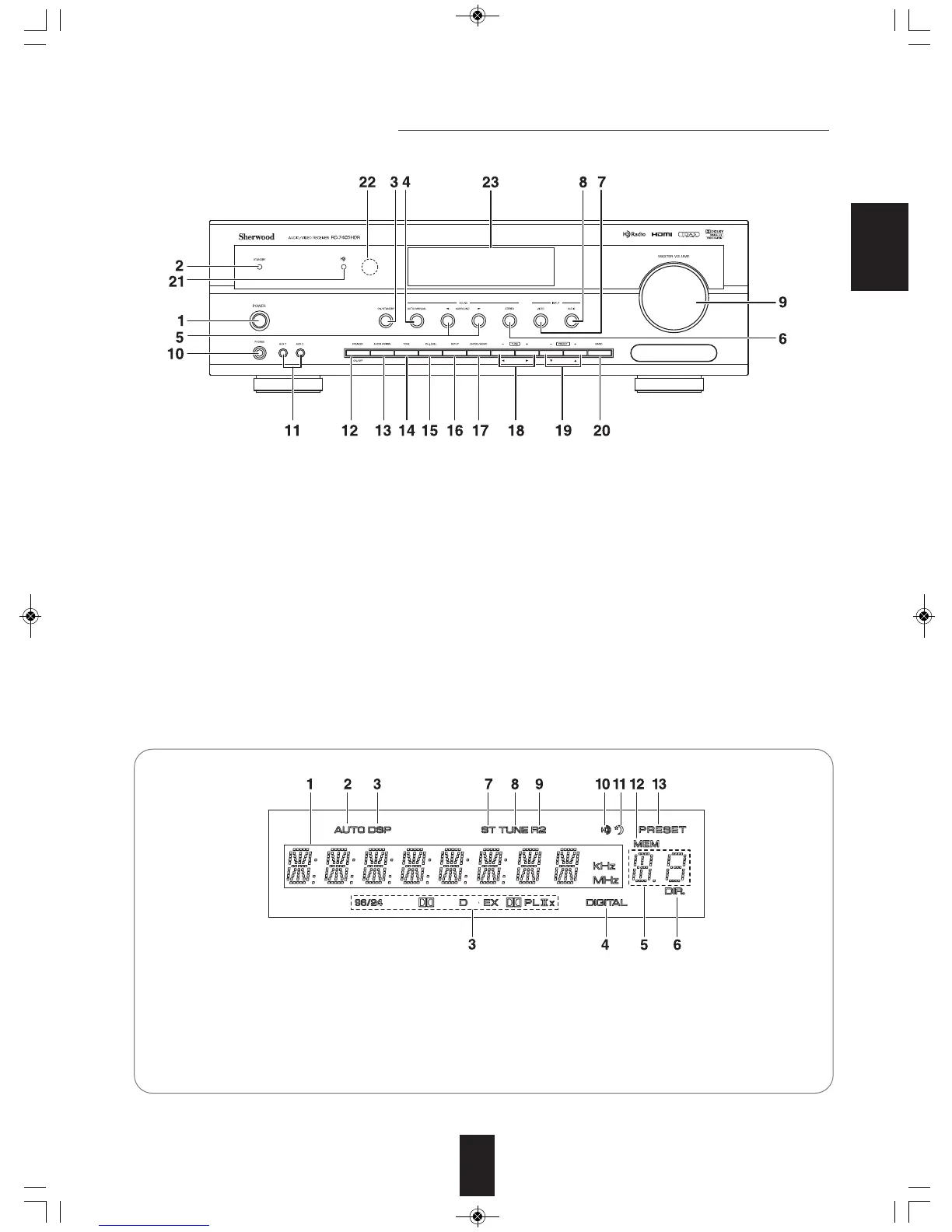

Front Panel Controls
ENGLISH
■FLUORESCENT DISPLAY
1. POWER switch
2. STANDBY indicator
3. POWER ON/STANDBY button
4. AUTO/MANUAL button
5. SURROUND MODE UP/DOWN(▶/◀) buttons
6. STEREO button
7. VIDEO INPUT SELECTOR button
8. AUDIO INPUT SELECTOR button
9. MASTER VOLUME knob
10. HEADPHONE jack
11. AUX 1, 2 IN jacks
For details, see next page.
12. SPEAKER button
13. AUDIO ASSIGN button
14. TONE MODE button
15. CHANNEL LEVEL button
16. SETUP button
17. ENTER/MEMORY button
18. TUNING UP/DOWN(+/-),
CURSOR LEFT/RIGHT(◀/▶) buttons
19. PRESET UP/DOWN(+/-),
CURSOR UP/DOWN(▲/▼) buttons
20. BAND button
21. HD RADIO™ indicator
22. REMOTE SENSOR
23. FLUORESCENT DISPLAY
For details, see below.
1. Input, frequency, volume level, operating information, etc.
2. AUTO indicator
3. Surround mode indicators
4. DIGITAL INPUT indicator
5. Preset number, sleep time display
6. DIRECT indicator
7. STEREO indicator
8. TUNED indicator
9. ROOM 2 indicator
10. HD RADIO™ indicators
11. SLEEP indicator
12. MEMORY indicator
13. PRESET indicator
