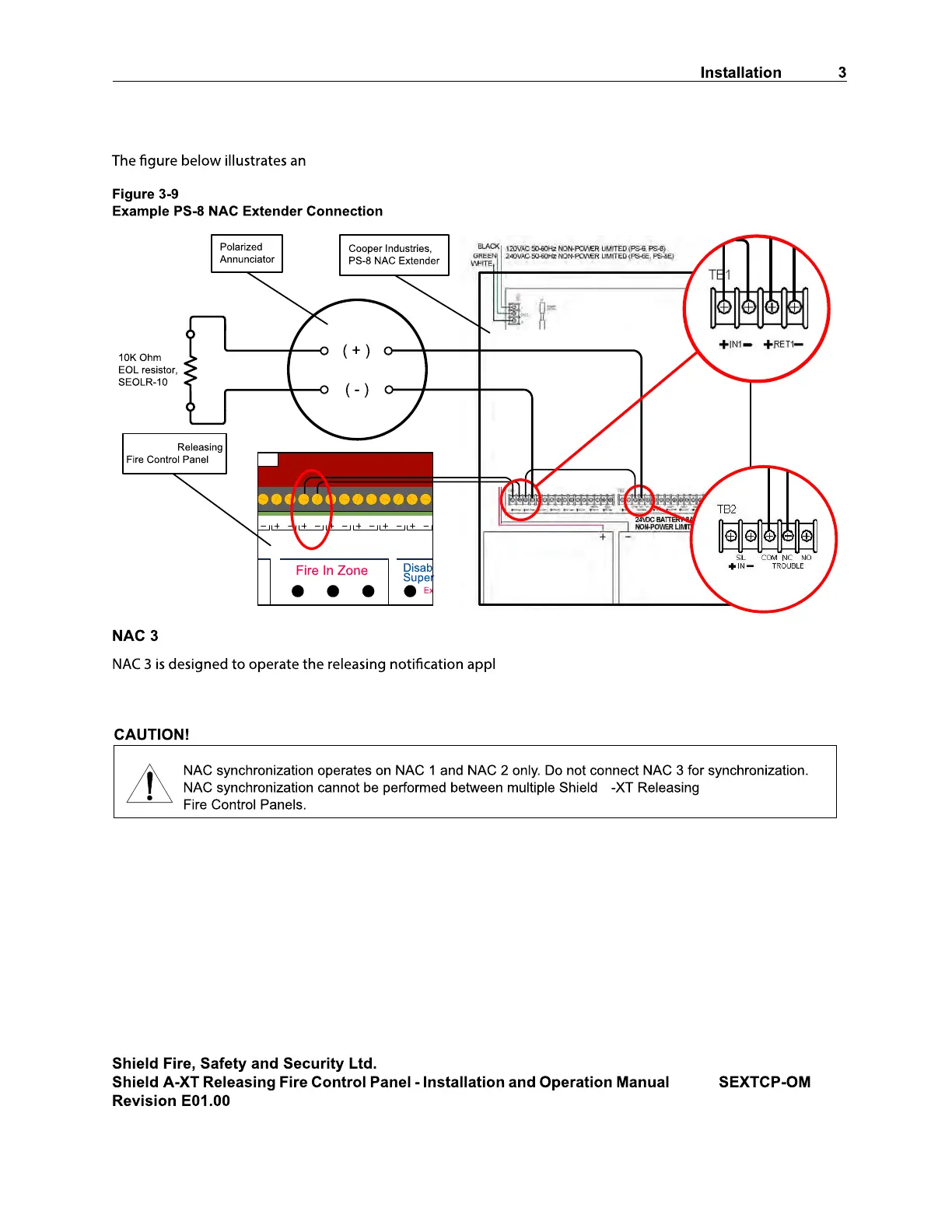

example NAC Extender PS-8 connection:
30 of 127
iances of the Shield A-XT Releasing Fire Control
Panel only. NAC 3 provides a special application output that is pulsed and continuous. The pulsed output of NAC 3
prevents it from operating strobe devices or synchronizing with devices on NAC 1 and NAC 2.
POWER
TA
TATUS UNITS
ZONE 3ZONE 1 ZONE 2NAC2NAC1
Shield A-XT
A
