Shimadzu AOC-20i User Manual

Shimadzu AOC-20 3 Installation Procedure
3 Installation Procedure
3.1 Autosampler Setup - communication
The autosampler communicates with PC using the RS232- compliant
serial cross DB9F-DB9F cable.

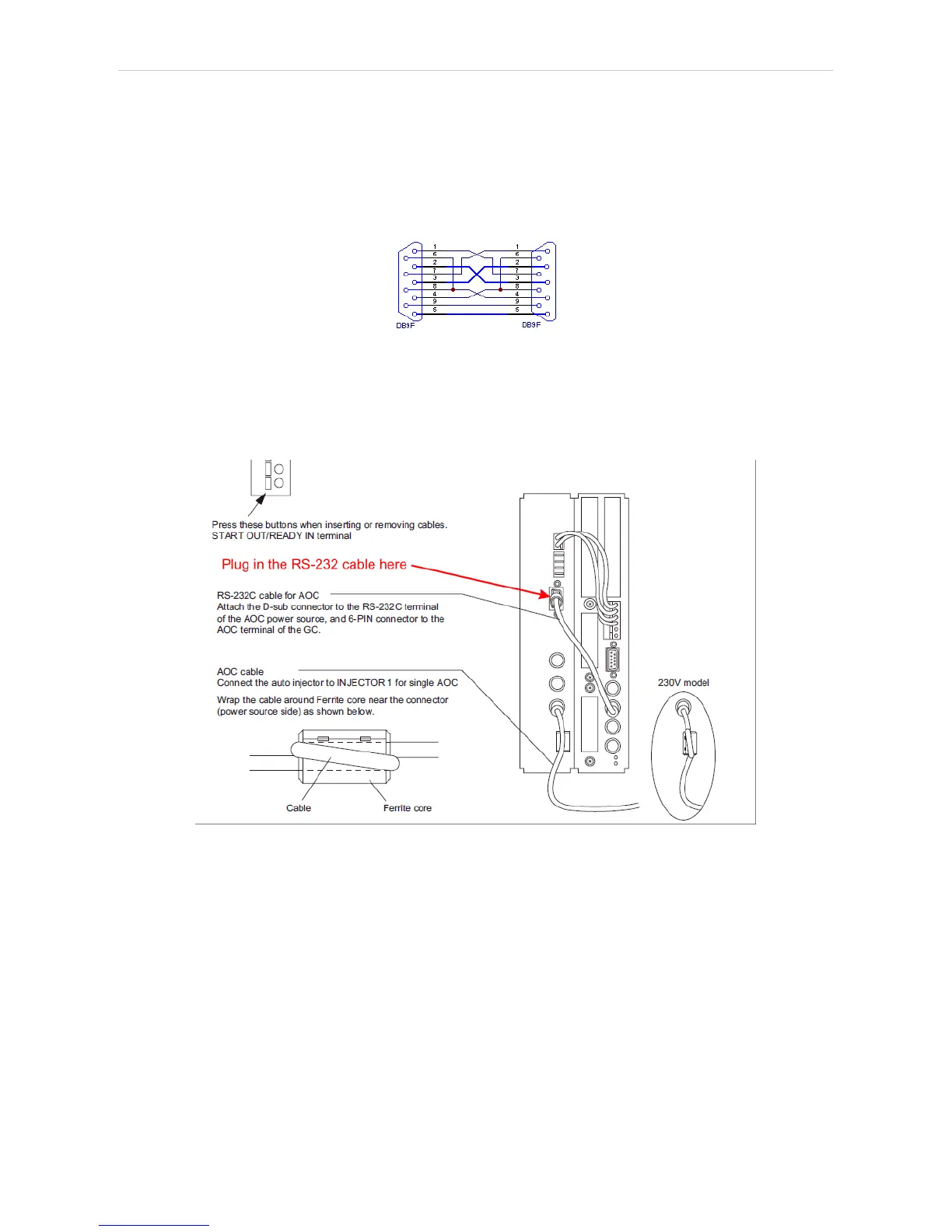

Fig 2: Serial cross DB9F-DB9F cable
The RS-232 cable is plugged in to the autosampler controller board (not
the tower) present at the back side of the GC, replacing the cable
connecting it to the GC in default setup, as displayed in the Fig 3 on pg 3.
Fig 3: Shimadzu AOC-20 controller board connections
- 3 -
