Maintaining the Balance
!
CAUTION
Instructions
Prior to commencing maintenance, press [ POWER] to display [STAND-BY]
and unplug the balance’s AC adapter.
If you carry out maintenance with the AC adapter left plugged into the power outlet, you may sustain an electric shock.
Instructions
Do not touch the pan support shaft
Failure to observe this may result in damage to the balance.
Instructions
Make sure dust or dirt does not enter the hole on the pan support shaft
Make sure dust or dirt does not enter the hole in the pan supporter when cleaning it. Failure to observe this may result in malfunctions.
Instructions
Be careful to ensure that no dirt or debris gets into the detached glass door rack
gear, main body pinion gear, etc., and that they are not touched or wiped, etc.
Doing so could cause damage.
OK
FUNC
g
d

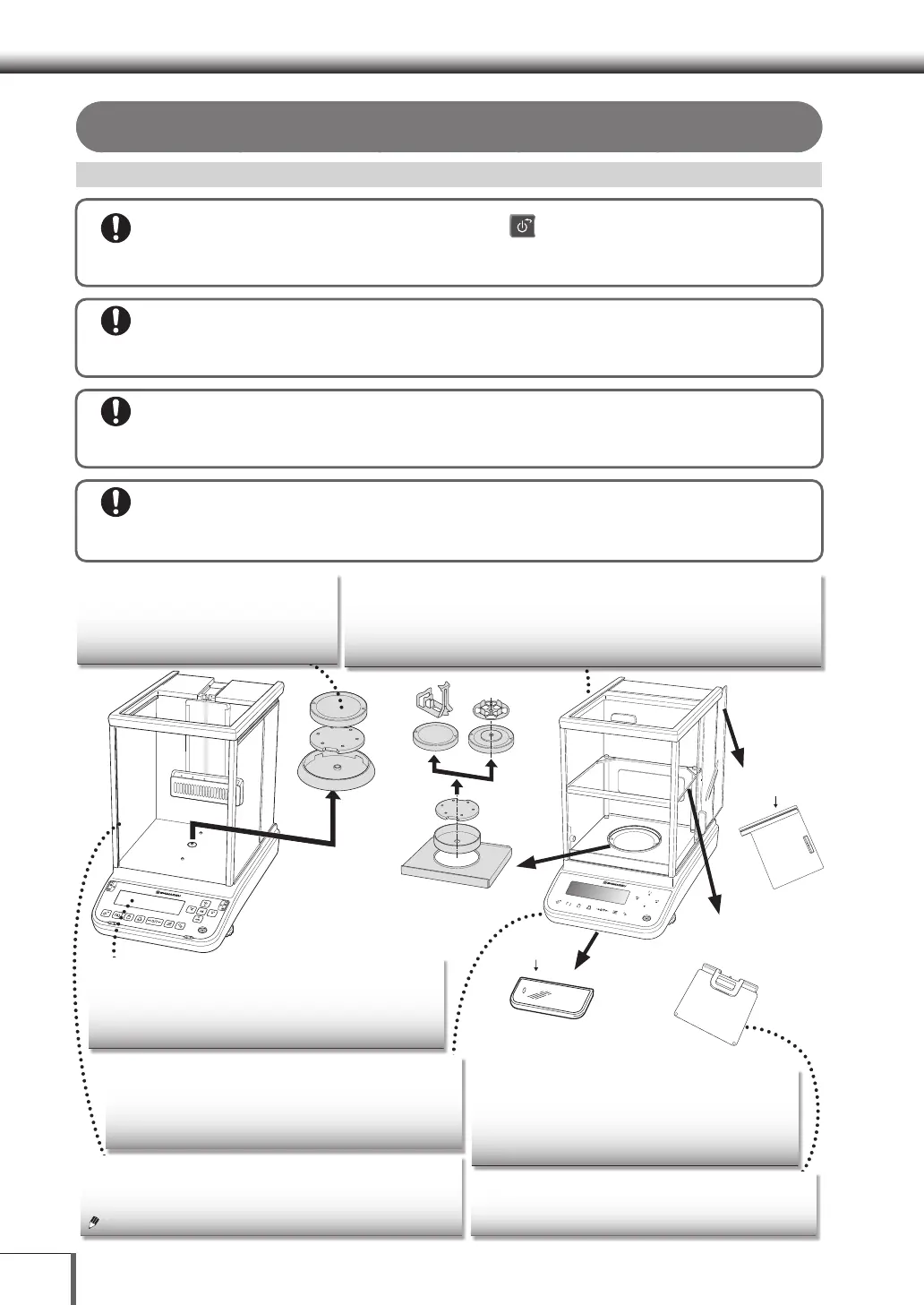

Glass doors (W-AD Series)
Can be removed and wiped clean or replaced.
^ [Parts attachment (W-AD Series)] (P.18)
! Caution Do not wipe the gear sections of the glass
doors, doing so could cause damage.
POWER
ION
ALARM
Protective
cover
Adjustable
Windbreak Plate
POWER
ION
ALARM
Pan
When cleaning the pan, be sure remove it
from the body. The pan can be washed with
water. In that case, dry it thoroughly before
fitting it back on the balance.
Main Balance Unit
Soak a soft cloth with a neutral detergent, wring the cloth out thoroughly, and then wipe the
balance. When cleaning the inside of the weighing chamber, always remove the pan, the pan
supporter, the shield plate, the inner draft shield plate (option), the Adjustable Windbreak Plate
(for W-AD series sem-micro models only), the stage, the shield case and the multi-stand.
Adjustable Windbreak Plate (for W-AD series semi · micro models only)
Can be removed and wiped clean or replaced.
^ [Parts attachment (W-AD Series)] (P.18)
Display / Operation Keys
Do not use organic solvent and pharmaceutical detergents or
chemical cloths. Failure to observe this may result in damage to
the coating or display panel. Use a protection cover if using the
balance in an environment where it will be readily subject to soiling.
Protective cover
Can be removed and wiped clean.
If the protective cover touchless sensor is dirty, it will
decrease sensor sensitivity, and could result in malfunctions,
so wipe it clean or replace it so that it is not dirty.
Gear sections of
the glass doors
Glass Draft Shield
Remove the glass draft shield to clean the door rails and replace the shield.
^ [Removing the Glass Draft Shield] (P.156)
Precautions
The W-AD Series door rails cannot be detached.
* Main body shape, etc. will differ depending on the product model.
