4 Key Operations
4.1 Key operation of FPD
38 FPD-2010

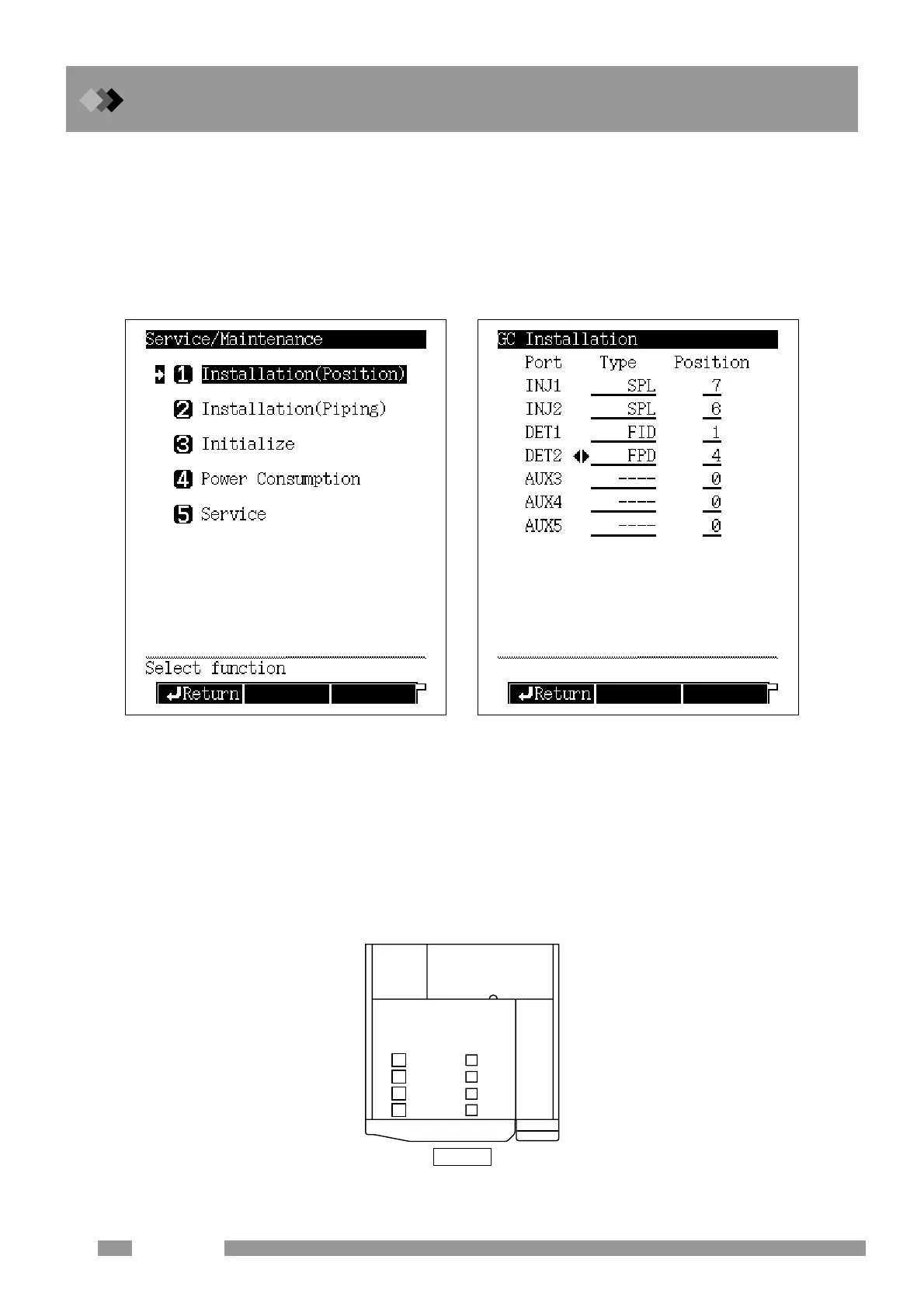

4.1.1.4 Checking the installation state setting (This section is described for confirmation. Setting is
normally made at installation.)
Pressing the [FUNC] key and selecting “7. Service/Maintenance” in the screen that appears
displays the sub-screen shown in the figures.
1. Installation (position)
Pressing the numerical key [1] or using the cursor key (up/down), place the cursor on "1.
Installation (position)" and press the [ENTER] key.
Fig. 4.1.2
1) Confirm that FPD is recognized.
When FPD is not displayed, control unit may not be installed correctly or a failure may have occurred.
2) Confirm that the installation position of the unit is set correctly.
3) When changing, move the cursor to the applicable column using the cursor keys (up/down),
input numerical values, and press the [ENTER] key.
The relation between the installation position and the number is as follows:
(0 = Not installed, 9 = Installed at the position other than those in the figure.)
Top view
8
7
6
4
3
2
1
Fig. 4.1.3
To Next Page
