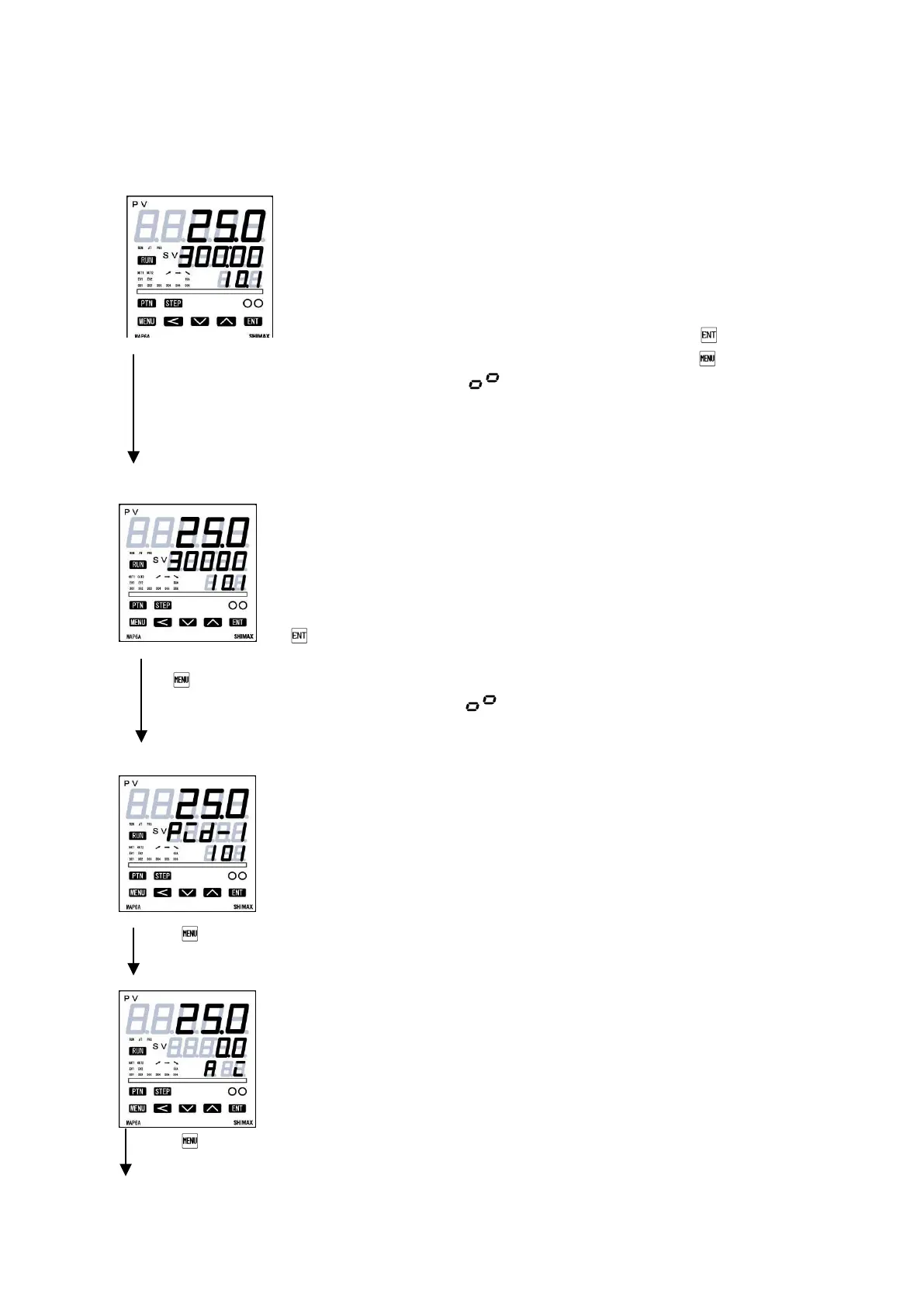

Program step time period Display screen
Display Range : 000:00 – 3000:00 or ∞ (infinity)
Upper Display: PV value
Middle Display: Time remain
Lower Display: Pattern No, & Step No,
Displays while program is in operation.
On-going step № and the remaining repeating time of pattern are displayed
A remaining time and an elapsed time is switchable by pressing the key for 3 seconds.
(Switchover is interlocked with the number of times of next screen pattern.)
In ∞ setting, remain time are displayed.
This screen is not displayed Program ＲST and FIX neither.
Program repeating time of pattern
Display range : 0 -30000 or ∞
Upper Display: PV value
Middle Display: Number of reputation time
Lower Display: Pattern No, & Step No,
On-going step № and the remaining repeating time of pattern are displayed.
A remaining time and actually performed times are switchable by pressing the
key for 3 seconds. (Switchover is interlocked with front screen step time.)
The decimal point of the minimum digit lights up when actually performed times
PID monitor screen
being displayed.
In ∞ setting, step № and are displayed
This screen is not displayed Program ＲST and FIX neither.
Display range : PID1 – PID8
PID № is displayed when FIX is in operation.
PID № chosen at each step and on-going step № are displayed by turns when PROG.
No displayed in the state of STBY (RST). No
display at FIX mode.
External analogue input (AI) monitor screen.
External Analogue input Value which selected at Mode10 is displayed.
This screen is not displayed without an AI option and status Non at Mode 10.
