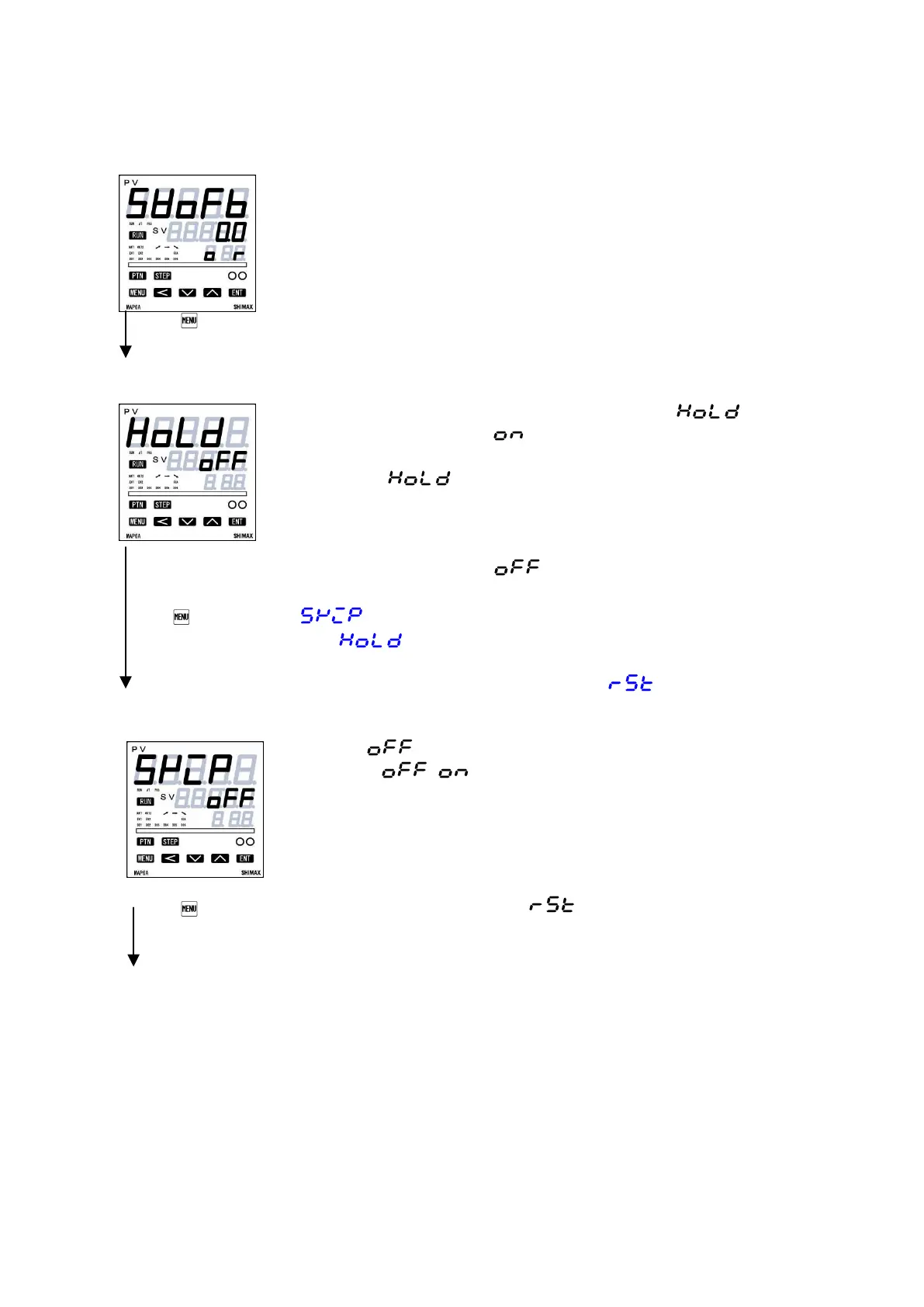

Servo output position monitor screen
Display range 0.0 - 100.0 %
Servo output position is displayed.
This screen is not displayed without Servo output option and feedback input.
Hold execution screen
While HOLD is executed, on the basic screen, SV value and is
displayed by turns. If switched while PROG is in operation, the operation
temporary stops with as of then step time and SV value. While HOLD is in execution,
SV value and is displayed by turns in basic screen.
HOLD is used in order to perform AT in the middle of an inclination step or to
compensate the insufficient time of flat step.
Controls is performed with SV value at the time of stopping, while HOLD is in
execution HOLD is canceled if is chosen while HOLD is in execution. The
remaining time of the step is performed based on a program.
(skip) is unable to perform while HOLD is in execution
When is allotted to DI, DI is given priority.
Execution and release of HOLD with key operation is unable to perform.
This screen is not displayed the state of program and FIX neither.
Skip execution screen
Initial value：
Setting range： 、
SKIP (skip) is the function that makes to end the on-going step compulsorily, and is
to shift to the following step. The next step starts instantly, if performed.
When SKIP is continuously performed, about 1 second interval is required from
execution to the next one.
Even if SKIP is allotted to DI, execution is able to perform with DI and key operation.
Not displayed in the state of program and FIX neither.
