Shimax MAC6A User Manual

25

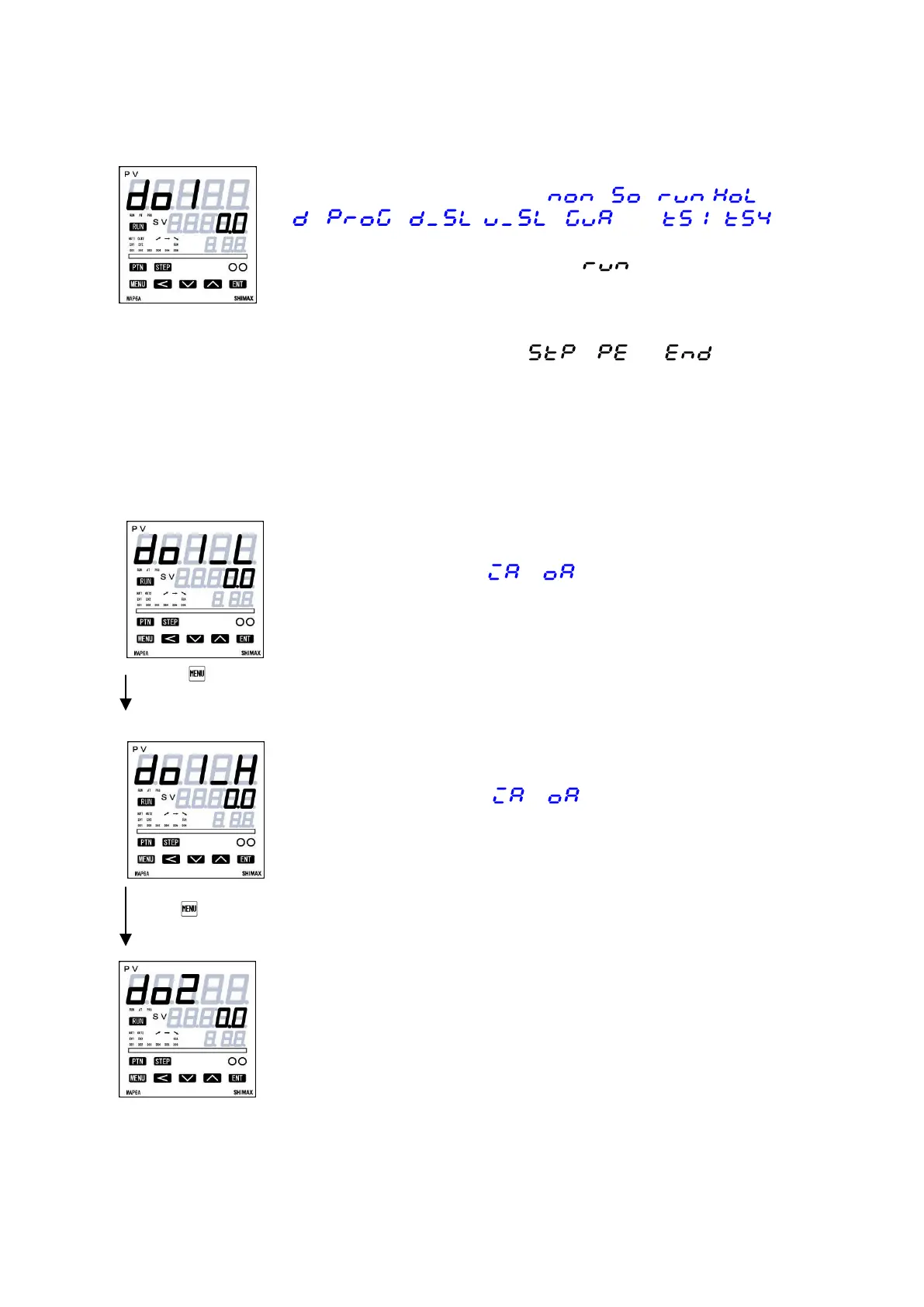

External operation output (DO)Setting screen
The operating point of the alarm allotted to DO1 is set up.
No display when no DO option installed,
and ～
are allotted to DO1.
The operation mode of each deviation alarm is effective at the time of
automatic output.
Each deviation alarm serves as PV’s deviation to Execution SV. Event
operation other than each deviation alarm is always effective.
In case of -100.0 to -0.1 set at ,and ,EV will be
activated before the time set to the End.
(When -10.0 sec set, EV will be activated 10.0 sec before 10.0sec to the End,
when 10.0 sec set EV will be activated 10.0 sec from the End, In case of 0 sec set
no signal will be activated even if allotted)
DO1 lower operating point setting screen
Initial value : minimum value of setting range
Setting range : within measuring range
Display when DO1 allotted to or
DO1 upper operating point setting screen
Initial value : Maximum value of setting range
Setting range : within measuring range
Display when DO1 allotted to or
DO2 – DO 6 details are same as DO1
No display when no DO option installed.
